Set up and test-sewn on your material

SEWPRO

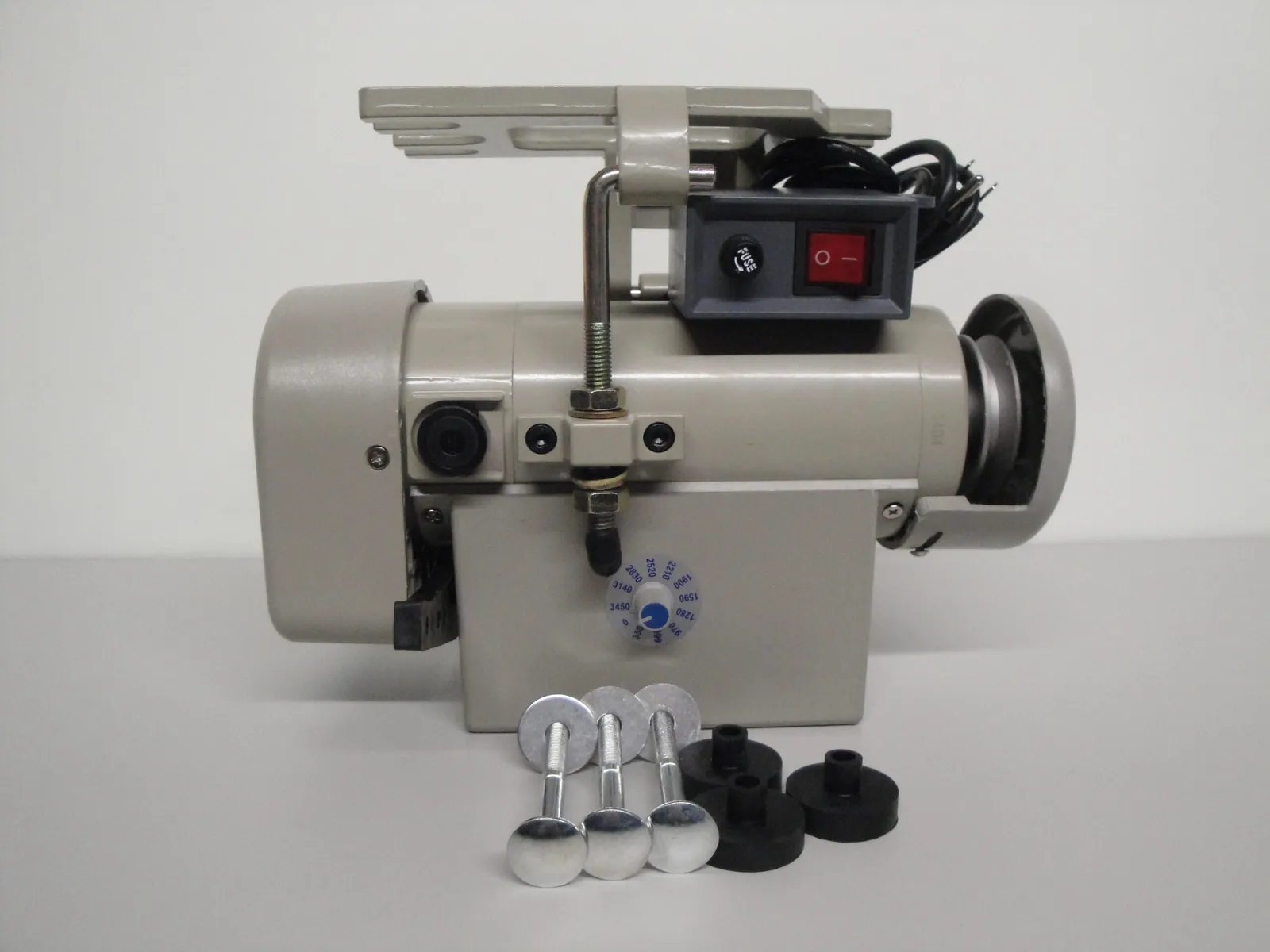

SEWPRO 550A servo motors and parts industrial sewing machine
Servo motors and partsSKU 150

SEWPRO 550A

Energy-saving servo motor, 550W, 0 to 3600 RPM

A 550W energy-saving servo motor with a speed dial from 0 to 3,600 RPM, the replacement for a clutch motor on most industrial heads.

5.0 on Google from 10 reviews of SEWPRO

  • Max speed0 to 3,600 RPM, dial adjustable
  • Power550W

Price

Quote on request

Quoted with the pulley, belt and mounting hardware for your head; installed on request.

Request a quote (717) 940-0129
  • Set up and tested for your first job before it ships
  • 1 year warranty on parts and workmanship
  • Delivered in PA and nearby, freight nationwide
  • Phone and text support from the people who sold it

About the 550A

The 550A is the general-purpose servo motor we fit under most medium-duty heads and sell to replace noisy clutch motors on machines of any brand. It draws power only when the pedal is down, it is quiet, and the speed dial lets the operator set a top speed from 0 to 3,600 RPM so a learner on a walking foot can crawl and a production operator on a flatbed can run. A switch reverses rotation for heads that turn the other way.

It mounts on the standard industrial table motor plate and uses the standard belt. We supply the pulley to match your head.

Technical data: SEWPRO 550A

Specifications

Voltage and pulley are matched to your table and head when you order.

Power550W
Speed Range0 to 3,600 RPM, dial adjustable
RotationForward or reverse, switchable
Voltage110V single phase
MountingStandard industrial table motor plate

Included in a SEWPRO quote

  • The unit with the accessories listed above
  • Set up for your first job before it ships
  • Delivery in PA and nearby, freight elsewhere
  • 1 year warranty, phone support

Features

What it does

  • Energy EfficiencySave on electricity costs with the energy-saving design of the SEWPRO Model 550A.
  • Variable Speed ControlEasily adjust the speed from 0-3600 RPM with the intuitive dial for complete control over your sewing projects.
  • Quiet OperationEnjoy a peaceful sewing experience thanks to the motor's quiet operation.
  • Heavy-Duty PerformanceThis 550W motor powers through thick fabrics and multiple layers with ease.
  • Bi-Directional RotationSwitch between forward and reverse sewing with a simple switch.

Compare

550A against the alternatives

The models we would put next to it on the phone, and why.

ModelSEWPRO 550AThis machineSEWPRO SP-1100 NPFLNeedle positioning servo motor with optional automatic foot lift
Foot liftOn request24VDC
Max speed0 to 3,600 RPM, dial adjustable100-2500 RPM

Questions about the 550A

Will it fit my machine?

Any head on a standard industrial table with a belt drive. Tell us the model and we send the right pulley.

Does it have needle positioning?

No. For needle-up and needle-down stops and an automatic foot lift, the SP-1100 NPFL.

Is it strong enough for a 441?

With a speed reducer, yes. On the heaviest heads we prefer the 1100W SP-1100 for the extra torque.

Request a quote

SEWPRO 550A

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 550A fits or point you to the model that does, then quote it complete with a delivery date.

SEWPRO 550A

Energy-saving servo motor, 550W, 0 to 3600 RPM

(717) 940-0129Monday to Friday, 7am to 5pm. Showroom visits by appointment.

Request concerns the SEWPRO 550A. Tell us what you sew and we will confirm it is the right machine, quote it complete with table and servo motor, and give you a delivery date.

Answered within one business day. No mailing list.
