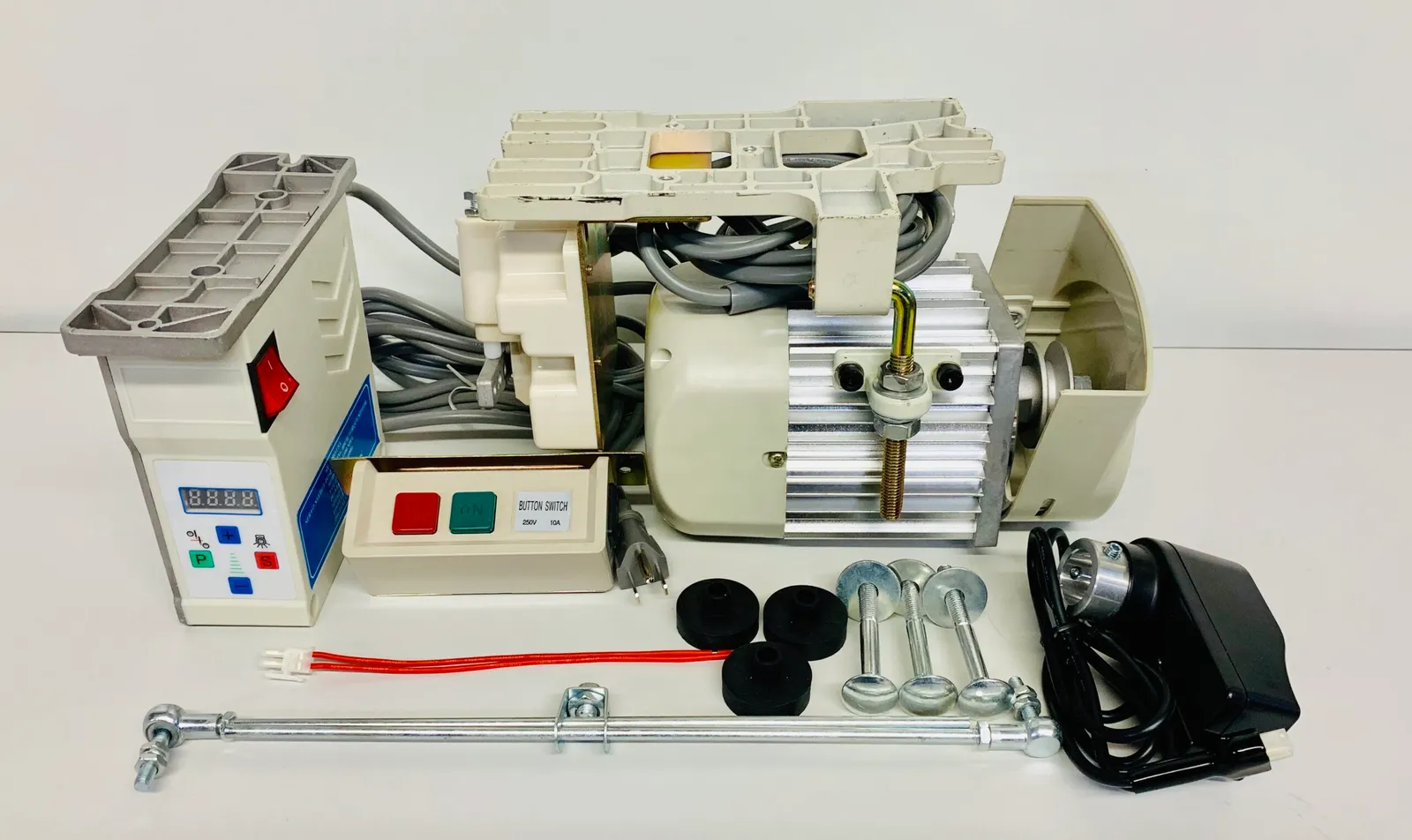

SEWPRO SP-1100 NPFL

Needle positioning servo motor with optional automatic foot lift

An 1100W needle positioning servo with optional automatic foot lift, for heavy heads and shops that want needle-down stops.

5.0 on Google from 10 reviews of SEWPRO

Foot lift24VDC
Max speed100-2500 RPM
Power1100W

Materials

Leather
Canvas
Upholstery fabric

Price

Quote on request

Quoted with the pulley, belt and mounting hardware for your head; installed on request.

Request a quote (717) 940-0129

Set up and tested for your first job before it ships
1 year warranty on parts and workmanship
Delivered in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the SP-1100 NPFL

The SP-1100 NPFL is the servo we fit under the heavy heads: the 441 class, the 204 and 243 class machines, the long arms. It gives 1100W of torque, a speed range from 100 to 2,500 RPM, needle positioning so the needle stops up or down on command, and a 24V output for the optional automatic foot lift from the pedal. The digital control sets the top speed and the stop position.

The needle positioner is the feature operators notice most: every stop leaves the needle in the material, so the piece can pivot on a corner without losing its place. We show the SP-800NP, the smaller needle positioning servo, on video.

Also available: SEWPRO SP-800NP needle positioning servo motor, on video.

Technical data: SEWPRO SP-1100 NPFL

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Voltage	110V, 60Hz
Power	1100W
Speed	100-2500 RPM
Foot lift output	24VDC

Included in a SEWPRO quote

The unit with the accessories listed above
Set up for your first job before it ships
Delivery in PA and nearby, freight elsewhere
1 year warranty, phone support

Industries

Features

What it does

High TorqueTackle the toughest materials with ease! The SP-1100 NPFL boasts incredible torque for sewing through thick layers of leather, upholstery fabric, canvas, and more.
Adjustable SpeedsTailor the motor's speed to your project's needs. Set a very low starting speed while maintaining torque for intricate work, or ramp up the speed for production sewing.
Needle PositioningSimplify your workflow with precise needle positioning. Set the needle to stop up or down for effortless pivoting and material adjustment.
Optional Automatic Foot LiftStreamline your sewing process with the optional automatic foot lift, controlled by a convenient foot pedal.

Applications

What the SP-1100 NPFL is used for

Leatherworking
Upholstery
Canvas and sailmaking
Manufacturing requiring heavy-duty sewing

Compare

SP-1100 NPFL against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 550A
550W general-purpose servo without positioning.

Model	SEWPRO SP-1100 NPFLThis machine	SEWPRO 550AEnergy-saving servo motor, 550W, 0 to 3600 RPM
Foot lift	24VDC	On request
Max speed	100-2500 RPM	0 to 3,600 RPM, dial adjustable

Questions about the SP-1100 NPFL

What does NPFL stand for?

Needle positioning, foot lift. The positioner is standard; the foot lift solenoid is optional.

Can it drive a 441 without a reducer?

It has the torque, but a reducer is still the right way to get one stitch per second on heavy leather. We fit both.
