8 models
Programmable pattern sewing machines
Load the part, press the pedal, get the same stitch pattern every time.
A programmable pattern sewer clamps the part and moves it under the needle along a stored path. The operator loads the piece and presses the pedal. Box-X stitches on tie-down straps, bartacks on harness, labels on bags, diamond quilting on a seat panel: each one comes out identical, at two to three thousand stitches a minute, from a machine that never gets tired or distracted.
Our heavy-duty pattern sewers are built for webbing, leather and layered vinyl rather than garments. Fields run from the 30x40mm bartacker up to the 2600-3020 and PSM-5020CH with 500x200mm and larger clamps. Every machine ships with your first patterns programmed and the clamp made for your part.
Choose this type when
- You sew the same stitch pattern hundreds of times a day: Box-X, W, bartacks, labels, logos.
- Your parts are heavy webbing, slings, harness, lifting straps or leather that has to be sewn to a spec.
- You want to take a skilled operator off a repetitive job and put them on work that needs judgment.
Typically made on it
- Ratchet and cam tie-down straps
- Lifting slings and cargo nets
- Safety harness and fall protection
- Labels, logos and badges
- Seat panel quilting and diamond stitch
Programmable pattern sewers
All 8 models
Sorted by model number. Call if the one you have in mind is not listed; the range changes faster than a website.
SEWPRO 1900B
Heavy-Weight Programmable Pattern Sewing Machine
- Field 30mm (L) × 40mm (W)
- Stitch 0.1mm-10mm (0.1 Step)
SEWPRO 210E-1306
Programmable Pattern Sewing Machine (130x60mm) with CP520 Control
- Field 130x60mm
- Stitch 0.5-12.5mm

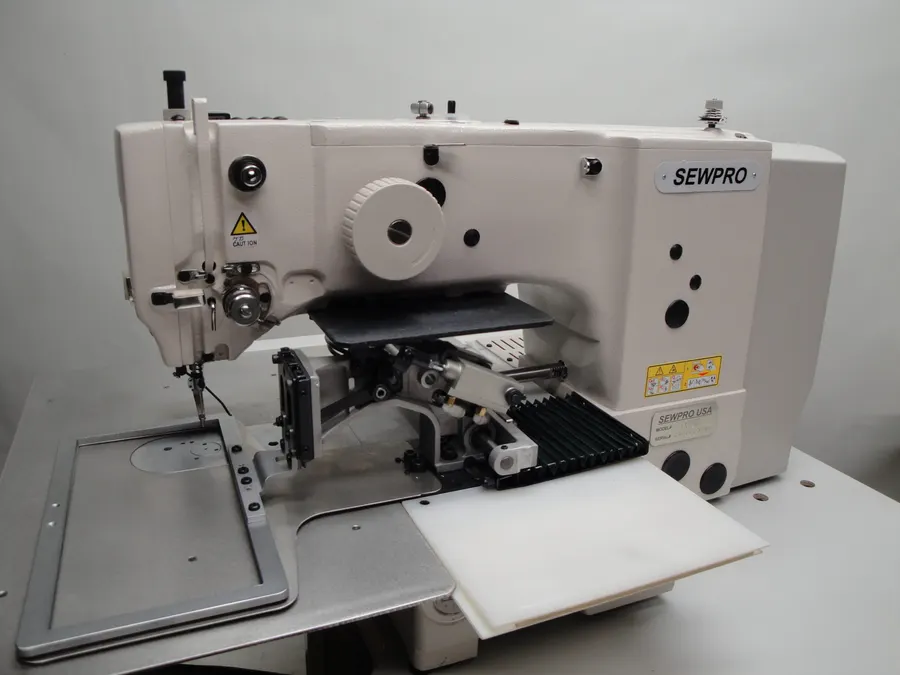

SEWPRO 210E-2210
Programmable Pattern Sewing Machine with 220×100mm Area
- Field 220×100mm
- Stitch 0.1-12.5mm

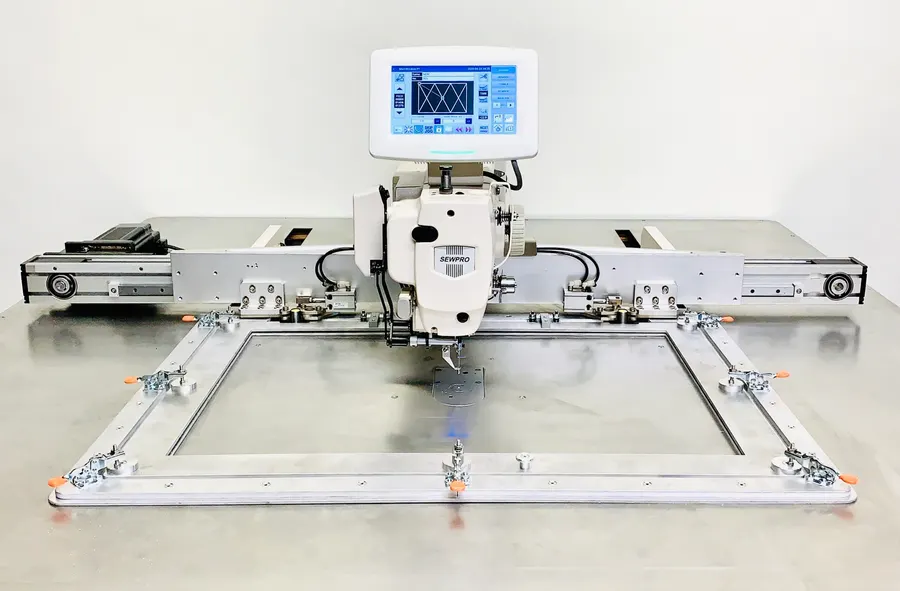

SEWPRO 224E-6040
Large-Area Programmable Pattern Sewing Machine
- Field 600×400mm
- Stitch 0.5-12.5mm

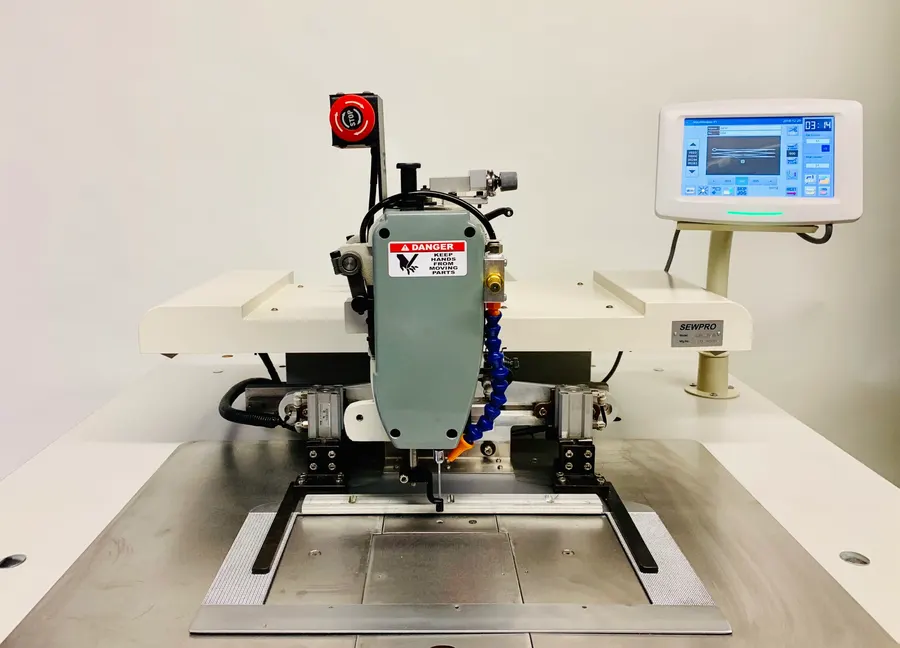

SEWPRO 2600-3020
Heavy-Duty Programmable Sewing Machine for Webbing
- Stitch 12mm
- Lift Pneumatic
SEWPRO PSM-1306CH
Extra Heavy-Duty Programmable Sewing Machine (130x60mm)
- Lift Pneumatic
- Thread 138-415

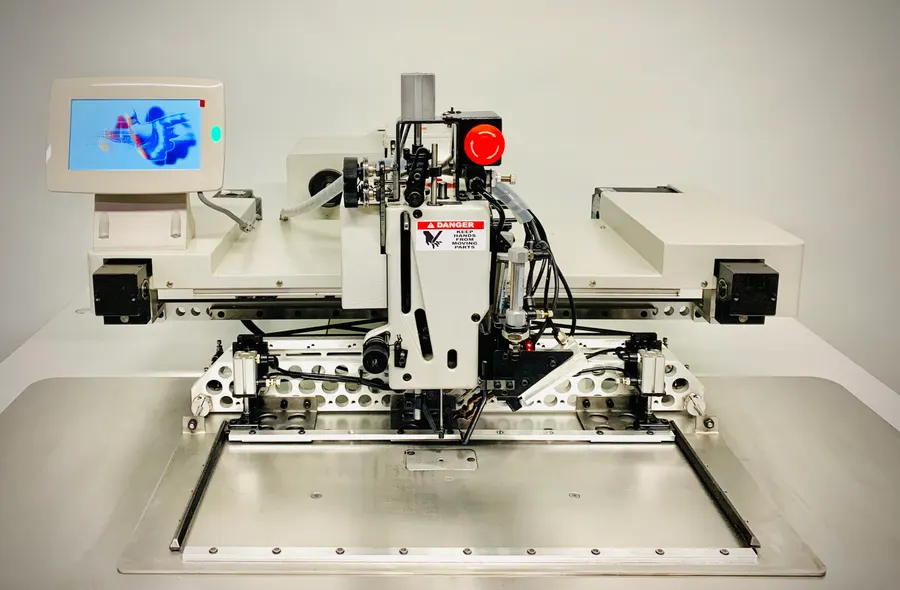

SEWPRO PSM-5020CH
500x200mm Extra Heavy-Duty Programmable Sewing Machine
- Lift Pneumatic
- Thread 138-415

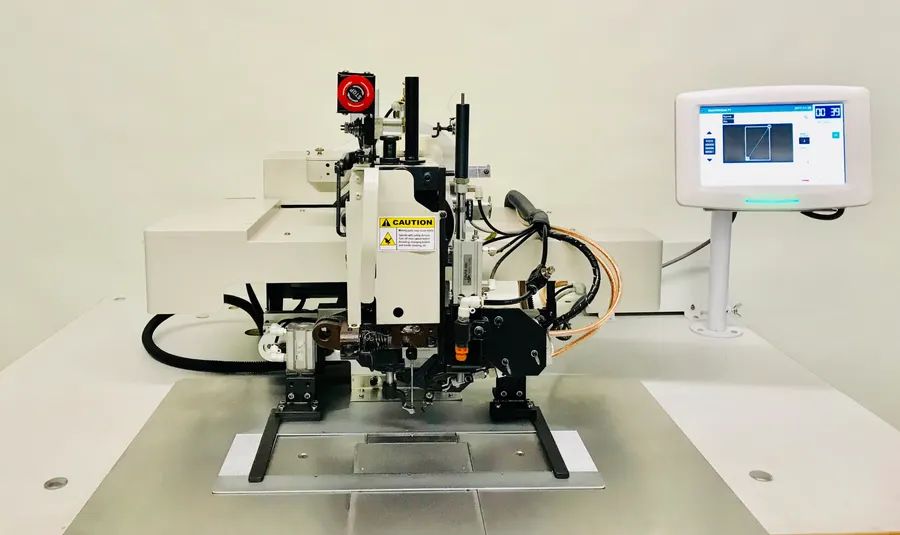

SEWPRO PSM-733-3020
Extra Heavy-Duty Programmable Sewing Machine
- Stitch 12mm
- Lift Pneumatic
Videos
Programmable pattern sewers machines in operation
Frequently asked questions
Who writes the patterns?
We do, before delivery, from your sample or drawing. You can edit patterns on the controller or on a PC and load new ones by USB. We also train your operator on the day we install.
How thick can a pattern sewer sew?
The heavy-duty models sew two layers of 2 inch seatbelt webbing or 10mm of leather with 207 to 346 thread. Tell us the stack and the thread and we will match the machine.
Get in touch
Request a quote for a programmable pattern sewers machine
Describe the material, the thread and the product. You will get one machine recommended, a price for the complete setup with table and servo motor, and a delivery date. Quotes come from Sergey, not a call center.
- Phone and text
- (717) 940-0129
- sewprousa@gmail.com
- Visit
- 333 Railroad Ave, Ephrata, PA 17522
Monday to Friday, 7am to 5pm. Showroom visits by appointment.
