SEWPRO AK-20 strap cutting machines industrial sewing machine
Strap cutting machinesSKU 152

SEWPRO AK-20

Strap cutting machine, 14" cutting width

A production strap cutter: 14 inches wide, up to 3/8 inch thick, multiple straps per pass with a spacer set included.

5.0 on Google from 10 reviews of SEWPRO

  • Cutting width14"
  • Max thickness3/8"

Materials

  • Leather
  • Vinyl
  • Webbing
  • Rubber-coated fabric

Price

Quote on request

Quoted with the blades and spacers listed, set up for your first strap width.

Request a quote (717) 940-0129
  • Set up and tested for your first job before it ships
  • 1 year warranty on parts and workmanship
  • Delivered in PA and nearby, freight nationwide
  • Phone and text support from the people who sold it

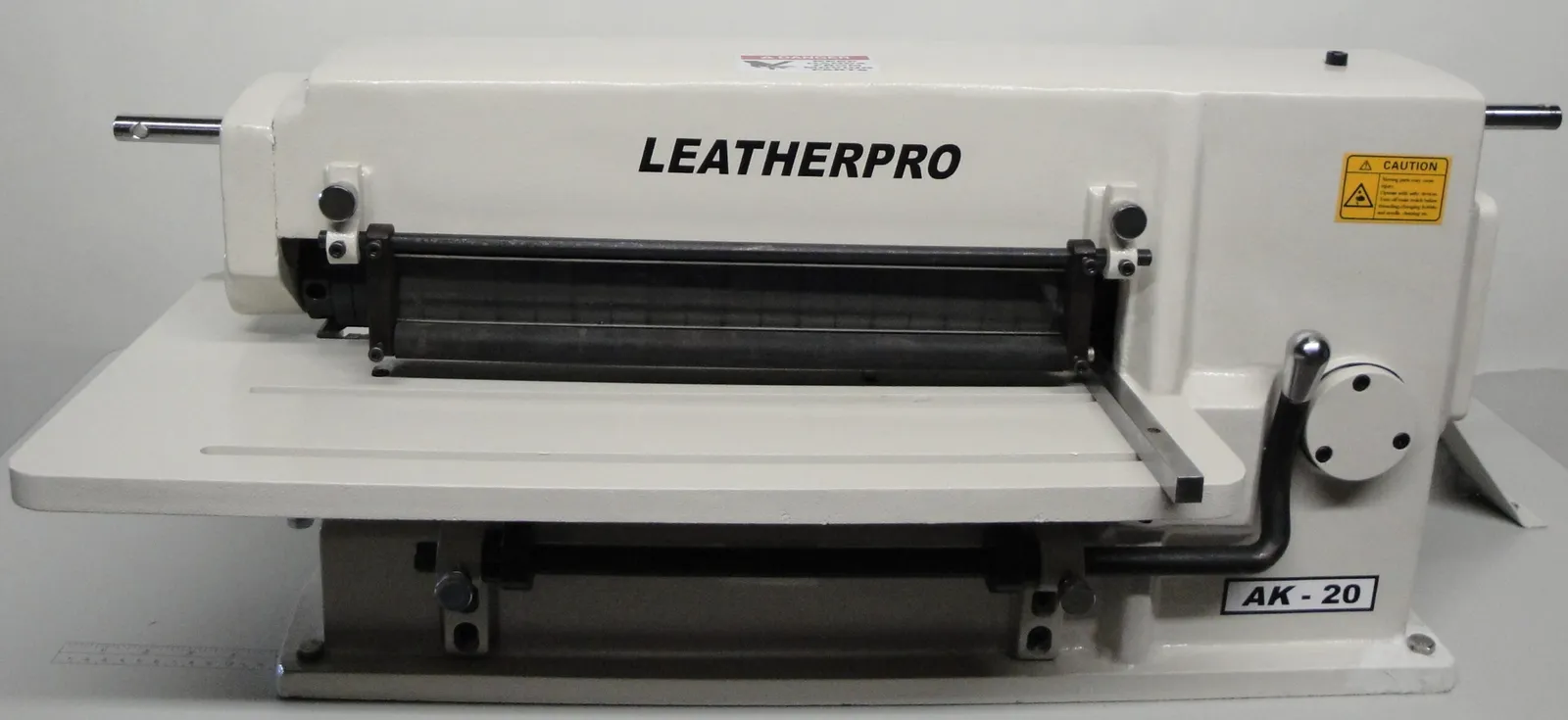

About the AK-20

The AK-20 is a multi-blade strap cutter. Material up to 14 inches wide and 3/8 inch thick feeds between the rollers and comes out the other side as several parallel strips, cut to the widths set by the spacers between the circular knives. The open-ended design lets wider material hang past the end of the roller, so a sheet or a side does not have to be trimmed down before it goes in.

It cuts leather, vinyl, rubber, cardboard, webbing and similar materials, and it ships with eight knives and a full set of spacers so common strap widths can be set up out of the box.

Technical data: SEWPRO AK-20

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine TypeMulti-blade strap cutting machine
Cutting Width14"
Max Thickness3/8"
Knives Included8 x 80mm dia. x 40mm bore x 1mm
Spacers Included10 x 20mm, 10 x 10mm, 12 x 3mm, 12 x 2.5mm, 12 x 2mm
MaterialsLeather, vinyl, rubber, webbing, cardboard

Included in a SEWPRO quote

  • The unit with the accessories listed above
  • Set up for your first job before it ships
  • Delivery in PA and nearby, freight elsewhere
  • 1 year warranty, phone support

Industries

Features

What it does

  • Multiple strips per passSet several knives and cut a whole sheet at once.
  • 14" cutting widthTakes sides, sheets and wide rolls.
  • Open-ended designMaterial wider than the roller can overhang.
  • Up to 3/8" thickHarness leather, sole leather, heavy webbing.
  • Customizable widthsSpacer set covers common strap sizes.

Applications

What the AK-20 is used for

  • Belt and strap blanks from sides
  • Webbing cut-downs for slings and tie-downs
  • Bag straps and handles
  • Reins, headstalls and halter straps
  • Binding and welt strips
  • Rubber and gasket strips

Compare

AK-20 against the alternatives

The models we would put next to it on the phone, and why.

ModelSEWPRO AK-20This machineLEATHERPRO Model 4Heavy-duty leather strap cutting machine
Max speedOn requestFoot Pedal Operated
Arm / post / field14"1/16" to 3¾"

Questions about the AK-20

How many straps per pass?

As many as the knives and spacers you set: up to eight knives across 14 inches.

What spacers are included?

Ten of 20mm, ten of 10mm, twelve each of 3, 2.5 and 2mm, so most widths can be built up.

Request a quote

SEWPRO AK-20

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the AK-20 fits or point you to the model that does, then quote it complete with a delivery date.

SEWPRO AK-20

Strap cutting machine, 14" cutting width

(717) 940-0129Monday to Friday, 7am to 5pm. Showroom visits by appointment.

Request concerns the SEWPRO AK-20. Tell us what you sew and we will confirm it is the right machine, quote it complete with table and servo motor, and give you a delivery date.

Answered within one business day. No mailing list.
