Set up and test-sewn on your material

SEWPRO
Double needleSKU 1151560 class, automated

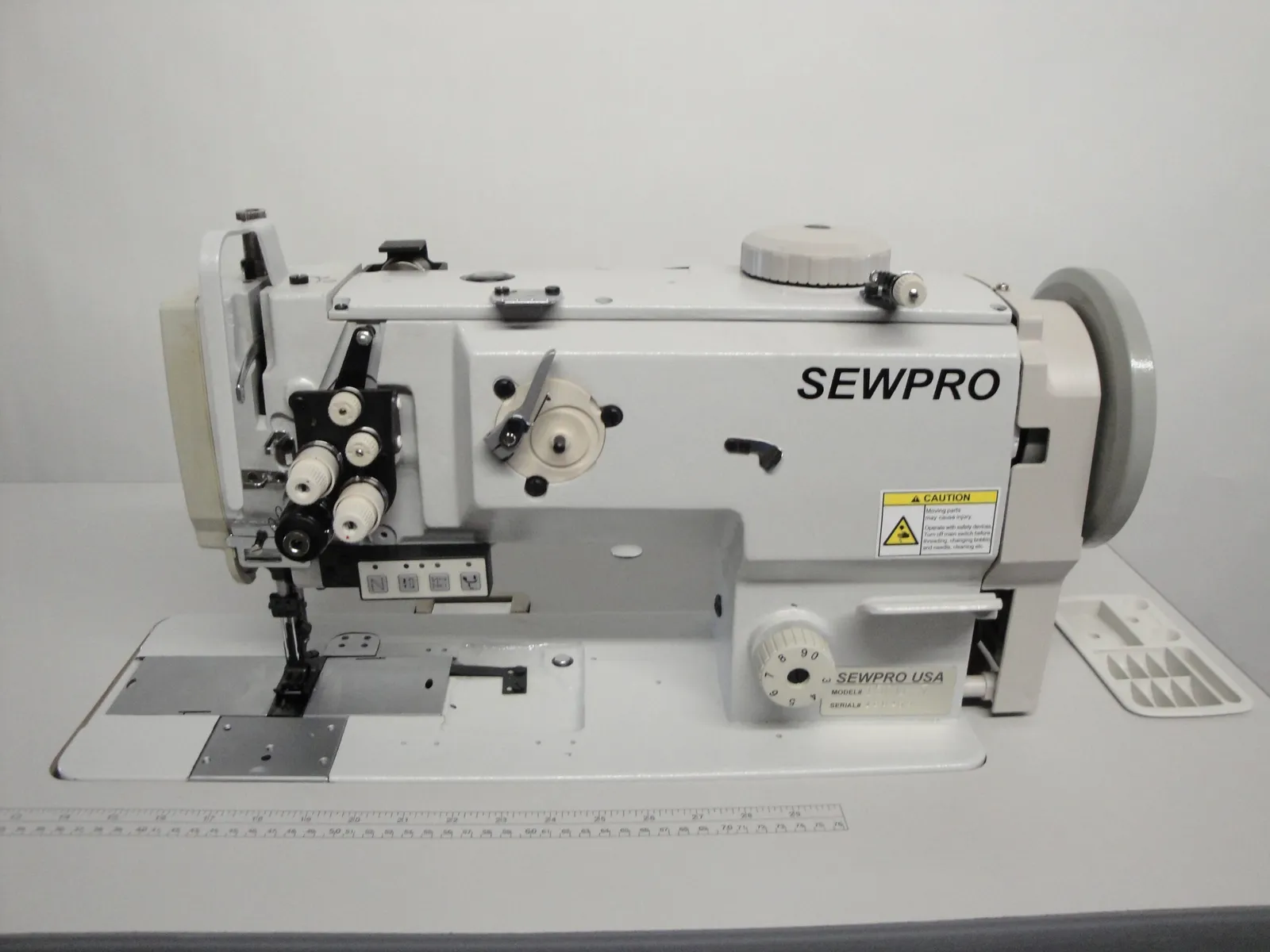

SEWPRO 1560N-7

2-Needle Walking Foot Lockstitch with Full Automation

The double needle walking foot with air foot lift and thread trimmer, for seat and awning production lines.

5.0 on Google from 10 reviews of SEWPRO

  • Stitch length8mm
  • Thread sizes46-138
  • Foot lift16mm
  • Max speed2,000 RPM

Materials

  • Canvas
  • Vinyl
  • Upholstery fabric

Price

Built to your order

Configured for your work and quoted complete. You pay for what your job needs and nothing it doesn't. Why no list price?

  • Set up, timed and test-sewn on your material before delivery
  • 1 year warranty on parts and workmanship
  • Delivered and installed in PA and nearby, freight nationwide
  • Phone and text support from the people who sold it

About the 1560N-7

The 1560N-7 is the 1560N with the automation a production line wants: a 16mm pneumatic foot lift from the pedal and an under-bed thread trimmer, so the operator finishes a French seam, taps the pedal and moves to the next panel with both threads cut. The head keeps the two vertical-axis large hooks, the 8mm stitch, the climbing device and the 46 to 138 thread range.

It is for automotive seat makers, awning plants and furniture factories where one operator runs the double needle all day.

Technical data: SEWPRO 1560N-7

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type2-Needle Walking Foot Unison-Feed Lockstitch
Max Sewing Speed2,000 RPM
Max Stitch Length8mm
Presser Foot Lift16mm (Auto, Requires Air)
Hook TypeVertical-Axis Large Hook
Needle System135×17 (Sizes 110-180)
Thread Sizes46-138
Extra FeaturesThread Under-Trimmer, Climbing Device

Included in a SEWPRO quote

  • Head, table and stand
  • Motor options to suit your work: servo, needle positioner, speed reducer
  • Feet set, folders, clamps or guides for your product
  • A 10-pack of Schmetz needles in the right system, point and size
  • Tested on your material before delivery
  • Delivery and installation in PA and nearby, freight elsewhere
  • 1 year warranty, phone support for the life of the machine
Schmetz

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 180. We stock it in round and leather points in 10-packs, and the first 10-pack goes out with the machine.

Features

What is on the machine

  • Dual Needle SetupIdeal for double seam construction.
  • Walking Foot with Unison FeedEnsures even feeding across multiple layers.
  • Vertical-Axis Large HookSmooth performance with heavy thread.
  • Automation for EfficiencyAuto foot lift and thread trimming for faster workflow.
  • Climbing DeviceMaintains stitch quality over thick joins.

Applications

What gets sewn on the 1560N-7

  • Automotive seat upholstery
  • Marine seating and awnings
  • Furniture upholstery
  • Heavy-duty canvas and vinyl products
  • Parallel seam stitching on industrial fabrics

Compare

1560N-7 against the alternatives

The models we would put next to it on the phone, and why.

ModelSEWPRO 1560N-7This machineSEWPRO 1560N2-Needle Walking Foot Lockstitch for Heavy UpholsterySEWPRO 1760L-18Post-Bed Double Needle Triple Feed Lockstitch Machine
Stitch length8mm8mm9mm
Foot lift16mm (Auto, Requires Air)5/8" (By Knee)14mm (Pneumatic)
Thread sizes46-13846-13846-138
Needle system135×17 (Sizes 110-180)135×17 (Sizes 110-180)135×17 (Sizes 110-160)
Max speed2,000 RPM2,000 RPM1,800 SPM
HookVertical-Axis Large HookVertical-Axis Large HookLarge Vertical-Axis Rotary Hooks
Arm / post / fieldOn requestOn request7"

Questions about the 1560N-7

Does it need air?

Yes, for the 16mm automatic foot lift. A small shop compressor is enough.

Why is there no price for the 1560N-7?

Every SEWPRO machine is built to order. The same head leaves the shop with a different motor, table, feet, folder, binder, clamp or puller depending on what you sew, and we set it up and test-sew it on your material before it is delivered. A list price would do one of two things: include parts you will never use, so you overpay, or leave out the ones your job needs, so the number means nothing. Tell us the material, the thread and the product, and we quote the machine configured for that work. Everything it needs, nothing it doesn't, and the price you see is the price you pay.

Request a quote

SEWPRO 1560N-7

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1560N-7 fits or point you to the model that does, then quote it complete with a delivery date.

SEWPRO 1560N-7

2-Needle Walking Foot Lockstitch with Full Automation

(717) 940-0129Monday to Friday, 7am to 5pm. Showroom visits by appointment.

Request concerns the SEWPRO 1560N-7. Tell us what you sew and we will confirm it is the right machine, quote it complete with table and servo motor, and give you a delivery date.

Answered within one business day. No mailing list.

Call TextGet a quote
