Post bedSKU 129Double needle triple feed post bed, long arm

SEWPRO 1760L-18

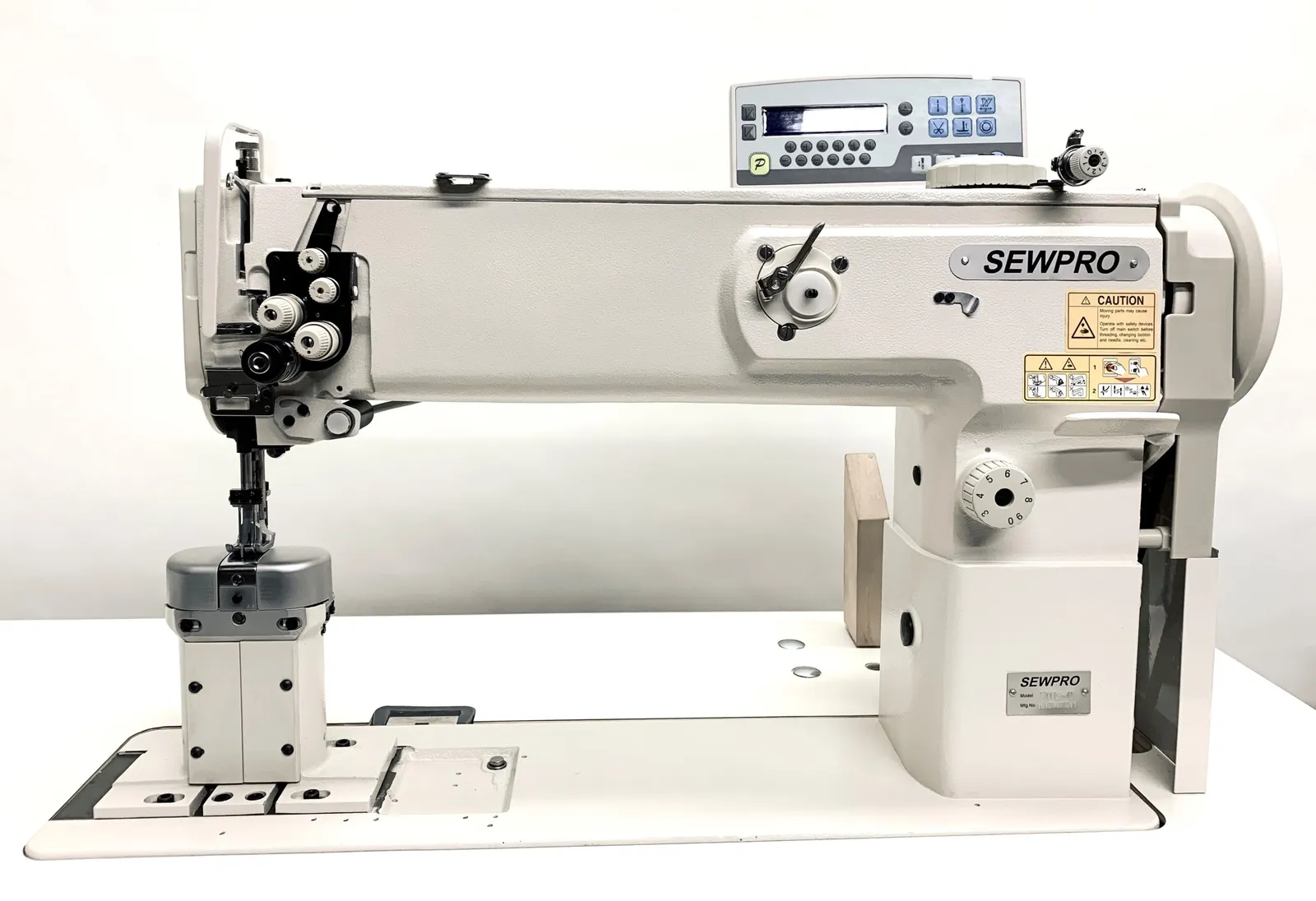

Post-Bed Double Needle Triple Feed Lockstitch Machine

The double needle post bed on an 18 inch arm with the PowerMax servo, for large seat panels and luggage.

5.0 on Google from 10 reviews of SEWPRO

Post height7"
Stitch length9mm
Thread sizes46-138
Foot lift14mm

Materials

Leather
Canvas
Vinyl
Upholstery fabric

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 1760L-18

The 1760L-18 is the 1760 for bigger work. The post sits 18 inches from the arm, so a full seat back, a large bag panel or a luggage shell passes under the needle without being rolled. The head is otherwise the same: two needles in 8, 10 or 12mm gauge, triple unison feed, center guide feet, two large vertical-axis rotary hooks with M bobbins, a 14mm pneumatic foot lift and a safety clutch.

The stitch goes to 9mm on this version, and the motor is the 220V 750W PowerMax servo with needle positioning. We recommend it for automotive and furniture shops that sew whole panels rather than small pieces.

Who buys it

Automotive seat backs and full panels with double topstitch
Furniture: sofa arms, backs and large leather panels
Luggage shells and large bags
Marine seating with parallel rows

Platform and parts

Double needle triple feed post bed, long arm

1760 double needle post bed design with 18 inches between post and arm, two large rotary hooks, 9mm stitch.

Parts: Double needle post bed feet in 8, 10 and 12mm gauges, center guide feet. Needle system 135x17, sizes 110 to 160.

How we deliver it

1PowerMax 220V 750W servo with needle positioning, fitted and set.
2Requires compressed air for the automatic foot lift.
3Extended table for the long arm, drawer, thread stand and lamp.
4Needle gauge set to your seam; center guide feet fitted.
5Threaded with your thread, timed, tension set and a seam sewn on your material before it leaves Ephrata.

Technical data: SEWPRO 1760L-18

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Post-Bed, Double Needle, Triple Unison Feed, Lockstitch
Needle Gauge Options	8mm, 10mm, 12mm
Post Height	7"
Max Sewing Speed	1,800 SPM
Max Stitch Length	9mm
Max Foot Lift	14mm (Pneumatic)
Needle System	135×17 (Sizes 110-160)
Thread Sizes	46-138
Hook Type	Large Vertical-Axis Rotary Hooks
Bobbin Size	M (Large, Pre-Wound)
Power	220V, 750W PowerMax Servo with Needle Positioning
Extra Features	Climbing Device, Reverse Stitch, Safety Clutch

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 160. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Double Needle Post-Bed DesignIdeal for parallel stitching and top-stitching.
Triple Unison FeedEnsures perfect stitch consistency on slippery or layered materials.
Center Guide FeetMaintains even spacing for top-stitch seams.
Large Rotary Hooks & M Size BobbinLonger runs between bobbin changes.
Pneumatic Foot LiftSmooth handling of thick materials.
Safety ClutchPrevents damage to the hook mechanism.

Applications

What gets sewn on the 1760L-18

Automotive upholstery and car seat manufacturing
Furniture and sofa upholstery
Leather handbags and totes
Luggage and travel goods
Vinyl marine seating and covers
Heavy canvas products
Decorative top-stitching on leather panels
Equestrian tack and saddle stitching

Compare

1760L-18 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 1760
Standard arm, 110V, 8mm stitch.
SEWPRO 243H-P2
Extra heavy double needle post bed with barrel shuttle.

Model	SEWPRO 1760L-18This machine	SEWPRO 1760Post-Bed Double Needle Unison Feed Lockstitch Machine	SEWPRO 243H-P2Extra Heavy-Duty Post-Bed Double Needle Sewing Machine
Stitch length	9mm	8mm	12mm
Foot lift	14mm (Pneumatic)	14mm (Pneumatic)	20mm
Thread sizes	46-138	46-138	138-415
Needle system	135×17 (Sizes 110-160)	135×17 (Sizes 110-160)	794 (Sizes 180-250)
Max speed	1,800 SPM	1,800 SPM	600 SPM
Hook	Large Vertical-Axis Rotary Hooks	Large Vertical-Axis Rotary Hooks	Large Barrel Shuttle
Arm / post / field	7"	7"	140mm (5.5")

Questions about the 1760L-18

Why would I need 18 inches on a post bed?

Seat backs and large panels. On a standard post bed the rest of the panel has to be rolled and held; on the long arm it lies to the right of the post.

110V or 220V?

This model is 220V single phase. The standard 1760 is 110V. Tell us what your shop has.

Request a quote

SEWPRO 1760L-18

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1760L-18 fits or point you to the model that does, then quote it complete with a delivery date.
