Cylinder armSKU 101335 class

SEWPRO 335VB

Cylinder-Bed Binding Sewing Machine for Leather and Upholstery

A cylinder arm binder: tape edges on bags, cases, pads and car carpets at 2,000 stitches per minute.

5.0 on Google from 10 reviews of SEWPRO

Stitch length6mm
Thread sizes46-138
Foot lift14mm
Max speed2,000 RPM

Materials

Leather
Upholstery

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

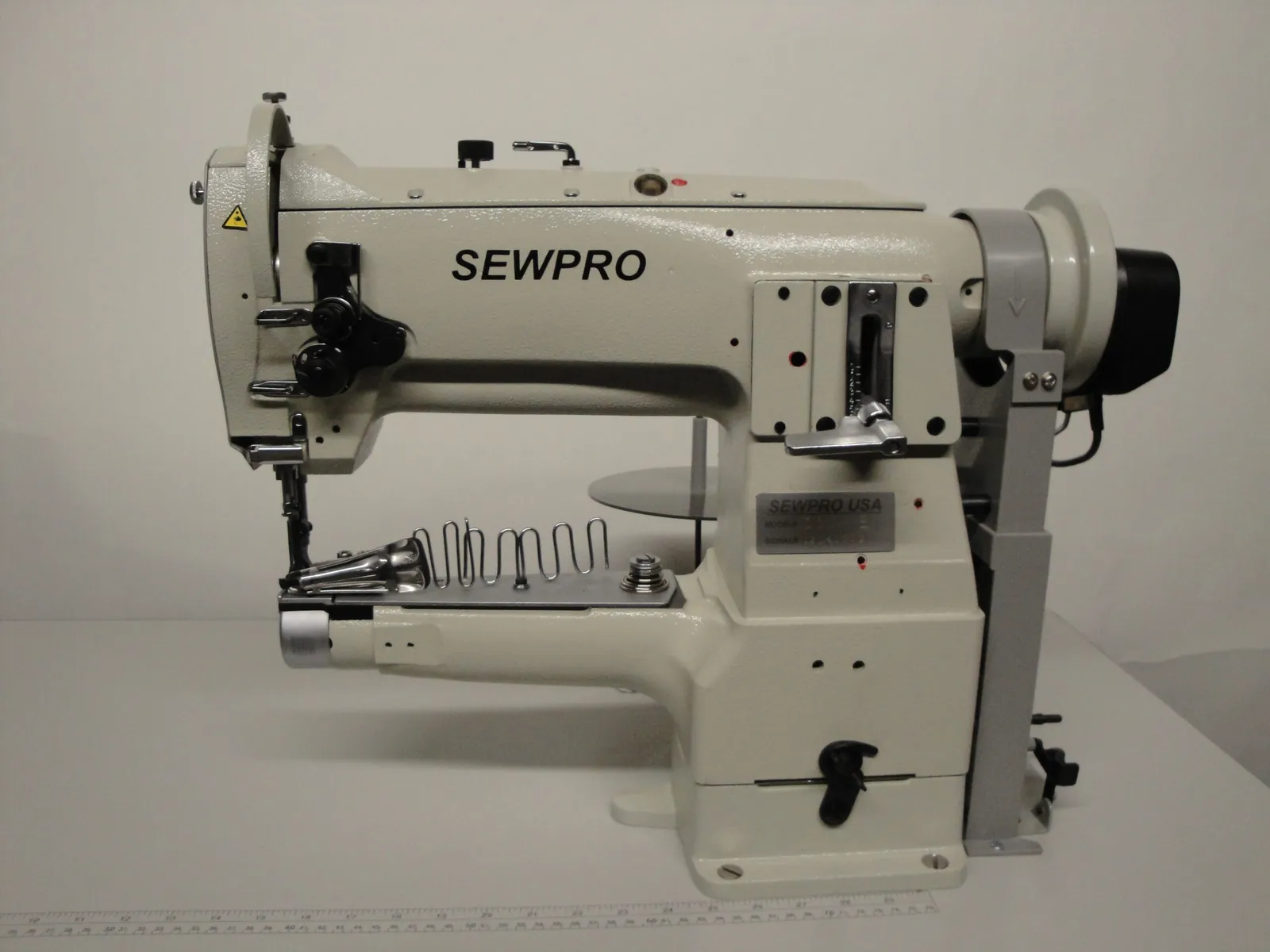

About the 335VB

The 335VB is the 335 class slim cylinder arm set up for binding. A folder on the front of the arm feeds the tape, folds it over the edge of the material and presents it to the needle, so the operator steers the edge and the machine does the rest. Curves on bag flaps, sports pads, carpet edges and case lids come out with an even bind on both sides.

It stitches to 6mm, lifts the foot 14mm, uses an M bobbin and runs thread from 46 to 138 through 135x17 needles. We show the technique on video, binding automotive carpet, and we set the binder for your tape width before delivery.

Technical data: SEWPRO 335VB

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Cylinder-Bed Binding Sewing Machine
Max Sewing Speed	2,000 RPM
Max Stitch Length	6mm
Presser Foot Lift	14mm
Needle System	135×17 (Sizes 110-160)
Thread Sizes	46-138
Bobbin Size	M

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 160. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Cylinder-Bed DesignEasily handles curved and tubular products.
Versatile Binding CapabilityWorks with leather, upholstery, canvas, and more.
High Foot Lift (14mm)Accommodates thicker materials and layers.
M-Size BobbinFewer bobbin changes for longer production runs.
Professional Stitch QualityClean, even binding every time.

Applications

What gets sewn on the 335VB

Leather Goods - Binding edges on bags, belts, wallets, and shoes
Upholstery - Clean finishes on furniture, automotive, and marine interiors
Sports Equipment - Binding on protective gear, sports bags, and cases
Canvas Products - Tents, covers, and outdoor gear
Fashion Accessories - Straps, pouches, and custom leatherwork

Compare

335VB against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 335-GA
Same arm without the binder, for general cylinder arm work.
SEWPRO 1341
Larger cylinder arm that can take a binder attachment.

Model	SEWPRO 335VBThis machine	SEWPRO 335-GACylinder-Bed Unison-Feed Lockstitch for Small Tubular Goods	SEWPRO 1341Cylinder arm walking foot lockstitch, single needle
Stitch length	6mm	6mm	6mm
Foot lift	14mm	16mm (Automatic, Air)	9mm by hand, 16mm by knee
Thread sizes	46-138	46-138	46 to 138
Needle system	135×17 (Sizes 110-160)	134-35 (Sizes 110-180)	135x17, sizes 100 to 180
Max speed	2,000 RPM	2,500 RPM	2,000 stitches per minute
Hook	On request	Horizontal Hook	Vertical-axis hook, large bobbin
Arm / post / field	On request	On request	72mm (2 7/8 inch)

Questions about the 335VB

What tape widths will it take?

Common binders cover 3/4 inch to 2 inch finished widths. Tell us the tape and we fit the right folder.

Can it bind carpet?

Yes. Automotive carpet binding is one of its main jobs and the reason many trim shops own one. See the video.

Request a quote

SEWPRO 335VB

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 335VB fits or point you to the model that does, then quote it complete with a delivery date.
