SEWPRO 441-PRO

441 class cylinder arm walking foot for extra heavy leather

The 441 class: a cylinder arm that sews 3/4 inch of leather with 346 thread, the standard for holsters, saddles and tack.

5.0 on Google from 10 reviews of SEWPRO

Arm length16½" Long × 6¾" High
Stitch length3/8"
Thread sizes138 to 346
Foot lift7/8 inch

Materials

Boots
Canvas
Leather
Medium heavy-weight fabrics
Upholstery

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 441-PRO

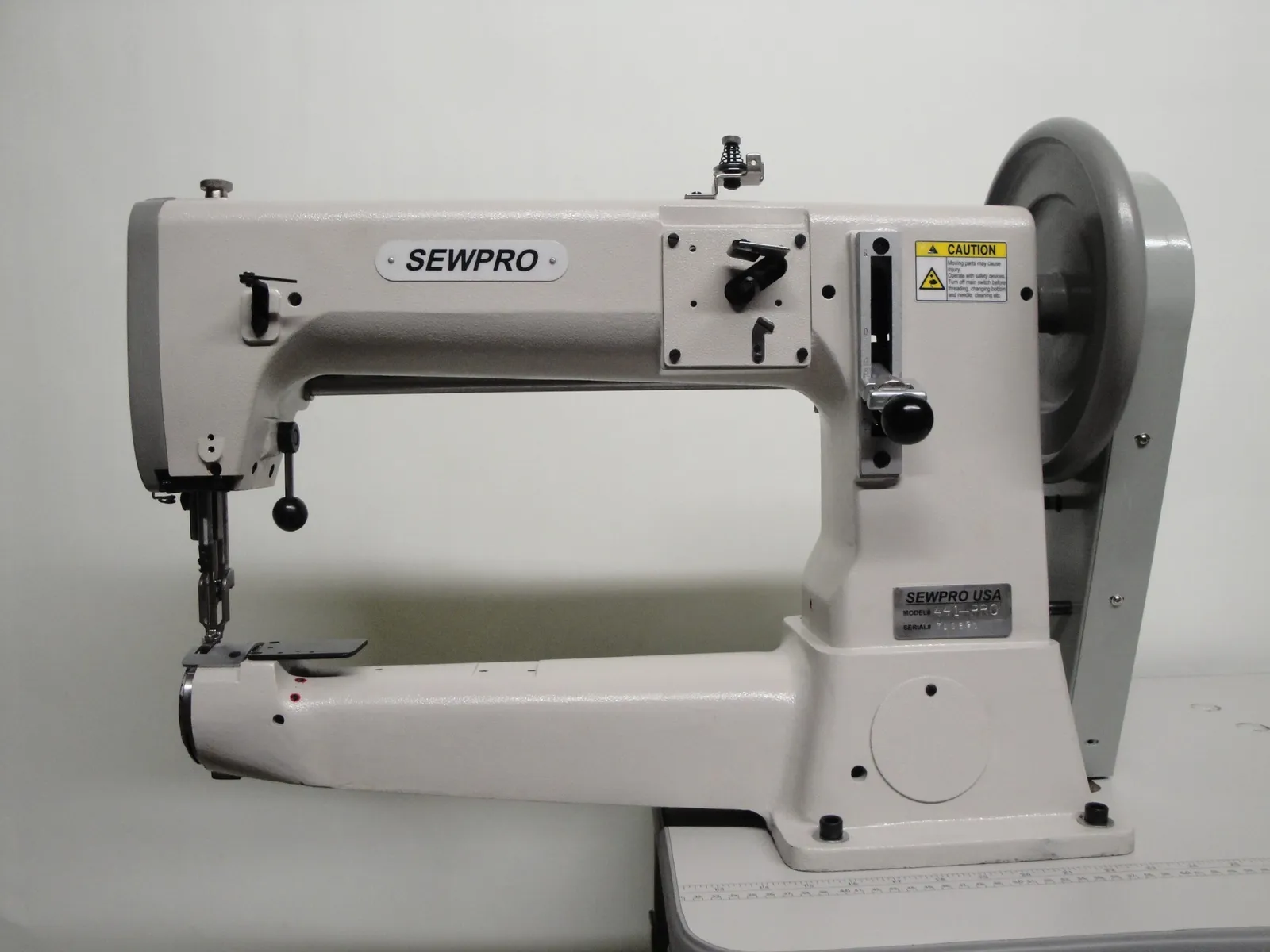

The 441-PRO is our version of the machine the saddlery and holster trade calls simply a 441. It is a cylinder arm, compound needle feed, walking foot lockstitch with a large shuttle hook, a 794 needle and 16.5 inches of working space. It sews a stack of leather three quarters of an inch thick with 277 or 346 thread, and it does it at 800 RPM or at one stitch a second, whichever the work wants.

The harness feet fitted as standard are narrow so the needle gets close to buckles, D-rings and hardware. The 3/8 inch stitch length gives the long, straight saddle stitch look on belts and holsters. The shuttle holds a large bobbin so a saddle skirt does not need a bobbin change halfway.

It is not a fast machine or a light one. For bags and wallets in 4 oz leather a 1341 is the better buy.

Who buys it

Holster, sheath and gun belt makers
Saddle, bridle, harness and tack shops
Heavy belts, dog collars and straps
Webbing and rigging with 277 and 346 thread

Platform and parts

441 class

Follows the Juki TSC-441 design used by every heavy cylinder arm in the trade: large shuttle hook, 794 needle, 3/8 inch stitch, 3/4 inch capacity, 16.5 inch arm.

Parts: 441 class feet, plates, harness feet, bobbins and hooks fit. Needle system 794 (7x3), sizes 140 to 250.

How we deliver it

1Servo motor with needle positioner, sized to the head; a speed reducer on the heavy heads so the operator can sew one stitch at a time. A 3:1 reducer is standard on the 441 class.
2Heavy-duty table with the cylinder cut-out, drawer, thread stand and lamp.
3Harness feet, a stirrup plate, a flat slotted plate and a holster plate; an edge guide and a swing-away table on request.
4Threaded with your thread, timed, tension set and a seam sewn on your material before it leaves Ephrata.

Technical data: SEWPRO 441-PRO

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Cylinder-Bed, Single Needle, Compound Needle Feed, Walking Foot Lockstitch
Cylinder Diameter	3¼"
Working Space	16½" Long × 6¾" High
Max Sewing Speed	800 RPM
Max Stitch Length	3/8" (Approx. 9.5mm)
Hook Type	Large Shuttle Hook
Reverse Stitching	Manual
Application Range	Extra Heavy Materials
Needle System	794 (7x3), sizes 140 to 250
Thread Sizes	138 to 346
Presser Foot Lift	7/8 inch
Sewing Capacity	Up to 3/4 inch of leather

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 794 (7x3), sizes 140 to 250. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Powerful Compound FeedSews the thickest materials without hesitation.
Cylinder-Bed DesignPerfect for tubular and shaped products.
Special Harness FeetImproved access around hardware.
Large Shuttle HookExtended thread capacity for longer runs.
Extra-Long Stitch Option3/8" for decorative or functional seams.

Applications

What gets sewn on the 441-PRO

Leather saddles and harnesses
Heavy-duty belts and straps
Bio-plastic and coated fabric products
Nylon webbing assemblies
Equestrian tack and riding gear
Luggage and travel goods
Outdoor gear and protective covers
Decorative leather panel stitching

Compare

441-PRO against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 441-25
Same head on a 25 inch arm for saddle skirts and large panels.
SEWPRO 205-420
Saddlery cylinder arm with 12mm stitch, 22mm lift and thread to 415.
SEWPRO 1341
Medium-duty cylinder arm for bags and lighter leather.

Model	SEWPRO 441-PROThis machine	SEWPRO 441-2525" long arm 441 class cylinder arm sewing machine	SEWPRO 205-420Extra heavy-duty lockstitch for saddlery, harness and leather	SEWPRO 1341Cylinder arm walking foot lockstitch, single needle
Stitch length	3/8" (Approx. 9.5mm)	3/8" (Approx. 9.5mm)	12mm	6mm
Foot lift	7/8 inch	7/8"	22mm	9mm by hand, 16mm by knee
Thread sizes	138 to 346	138-346	138-415	46 to 138
Needle system	794 (7x3), sizes 140 to 250	794 (Sizes 140-250)	794	135x17, sizes 100 to 180
Max speed	800 RPM	600 RPM	800 RPM	2,000 stitches per minute
Hook	Large Shuttle Hook	Large Capacity Shuttle Hook	Large shuttle hook	Vertical-axis hook, large bobbin
Arm / post / field	16½" Long × 6¾" High	25"	On request	72mm (2 7/8 inch)

Questions about the 441-PRO

Is this the same as a Cowboy or Cobra 441?

Same class, same mechanical design, same needle and feet. We build ours to our specification and we are the people who set it up and service it. Judge by the stitch on your leather: send a sample.

What thread and needle for holsters?

277 thread top and bobbin with a size 200 to 230 leather point needle. For belts, 346 with a 230.

Can it sew thin leather?

With a smaller needle and 138 thread it will, but it is slow and heavy for that. Shops that do both keep a 1341 next to it.

Request a quote

SEWPRO 441-PRO

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 441-PRO fits or point you to the model that does, then quote it complete with a delivery date.
