Cylinder armSKU 1051342 class

SEWPRO 1342-7

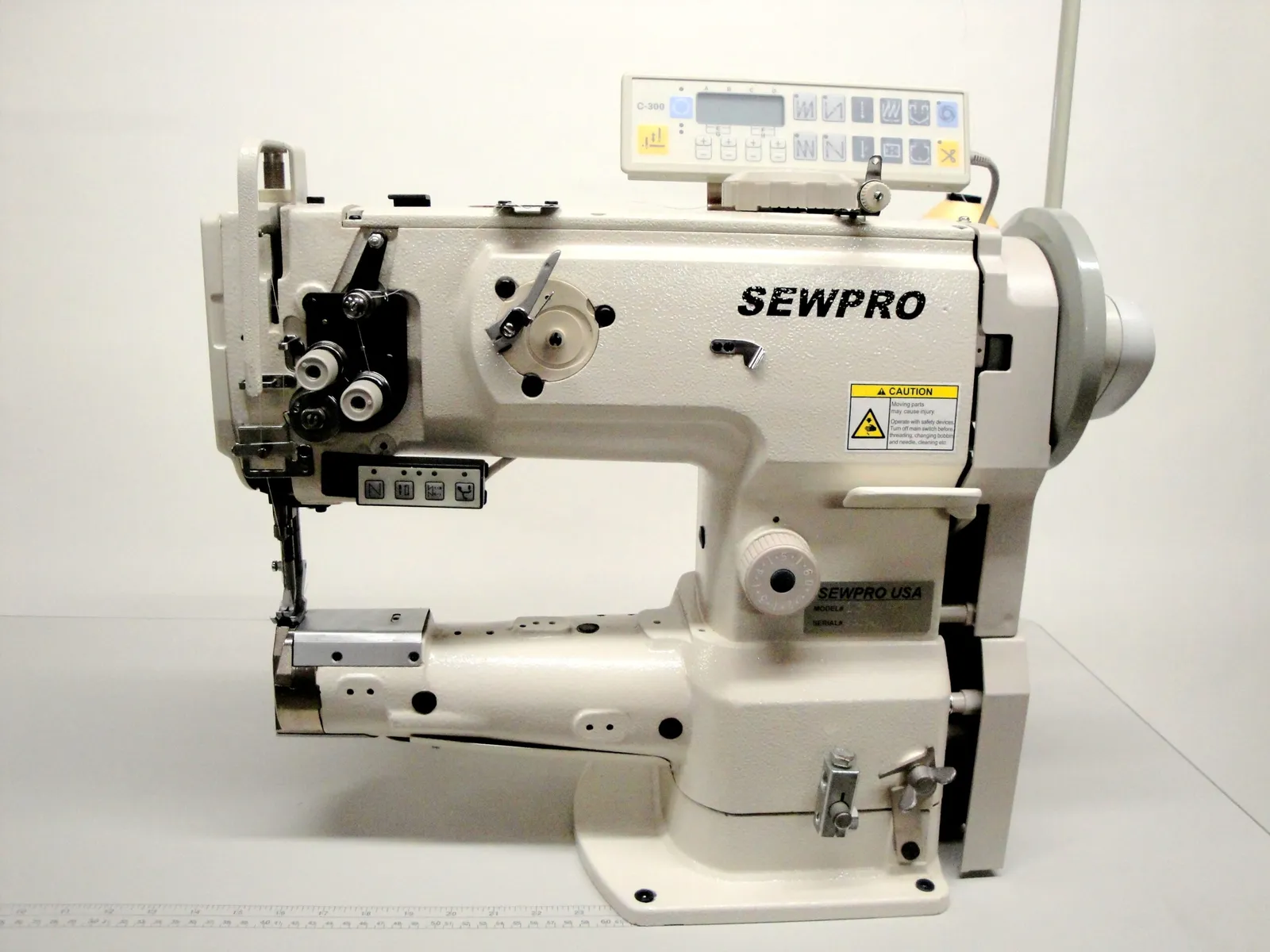

Cylinder-Bed Unison-Feed Lockstitch Sewing Machine

The 1341 head with an under-bed thread trimmer and automatic functions, for production bag and leather goods shops.

5.0 on Google from 10 reviews of SEWPRO

Stitch length6mm
Thread sizes46 to 138
Foot lift16mm automatic
PowerDirect drive servo with needle positioning

Materials

Boots
Canvas
Heavy-weight fabrics
Leather
Medium heavy-weight fabrics
Upholstery
Vinyl

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 1342-7

The 1342-7 is the automated version of the cylinder arm walking foot. The 7 suffix means the thread trimmer, automatic back-tack and foot lift are built in, driven by a direct drive servo. The operator sews to the end of a bag gusset, taps the pedal, and the threads are cut under the plate with the needle up and the foot lifted for the next piece.

An adjustable throat plate lets the arm be set up for small diameter work like wallet linings and watch straps as well as bags and boots. The unison feed and the large vertical hook are the same as the 1341, and so is the thread range of 46 to 138.

We show it on video with the drop-in table attachment, and there is a double needle version, the 1342-2, for parallel seams on bag straps and handles.

Also available: SEWPRO 1342-2 double needle cylinder bed, direct drive.

Who buys it

Bag, luggage and case factories with repeat seams
Leather goods makers sewing wallets, straps and cases in volume
Footwear shops closing uppers and attaching linings
Automotive trim: shift boots, armrests, shaped covers

Platform and parts

1342 class

Follows the Juki LS-1342-7 design: 1341 cylinder head with trimmer, automatic back-tack and foot lift, direct drive.

Parts: 1341/1342 class feet, plates and binders fit. Needle system 135x17.

How we deliver it

1Direct drive servo is part of the head; back-tack count and needle stop are set at installation.
2Industrial table with the cylinder arm cut-out, drawer, thread stand and LED lamp, assembled and leveled.
3Automatic foot lift is electric on this model; no air needed.
4Threaded with your thread, timed, tension set and a seam sewn on your material before it leaves Ephrata.

Technical data: SEWPRO 1342-7

Specifications

Stitch, lift and thread figures are for the 1342 class; confirm on order.

Machine Type	Cylinder-Bed, Unison-Feed, Lockstitch
Feed System	Unison-Feed for Thick & Layered Materials
Stitch Type	Lockstitch
Thread Trimmer	Under-Trimmer for Clean Finishes
Throat Plate	Adjustable for Small Tubular Items
Application Range	Medium to Heavy Materials Including Leather
Hook Type	Industrial-Grade for High-Speed Operation
Max Stitch Length	6mm
Presser Foot Lift	16mm automatic
Needle System	135x17, sizes 100 to 180
Thread Sizes	46 to 138
Motor	Direct drive servo with needle positioning

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135x17, sizes 100 to 180. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Cylinder-Bed DesignIdeal for sewing curved or tubular products.
Unison-Feed MechanismSmooth, even feeding for thick and layered materials.
Lockstitch StrengthDurable seams for heavy-duty projects.
Thread Under-TrimmerFaster finishing and cleaner results.
Adjustable Throat PlatePerfect for small tubular sewing like wallets.

Applications

What gets sewn on the 1342-7

Leather goods manufacturing (wallets, belts, accessories)
Bag and luggage production
Shoemaking and footwear repairs
Upholstery work (furniture, marine, and automotive)
Sporting goods and outdoor gear
Protective covers and cases
Small-diameter tubular products

Videos

The 1342-7 running in our shop

Recorded in Ephrata on real material. No stock footage.

All videos

Compare

1342-7 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 1341
Manual version, simpler and cheaper.
SEWPRO 335-GA
Slim cylinder with automation for small tubular goods.

Model	SEWPRO 1342-7This machine	SEWPRO 1341Cylinder arm walking foot lockstitch, single needle	SEWPRO 335-GACylinder-Bed Unison-Feed Lockstitch for Small Tubular Goods
Stitch length	6mm	6mm	6mm
Foot lift	16mm automatic	9mm by hand, 16mm by knee	16mm (Automatic, Air)
Thread sizes	46 to 138	46 to 138	46-138
Needle system	135x17, sizes 100 to 180	135x17, sizes 100 to 180	134-35 (Sizes 110-180)
Max speed	On request	2,000 stitches per minute	2,500 RPM
Hook	Industrial-Grade for High-Speed Operation	Vertical-axis hook, large bobbin	Horizontal Hook
Arm / post / field	On request	72mm (2 7/8 inch)	On request

Questions about the 1342-7

Is the trimmer worth it?

If one person sews on the machine all day, yes: no scissors, no thread tails to clean up, and a few seconds saved on every piece. If the machine is used an hour a day, the 1341 is the better buy.

What is the 1342-2?

The double needle version, for two parallel rows on straps, handles and bag bodies. It is on video; ask for a quote.

Request a quote

SEWPRO 1342-7

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1342-7 fits or point you to the model that does, then quote it complete with a delivery date.
