Set up and test-sewn on your material

SEWPRO
Cylinder armSKU 1041341 class

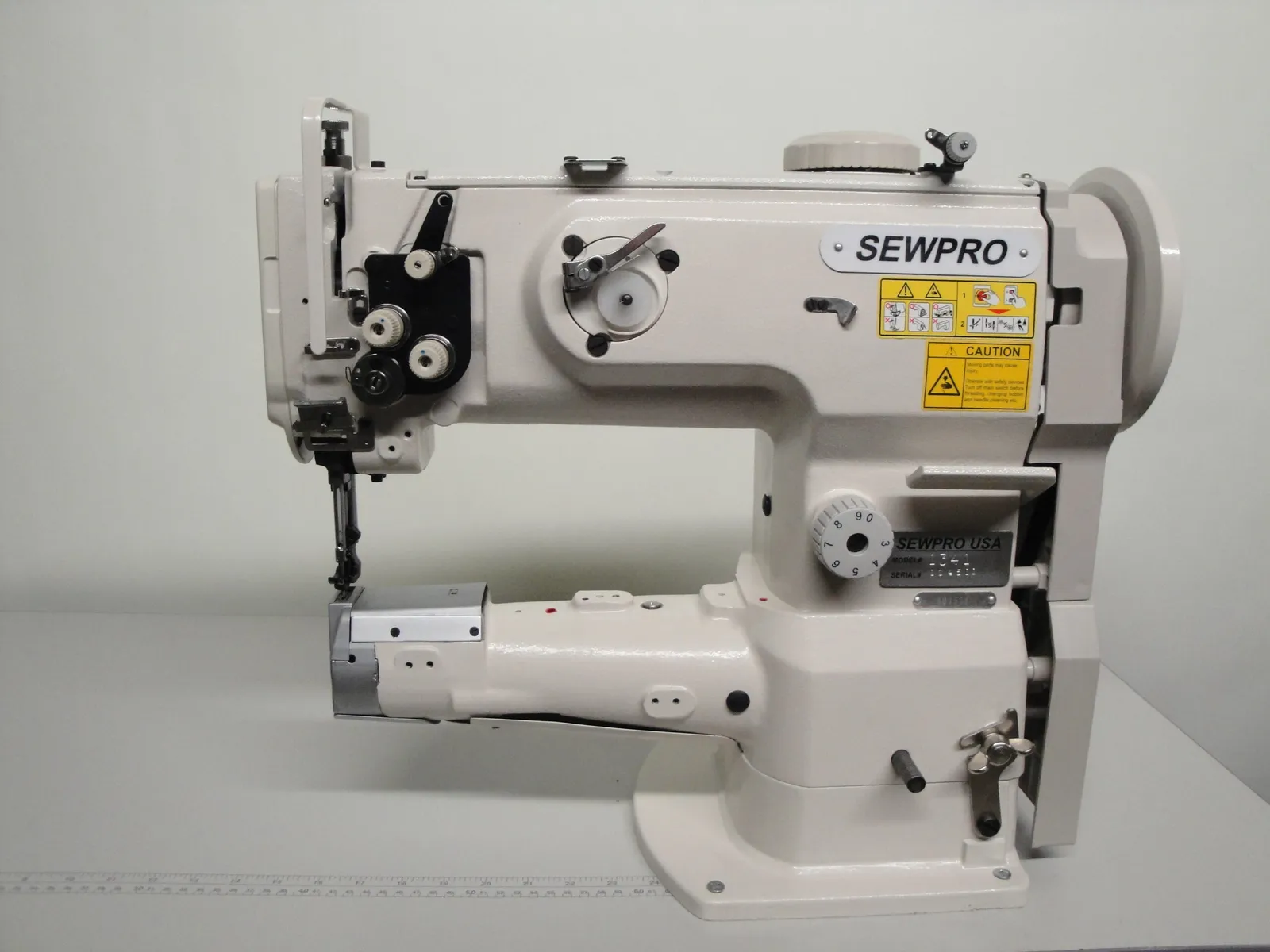

SEWPRO 1341

Cylinder arm walking foot lockstitch, single needle

A single needle cylinder arm walking foot for bags, boots, wallets and anything you have to slide over the arm.

5.0 on Google from 10 reviews of SEWPRO

  • Stitch length6mm
  • Thread sizes46 to 138
  • Foot lift9mm by hand, 16mm by knee
  • Max speed2,000 stitches per minute

Materials

  • Boots
  • Canvas
  • Footwear and Accessories
  • Heavy-weight fabrics
  • Leather
  • Medium heavy-weight fabrics
  • Upholstery

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

  • Set up, timed and test-sewn on your material before delivery
  • 1 year warranty on parts and workmanship
  • Delivered and installed in PA and nearby, freight nationwide
  • Phone and text support from the people who sold it

About the 1341

The 1341 is the standard medium-heavy cylinder arm. The bed is a 72mm tube instead of a table, so a bag body, a boot, a sleeve or a pillow slides over it and the seam runs around the piece instead of fighting it across a flat surface. The feed is unison, meaning needle, inner foot and feed dog move together, so layered leather and vinyl do not creep.

The hook is vertical-axis with a large bobbin, the stitch goes to 6mm, and the foot lifts 16mm by knee. It sews thread from 46 to 138, which covers most bag, shoe, wallet and upholstery work. The climbing device keeps the stitch even when the foot steps onto a thicker seam.

A drop-in table attachment turns it into a small flatbed in a minute for the occasional straight seam.

Technical data: SEWPRO 1341

Specifications

Figures are for the 1341 class the head follows; confirm the ones that matter for your work when you order.

Machine TypeCylinder-bed, single needle, unison feed, lockstitch
Cylinder Diameter72mm (2 7/8 inch)
Max Sewing Speed2,000 stitches per minute
Max Stitch Length6mm
Presser Foot Lift9mm by hand, 16mm by knee
Alternating Foot Stroke2.5 to 6.5mm
Needle System135x17, sizes 100 to 180
Thread Sizes46 to 138
Hook TypeVertical-axis hook, large bobbin

Included in a SEWPRO quote

  • Head, table and stand
  • Servo motor, needle positioner where the head supports it
  • Feet, folders, clamps or guides for your product
  • A first box of Schmetz needles in the right system, point and size
  • Threaded, timed and sewn on your material before delivery
  • Delivery and installation in PA and nearby, freight elsewhere
  • 1 year warranty, phone support for the life of the machine
Schmetz

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135x17, sizes 100 to 180. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Features

What is on the machine

  • Cylinder BedThe slimmed-down cylinder bed design allows for easy maneuvering of small, tubular pieces like bags, shoes, wallets, and pillows.
  • Unison FeedEnsures even and consistent stitching on thick materials and multiple layers.
  • Vertical-Axis Hook with Large BobbinReduces thread changes and increases efficiency.
  • Maximum Sewing Speed of 2,000 RPMQuickly complete projects, boosting productivity.
  • Adjustable Stitch Length and Presser Foot LiftProvides flexibility for various materials and techniques
  • Wide Needle and Thread Size RangeAccommodates a variety of projects and thread weights.
  • Climbing DeviceFor effortlessly sewing over thick seams and transitions.

Applications

What gets sewn on the 1341

  • Leatherworking: Crafting high-quality leather bags, shoes, wallets, and other accessories
  • Manufacturing: Production of small goods, sporting goods, or similar items
  • Hobbyists: For serious makers tackling challenging materials and projects

Compare

1341 against the alternatives

The models we would put next to it on the phone, and why.

ModelSEWPRO 1341This machineSEWPRO 1342-7Cylinder-Bed Unison-Feed Lockstitch Sewing MachineSEWPRO 335-GACylinder-Bed Unison-Feed Lockstitch for Small Tubular GoodsSEWPRO 441-PRO441 class cylinder arm walking foot for extra heavy leather
Stitch length6mm6mm6mm3/8" (Approx. 9.5mm)
Foot lift9mm by hand, 16mm by knee16mm automatic16mm (Automatic, Air)7/8 inch
Thread sizes46 to 13846 to 13846-138138 to 346
Needle system135x17, sizes 100 to 180135x17, sizes 100 to 180134-35 (Sizes 110-180)794 (7x3), sizes 140 to 250
Max speed2,000 stitches per minuteOn request2,500 RPM800 RPM
HookVertical-axis hook, large bobbinIndustrial-Grade for High-Speed OperationHorizontal HookLarge Shuttle Hook
Arm / post / field72mm (2 7/8 inch)On requestOn request16½" Long × 6¾" High

Questions about the 1341

1341 or 1342-7?

The 1342-7 adds a thread trimmer, automatic foot lift and a slimmer plate option. If one operator sews bags all day, the automation pays. For a repair shop or a mixed workload the 1341 is simpler and cheaper.

Can it do binding?

Yes, with a binder attachment. If binding is most of the work, the 335VB is built for it.

How thick can it sew?

Comfortably 3/8 inch of medium leather or layered vinyl with 138 thread. For 207 thread and 1/2 inch stacks the 441 class is the right tool.

Request a quote

SEWPRO 1341

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1341 fits or point you to the model that does, then quote it complete with a delivery date.

SEWPRO 1341

Cylinder arm walking foot lockstitch, single needle

(717) 940-0129Monday to Friday, 7am to 5pm. Showroom visits by appointment.

Request concerns the SEWPRO 1341. Tell us what you sew and we will confirm it is the right machine, quote it complete with table and servo motor, and give you a delivery date.

Answered within one business day. No mailing list.

Call TextGet a quote
