Zig-zagSKU 149Feed-off-the-arm zig-zag

SEWPRO 2156

Feed-off-the-arm top and bottom feed zig-zag machine

A feed-off-the-arm zig-zag with top and bottom feed, for wetsuits, neoprene, rubber-coated cloth and elastic.

5.0 on Google from 10 reviews of SEWPRO

Stitch length5mm
Zig-zag width9mm
Foot lift10mm
Max speed2500 S.P.M

Materials

Canvas
Footwear and Accessories
Medium heavy-weight fabrics
Neoprene
Rubber-Coated Fabrics
Wetsuits

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

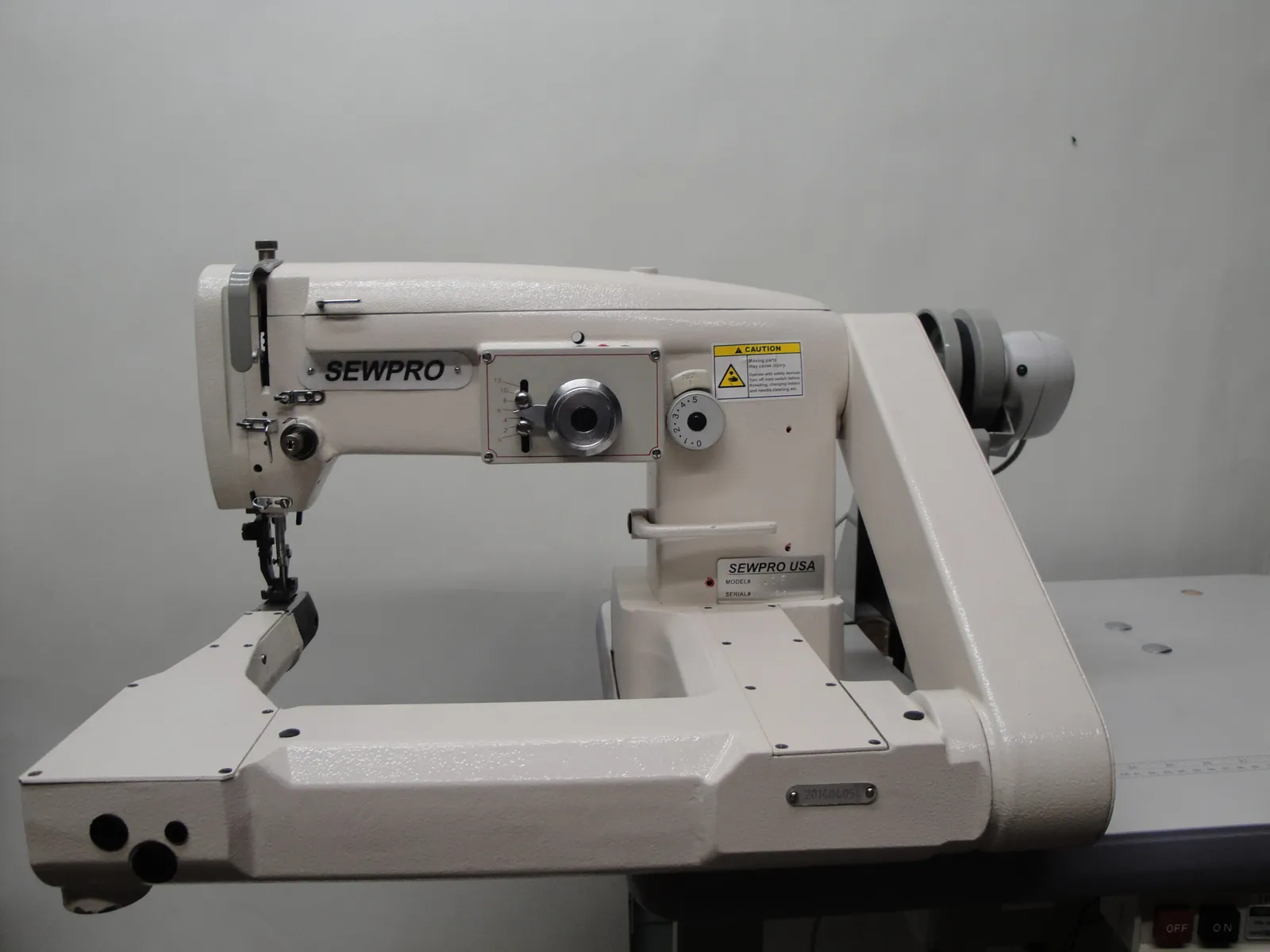

About the 2156

The 2156 is the wetsuit machine. The bed is a free arm 55mm in diameter that the operator feeds the work off the end of, so a sleeve, a leg or a boot slides over it and the seam runs out and away. Top and bottom feed move neoprene and rubber-coated cloth without stretching or slipping, the zig-zag goes to 9mm, the straight stitch to 5mm, and it runs at up to 2,500 stitches per minute with reverse.

Dive shops, surf shops and water sports gear makers use it for neoprene; sail lofts for luff tapes and stretch seams; shoe shops for elastic. We have two videos on it, including how to thread it.

Also available: SEWPRO 2522D feed-off-the-arm zig-zag and 2530-7C top and bottom feed heavy zig-zag; both on video.

Technical data: SEWPRO 2156

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Max Speed	2500 S.P.M
Max Stitch Length	5mm
Zig-Zag Stitch Width	9mm
Max Foot Lift	10mm
Needle	135 x 17 (sizes 110-160)
Bobbin size	Standard
Cylinder Diameter	55mm

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135 x 17, sizes 110 to 160. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Feed-Off-The-Arm DesignHandles tubular projects with ease.
Zig-Zag and Lockstitch FunctionalityOffers stitch versatility.
Upper and Lower FeedEnsures material control and prevents slippage.
Reverse FeedFor reinforced stitching.
High SpeedSews up to 2500 stitches per minute.
Adjustable Stitch Length and WidthCustomize stitches for your projects.

Applications

What gets sewn on the 2156

Wetsuits
Rubber or vinyl products
Elastic fabrics
Any tubular sewing project requiring precision and power

Videos

The 2156 running in our shop

Recorded in Ephrata on real material. No stock footage.

All videos

Compare

2156 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 2150-CBZ
Cylinder bed walking foot zig-zag for leather and boots.
SEWPRO 146RB
Flatbed walking foot zig-zag.

Model	SEWPRO 2156This machine	SEWPRO 2150-CBZHeavy-duty zig-zag lockstitch with large bobbin	SEWPRO 146RBWalking foot zig-zag lockstitch machine with large bobbin
Stitch length	5mm	5mm	5mm
Foot lift	10mm	12mm	12mm
Thread sizes	On request	46-138	46 to 138
Needle system	135 x 17 (sizes 110-160)	135×17 sizes 110-160	135x17, sizes 110 to 160
Max speed	2500 S.P.M	2000 RPM	2,500 stitches per minute
Hook	On request	On request	Horizontal-axis rotary hook, large bobbin
Arm / post / field	55mm	2.75"	On request

Questions about the 2156

What does feed-off-the-arm mean?

The material feeds off the end of the arm toward the operator instead of across a bed. The sewn tube falls away as you go, which is why wetsuit and sleeve seams are sewn this way.

Does it sew leather?

Light leather, yes. Its strength is stretch and coated materials. For leather and boots the 2150-CBZ is the better cylinder zig-zag.

Request a quote

SEWPRO 2156

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 2156 fits or point you to the model that does, then quote it complete with a delivery date.
