Zig-zagSKU 144204 class, zig-zag

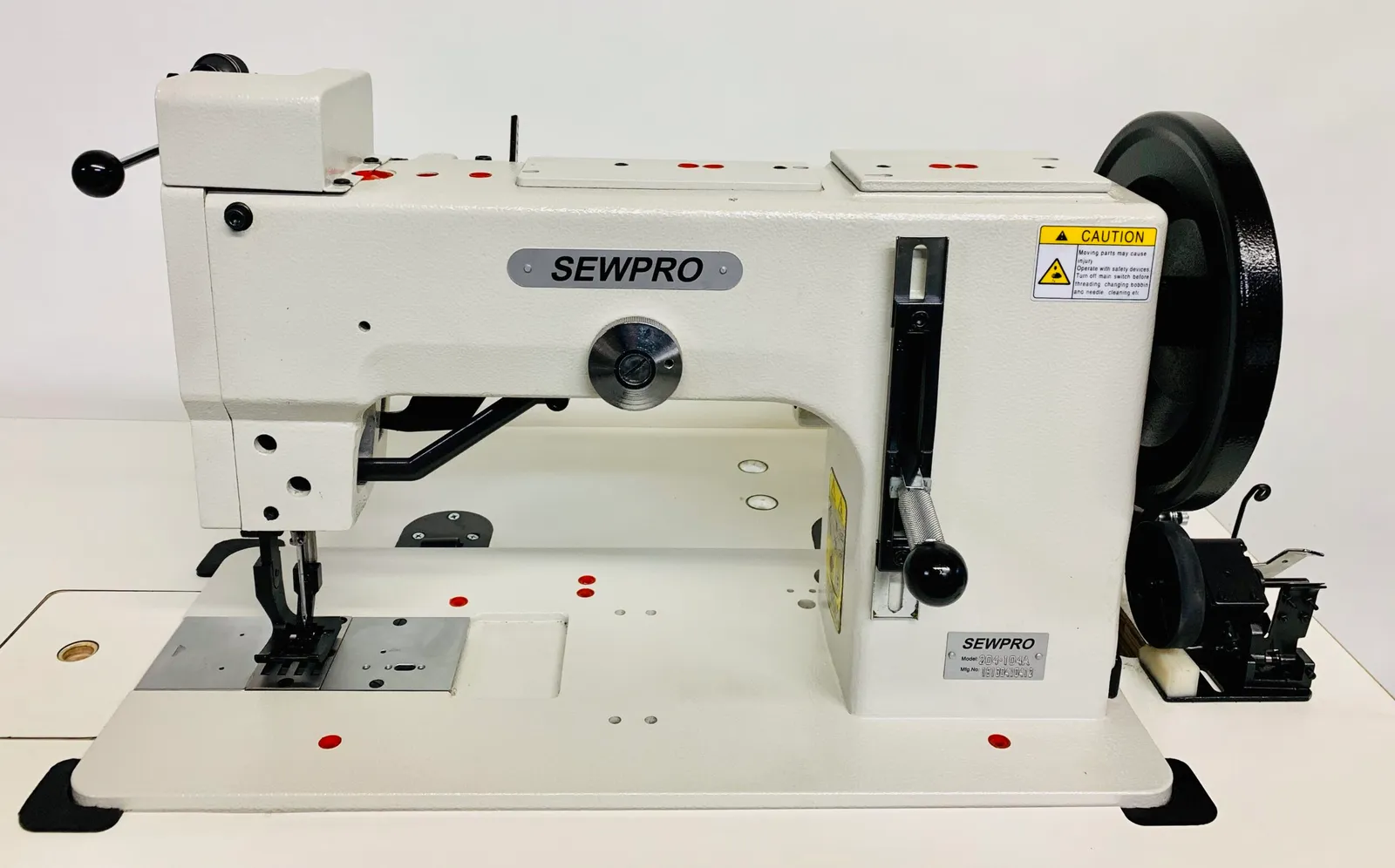

SEWPRO 204-104A

Walking foot zig-zag for sails, upholstery and leather

An extra heavy flatbed zig-zag with a barrel shuttle and top and bottom feed, for sails, heavy canvas and neoprene.

5.0 on Google from 10 reviews of SEWPRO

Stitch length10mm
Thread sizes138 to 346
Foot lift12mm
Max speed800 stitches per minute

Materials

Canvas
Neoprene
Sails

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 204-104A

The 204-104A is the zig-zag version of the 204 heavy flatbed. The barrel shuttle holds heavy thread, the top and bottom feed move sailcloth, laminate and neoprene without creeping, the stitch goes to 10mm and the foot lifts 12mm. Straight stitch and zig-zag are both available, with reverse. It runs at 800 RPM, which is where a heavy zig-zag should run.

It is bought by sail lofts sewing heavier cloth than a 146RB likes, by shops that sew wetsuits and neoprene gear in volume, and by tent and awning makers who want zig-zag seams on heavy canvas.

Technical data: SEWPRO 204-104A

Specifications

Zig-zag width for this head is confirmed on order; ask for the figure for your cloth.

Machine Type	Extra heavy-duty flatbed zig-zag and lockstitch, top and bottom feed
Max Sewing Speed	800 stitches per minute
Max Stitch Length	10mm
Presser Foot Lift	12mm
Hook Type	Barrel shuttle
Needle System	794, sizes 160 to 230
Thread Sizes	138 to 346
Extra Features	Reverse stitch, straight or zig-zag

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 794, sizes 160 to 230. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Top and Bottom FeedEnsures smooth, consistent stitching on even the thickest, most challenging fabrics.
Zig Zag and Lock StitchOffers a wide range of seam finishes and decorative possibilities.
Barrel Shuttle HookA robust design for handling heavy threads and demanding workloads.
Reverse StitchReinforce seams and easily backtrack for precision sewing.
Max Sewing Speed 800 SPMWork efficiently, even on large-scale projects.
Max Stitch Length 10mm, Foot Lift 12mmAccommodates bulky materials with ease.

Applications

What gets sewn on the 204-104A

Sail Making/Repair: Handle the rigors of sailcloth with confidence
Neoprene Sewing: Create durable, watertight seams in wetsuits and other neoprene gear
Heavy Canvas Projects: Tackle tents, awnings, and other outdoor fabrications

Compare

204-104A against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 204ZTS
Same class with 12mm zig-zag width.
SEWPRO 266
Heavy sail zig-zag with the same thread range.
SEWPRO 146RB
Medium-duty zig-zag for lighter cloth, faster.

Model	SEWPRO 204-104AThis machine	SEWPRO 204ZTSHeavy-duty walking foot zig-zag with large hook	SEWPRO 266Heavy-duty walking foot zig-zag sewing machine	SEWPRO 146RBWalking foot zig-zag lockstitch machine with large bobbin
Stitch length	10mm	10mm	On request	5mm
Foot lift	12mm	On request	On request	12mm
Thread sizes	138 to 346	138 to 346	138 to 346	46 to 138
Needle system	794, sizes 160 to 230	794, sizes 160 to 230	794, sizes 160 to 230	135x17, sizes 110 to 160
Max speed	800 stitches per minute	800 stitches per minute	On request	2,500 stitches per minute
Hook	Barrel shuttle	Barrel shuttle	Barrel shuttle	Horizontal-axis rotary hook, large bobbin

Questions about the 204-104A

204-104A, 204ZTS or 266?

All three are extra heavy zig-zags with barrel shuttles and 794 needles. The 204ZTS has a 12mm bite and a top feed; the 266 is the sailmaker's heavy zig-zag with the same thread range; the 204-104A has top and bottom feed. Tell us the cloth and the seam and we will say which.

Request a quote

SEWPRO 204-104A

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 204-104A fits or point you to the model that does, then quote it complete with a delivery date.
