Zig-zagSKU 147Cylinder bed zig-zag

SEWPRO 2150-CBZ

Heavy-duty zig-zag lockstitch with large bobbin

A cylinder bed walking foot zig-zag, for wetsuits, boots, bags and anything tubular that needs a flexible seam.

5.0 on Google from 10 reviews of SEWPRO

Stitch length5mm
Zig-zag width8mm
Thread sizes46-138
Foot lift12mm

Materials

Boots
Canvas
Leather
Medium heavy-weight fabrics
Neoprene
Tarpaulins
Vinyl

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

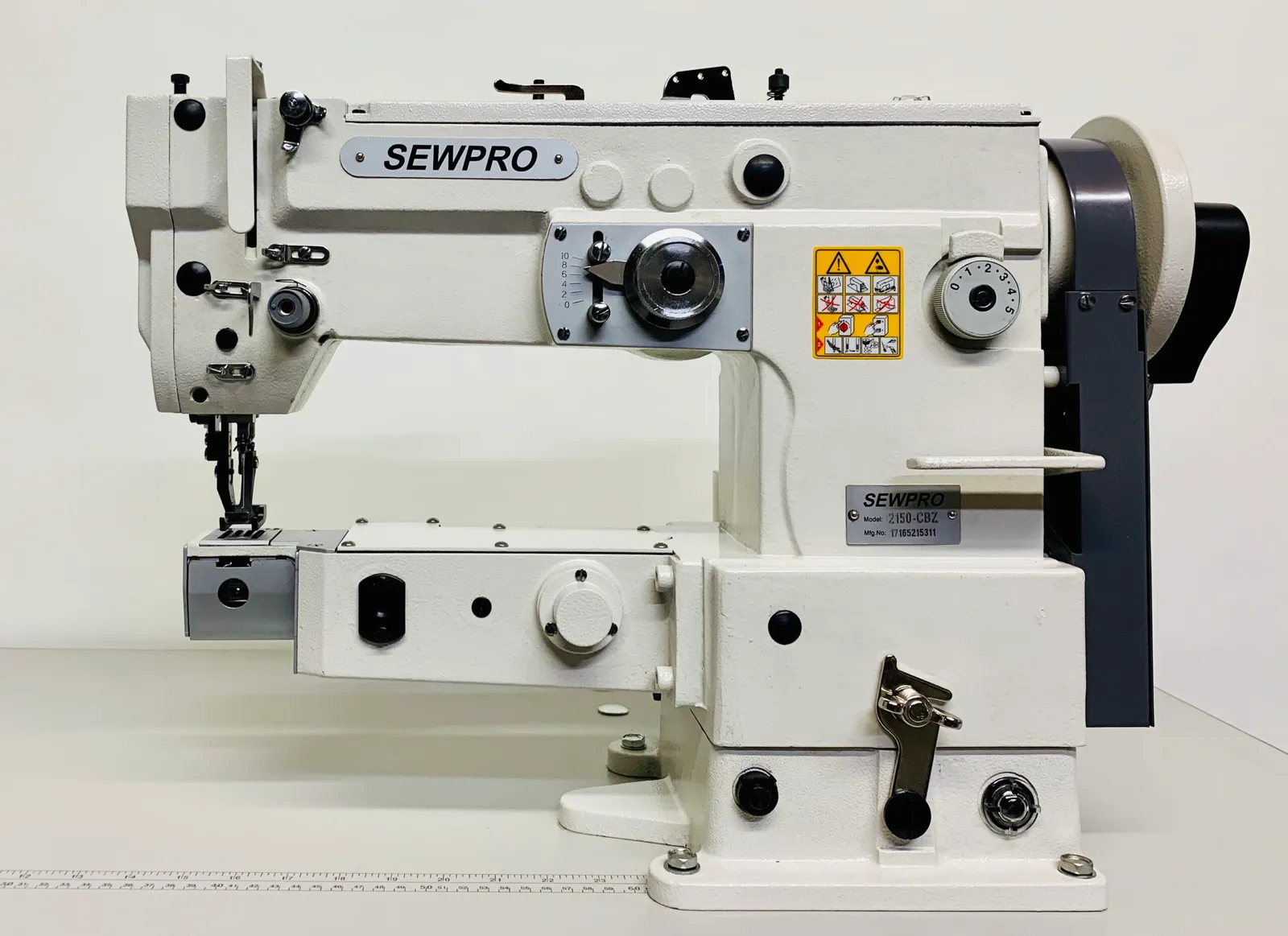

About the 2150-CBZ

The 2150-CBZ puts a zig-zag head on a 2.75 inch cylinder bed with a walking foot. A wetsuit leg, a boot shaft, a bag opening or a tarp sleeve slides over the arm and the seam runs around it with an 8mm zig-zag or a 5mm straight stitch. The rotary hook takes a large bobbin, the foot lifts 12mm, reverse is built in, and it runs 135x17 needles from 110 to 160 with 46 to 138 thread at up to 2,000 RPM.

Dive and water sports shops, boot repairers and outdoor gear makers buy it for the combination of cylinder bed and zig-zag that a flatbed cannot give.

Technical data: SEWPRO 2150-CBZ

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Max Speed	2000 RPM
Max Stitch length	5mm
Zig-Zag Stitch Width Max	8mm
Max Foot Lift	12mm
Needle	135×17 sizes 110-160
Thread Sizes	46-138
Cylinder Diameter	2.75"

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 160. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Other medium to heavy-weight fabrics
Cylinder bedSews curved and cylindrical items with ease.
Single needleDelivers a focused, precise stitch.
Drop feed & walking footEffortlessly feeds difficult fabrics.
Zig-zag lockstitchCreates secure, flexible seams.
Rotary hook & large bobbinMinimizes thread changes.
Reverse feedStrengthens stitching.

Compare

2150-CBZ against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 2156
Feed-off-the-arm zig-zag for neoprene and stretch.
SEWPRO 146RB
Flatbed walking foot zig-zag.
SEWPRO 1341
Cylinder arm straight stitch walking foot.

Model	SEWPRO 2150-CBZThis machine	SEWPRO 2156Feed-off-the-arm top and bottom feed zig-zag machine	SEWPRO 146RBWalking foot zig-zag lockstitch machine with large bobbin	SEWPRO 1341Cylinder arm walking foot lockstitch, single needle
Stitch length	5mm	5mm	5mm	6mm
Foot lift	12mm	10mm	12mm	9mm by hand, 16mm by knee
Thread sizes	46-138	On request	46 to 138	46 to 138
Needle system	135×17 sizes 110-160	135 x 17 (sizes 110-160)	135x17, sizes 110 to 160	135x17, sizes 100 to 180
Max speed	2000 RPM	2500 S.P.M	2,500 stitches per minute	2,000 stitches per minute
Hook	On request	On request	Horizontal-axis rotary hook, large bobbin	Vertical-axis hook, large bobbin
Arm / post / field	2.75"	55mm	On request	72mm (2 7/8 inch)

Questions about the 2150-CBZ

2150-CBZ or 2156?

The 2156 is feed-off-the-arm with top and bottom feed and a 9mm bite, built for neoprene and stretch; the 2150-CBZ is a cylinder bed walking foot and the better choice for leather, boots and mixed tubular work.

Request a quote

SEWPRO 2150-CBZ

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 2150-CBZ fits or point you to the model that does, then quote it complete with a delivery date.
