Cylinder armSKU 103441 class, long arm

SEWPRO 441-25

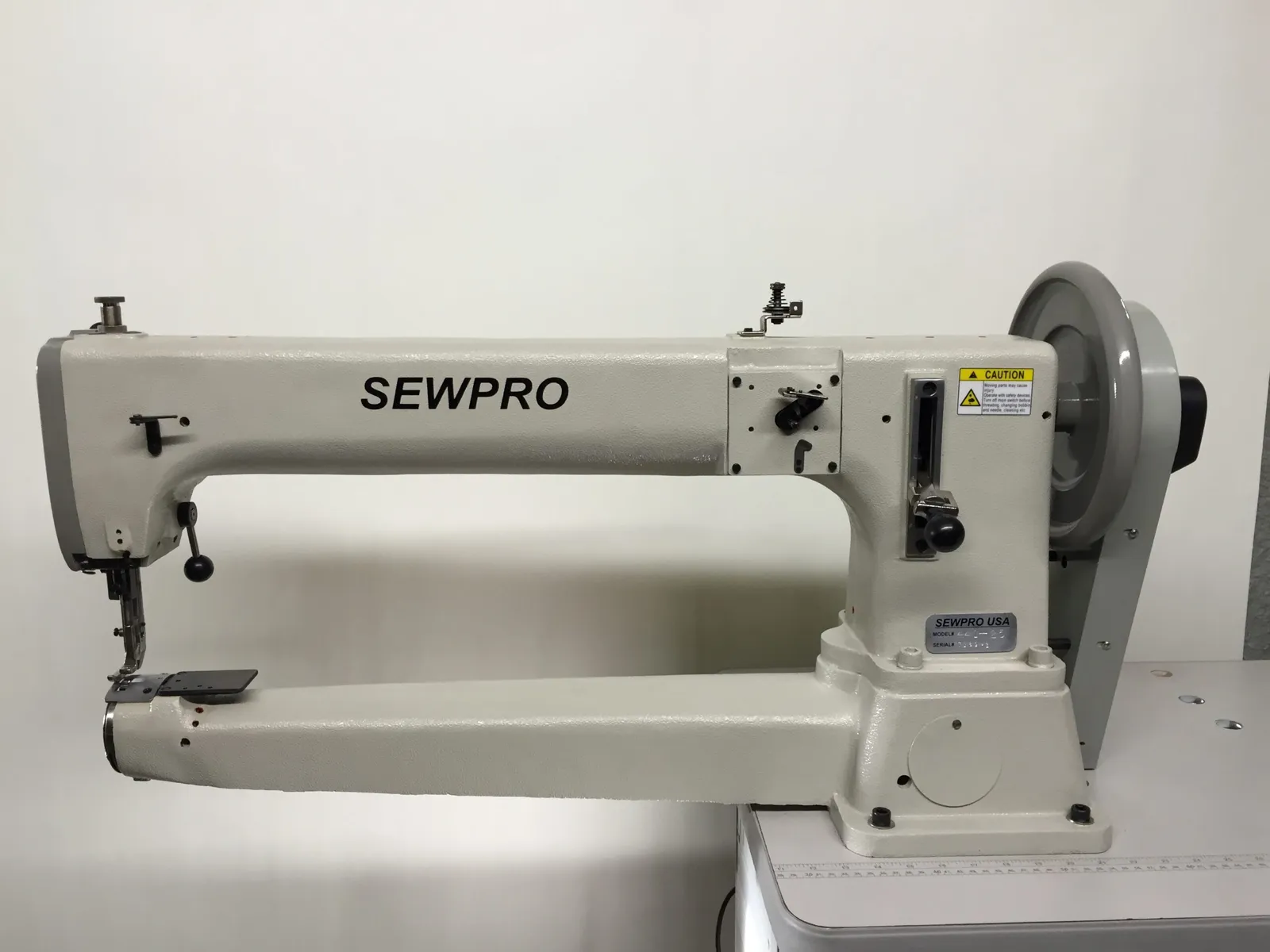

25" long arm 441 class cylinder arm sewing machine

The 441 class head on a 25 inch arm, for saddle skirts, large panels and anything too big for a standard 441.

5.0 on Google from 10 reviews of SEWPRO

Arm length25"
Stitch length3/8"
Thread sizes138-346
Foot lift7/8"

Materials

Bio-plastic products
Leather
Nylon webbing
Upholstery

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 441-25

The 441-25 is the 441-PRO with 25 inches between the needle and the arm instead of 16.5. Everything else is the same: a cylinder bed, compound feed walking foot, large shuttle hook, 794 needle, 3/8 inch stitch and thread from 138 to 346. The speed is lower, 600 RPM, because the longer arm carries a longer needle bar drive.

The extra arm matters when the piece is big: a saddle skirt, a fender, a tarp corner with webbing, a large leather panel on a motorcycle seat, a harness assembly that has to turn under the needle without being folded. The bobbin winder sits on the table so you can wind while sewing.

Who buys it

Saddle makers: skirts, fenders, seats
Large leather panels and upholstery in heavy leather
Industrial webbing and cargo gear with 346 thread
Luggage and oversized leather goods

Platform and parts

441 class, long arm

441 cylinder arm design extended to 25 inches: large shuttle hook, 794 needle, 56mm needle bar stroke, 7/8 inch lift.

Parts: 441 class feet, plates and bobbins fit. Needle system 794, sizes 140 to 250.

How we deliver it

1Servo motor with needle positioner, sized to the head; a speed reducer on the heavy heads so the operator can sew one stitch at a time. 3:1 reducer standard.
2Extended heavy-duty table for the long arm, drawer, thread stand and lamp.
3Harness feet and plates as on the 441-PRO; edge guide on request.
4Threaded with your thread, timed, tension set and a seam sewn on your material before it leaves Ephrata.

Technical data: SEWPRO 441-25

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Long-Arm Cylinder-Bed, Single Needle, Walking Foot Lockstitch
Cylinder Diameter	3¼"
Working Space	25" Long × 6¾" High
Max Sewing Speed	600 RPM
Max Stitch Length	3/8" (Approx. 9.5mm)
Needle Bar Stroke	56mm
Presser Foot Lift	7/8"
Reverse Stitching	Manual
Hook Type	Large Capacity Shuttle Hook
Needle System	794 (Sizes 140-250)
Thread Sizes	138-346
Lubrication	Manual
Bobbin Winder	On the Table
Needle-to-Arm Clearance	25"

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 794, sizes 140 to 250. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

25" Long-Arm DesignIdeal for large, bulky sewing projects.
Large Shuttle HookHolds more thread for long runs.
Extra Heavy-Duty CapabilityHandles thick leather, webbing, and synthetic materials.
Compound FeedSmooth, even stitch quality on layered materials.
Extra-Long Stitch Option3/8" for decorative and functional seams.

Applications

What gets sewn on the 441-25

Saddles and harnesses
Heavy-duty belts and straps
Large leather panels and upholstery
Industrial webbing and cargo gear
Marine and outdoor equipment
Luggage and travel goods
Protective covers and cases
Oversized decorative leatherwork

Compare

441-25 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 441-PRO
Standard 16.5 inch arm, faster, less expensive.
SEWPRO 204-30
Flatbed barrel shuttle with a 30 inch arm and thread to 415.
SEWPRO 243-25
25 inch flatbed walking foot with 14mm stitch.

Model	SEWPRO 441-25This machine	SEWPRO 441-PRO441 class cylinder arm walking foot for extra heavy leather	SEWPRO 204-3030" Long-Arm Barrel Shuttle Sewing Machine	SEWPRO 243-2525" Long Arm Extra Heavy-Duty Walking Foot Lockstitch
Stitch length	3/8" (Approx. 9.5mm)	3/8" (Approx. 9.5mm)	12mm	14mm
Foot lift	7/8"	7/8 inch	24mm	20mm
Thread sizes	138-346	138 to 346	138-415	138-415
Needle system	794 (Sizes 140-250)	794 (7x3), sizes 140 to 250	794 (Sizes 160-230)	794 (Sizes 160-230)
Max speed	600 RPM	800 RPM	600 RPM	800 RPM
Hook	Large Capacity Shuttle Hook	Large Shuttle Hook	Large Barrel Shuttle	Large Shuttle Hook
Arm / post / field	25"	16½" Long × 6¾" High	30"	25"

Questions about the 441-25

When is the 25 inch arm worth it?

When the piece does not fit under a 16.5 inch arm without folding: saddle skirts, large panels, long assemblies with hardware at both ends. If everything you sew is under 16 inches, buy the 441-PRO and save the difference.

Is it slower?

600 RPM against 800. On this kind of work nobody notices.

Request a quote

SEWPRO 441-25

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 441-25 fits or point you to the model that does, then quote it complete with a delivery date.
