Set up and test-sewn on your material

SEWPRO
Flatbed walking footSKU 1371541 class

SEWPRO 1541S

Heavy-Duty Walking Foot Lockstitch Sewing Machine

The everyday walking foot for upholstery, canvas and medium leather, with a safety clutch so a jam does not cost you a hook.

5.0 on Google from 10 reviews of SEWPRO

  • Stitch length9mm
  • Thread sizes46-138
  • Foot lift16mm
  • Max speed2,500 RPM

Materials

  • Leather
  • Canvas
  • Upholstery fabric

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

  • Set up, timed and test-sewn on your material before delivery
  • 1 year warranty on parts and workmanship
  • Delivered and installed in PA and nearby, freight nationwide
  • Phone and text support from the people who sold it

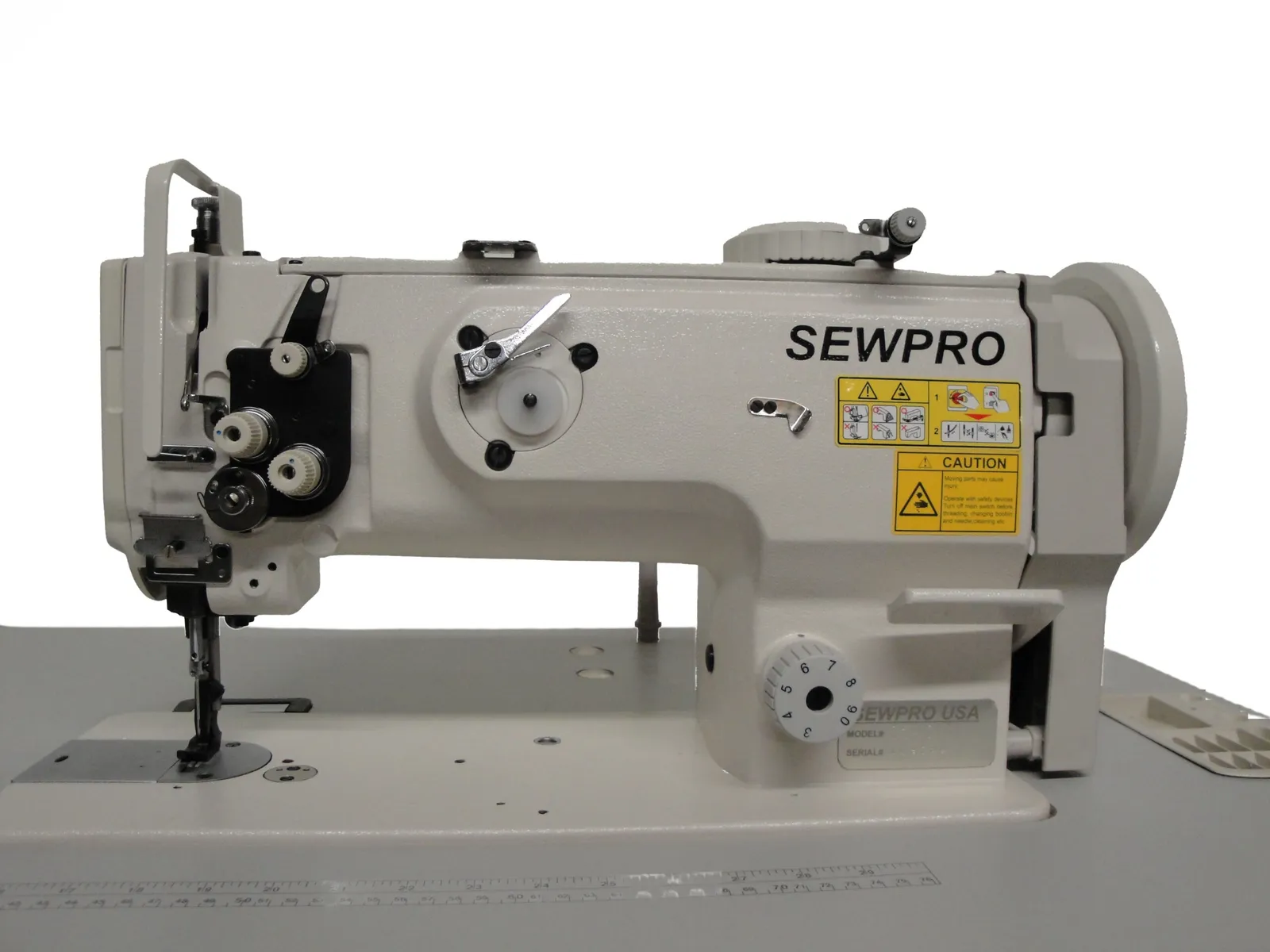

About the 1541S

The 1541S is the machine most upholstery shops should own first. It is a single needle compound feed flatbed on the 1541 platform: needle, inner foot and feed dog all move the material together, so four layers of vinyl with a welt cord in between feed evenly and the stitch on the back matches the front. The horizontal double capacity hook takes an M bobbin, so you wind half as often as on a standard hook.

The S in the name is the safety clutch. When a needle hits a buckle or a bobbin case jams, the clutch releases instead of bending the hook driver. Push the button under the bed, turn the handwheel, and you are sewing again. On a machine that runs all day in a trim shop that feature pays for itself the first year.

It sews thread from 69 to 138 comfortably and stitches up to 9mm. It is not a saddlery machine: for 207 thread and up, or stacks over 3/8 inch, step up to the 1508NH, the 204-420 or the 441 class.

Technical data: SEWPRO 1541S

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Max Sewing Speed2,500 RPM
Max Stitch Length9mm
Needle Bar Stroke36mm
Presser Foot Lift16mm
Hook TypeHorizontal-Axis Full-Rotary Double-Capacity Hook (M size bobbin)
Needle System135×17 (Sizes 110-180)
Thread Sizes46-138
LubricationCentralized Oil Wick System
Extra FeaturesClimbing Device, Safety Clutch, Built-in Bobbin Winder

Included in a SEWPRO quote

  • Head, table and stand
  • Servo motor, needle positioner where the head supports it
  • Feet, folders, clamps or guides for your product
  • A first box of Schmetz needles in the right system, point and size
  • Threaded, timed and sewn on your material before delivery
  • Delivery and installation in PA and nearby, freight elsewhere
  • 1 year warranty, phone support for the life of the machine
Schmetz

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 180. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Features

What is on the machine

  • Walking Foot MechanismSmooth feeding for thick, layered materials.
  • Large M Size BobbinLonger sewing time between bobbin changes.
  • Climbing DeviceHandles seam height variations with ease.
  • Safety ClutchProtects the hook from damage.
  • High Lift Presser Foot (16mm)Perfect for bulky workpieces.

Applications

What gets sewn on the 1541S

  • Upholstery manufacturing
  • Leather goods production
  • Canvas and awning fabrication
  • Marine and automotive interiors
  • Heavy fabric repairs and assembly

Compare

1541S against the alternatives

The models we would put next to it on the phone, and why.

  • SEWPRO 1508NH

    Same job, heavier hook and needle bar for thicker stacks and 207 thread.

  • ERGOSEW 867 series

    Adds automatic back-tack, trimmer and foot lift for production shops.

  • SEWPRO 0617D-7

    Automated walking foot with direct drive at a lower price than the 867.

ModelSEWPRO 1541SThis machineSEWPRO 1508NHUnison-Feed Lockstitch for Extra Heavy-Weight MaterialsERGOSEW 867 seriesMedium-Heavy Triple Feed Lockstitch Sewing MachineSEWPRO 0617D-7Walking Foot Lockstitch for Canvas and Upholstery
Stitch length9mm10mm12mm8mm
Foot lift16mm5/8" (by Knee)Max 18mm16mm
Thread sizes46-13846-13869-20746-138
Needle system135×17 (Sizes 110-180)135×17 (Nm160) Sizes Nm125-Nm180134-35 (Sizes 110-180)Schmetz 135×17 (Sizes 90-140)
Max speed2,500 RPM2,000 RPM3000 SPMOn request
HookHorizontal-Axis Full-Rotary Double-Capacity Hook (M size bobbin)Vertical-Axis Large HookXXL 32mm Vertical HookHorizontal Large Rotating Hook (M Size Bobbin)

Questions about the 1541S

Will it sew leather?

Yes, up to about 3/8 inch of medium leather with 138 thread. For harness and holster leather with 207 and 277 thread you want the 441 class or the 204-420.

Clutch motor or servo?

Servo, always. You get full torque at one stitch per second, the needle stops where you tell it, and the shop is quiet. Every 1541S we deliver has one.

How is it different from the 1508NH?

The 1508NH has a vertical-axis large hook, a 38mm needle bar stroke and takes the longer 190 needle, so it sews a thicker stack with heavier thread. The 1541S is lighter, faster and a little cheaper. Most upholstery shops are better served by the 1541S; strap, canvas and leather shops by the 1508NH.

Request a quote

SEWPRO 1541S

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1541S fits or point you to the model that does, then quote it complete with a delivery date.
