Set up and test-sewn on your material

SEWPRO
Flatbed walking footSKU 133243 class

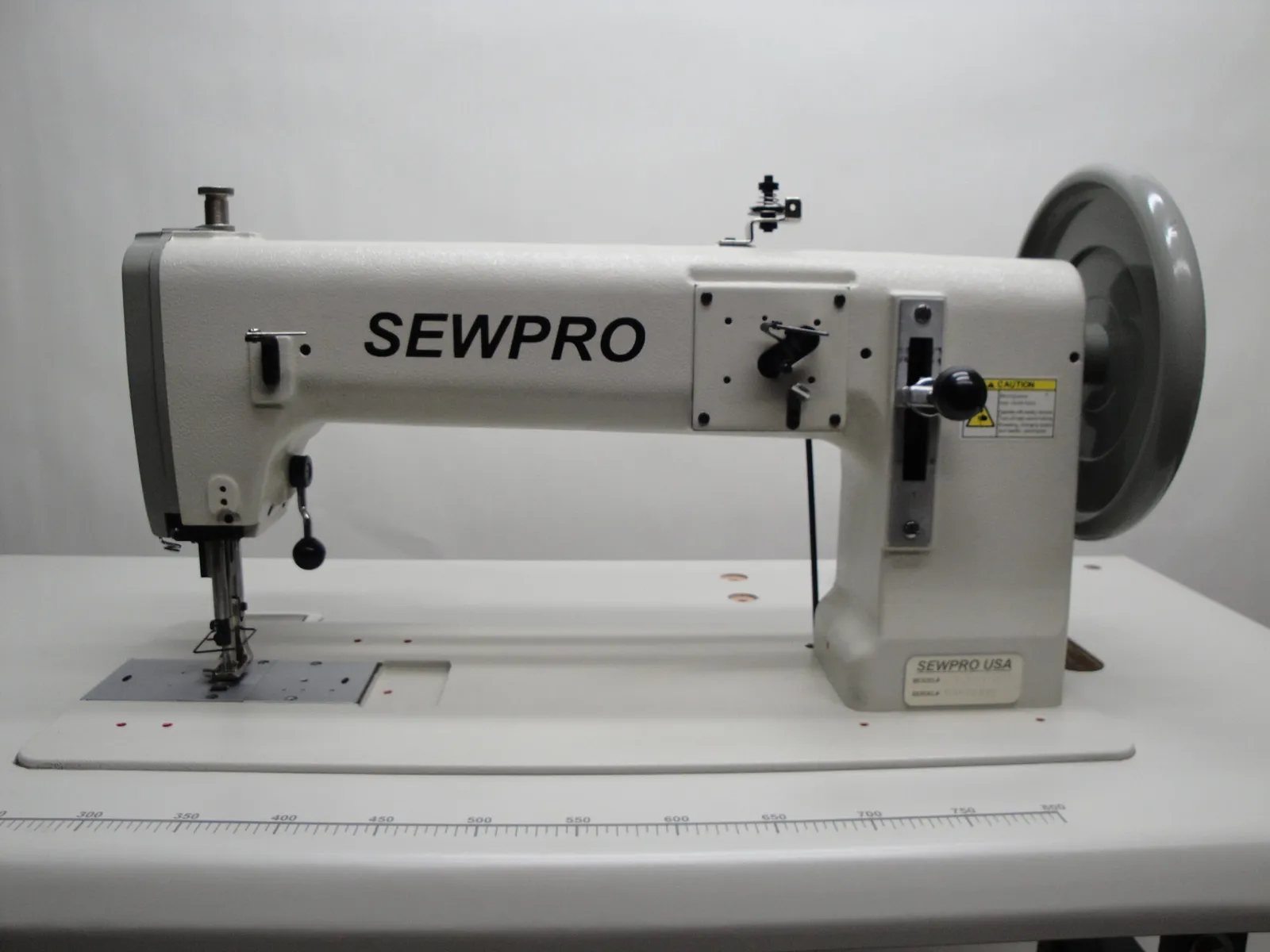

SEWPRO 243

Semi-Long Flat-Bed Lockstitch for Extra Heavy-Weight Materials

A semi-long flatbed with a large shuttle hook and a 20mm pedal lift, for extra heavy work that does not need a full long arm.

5.0 on Google from 10 reviews of SEWPRO

  • Arm length420mm
  • Stitch length11mm
  • Thread sizes138-346
  • Foot lift20mm

Materials

  • Leather
  • Canvas
  • Upholstery fabric
  • Webbing

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

  • Set up, timed and test-sewn on your material before delivery
  • 1 year warranty on parts and workmanship
  • Delivered and installed in PA and nearby, freight nationwide
  • Phone and text support from the people who sold it

About the 243

The 243 sits between the 204-420 and the long arm 243-25. It has 16.5 inches between the needle and the arm, a large shuttle hook for thread from 138 to 346, a 794 needle and an 11mm stitch, and it runs at 800 RPM with the torque that slow speed implies. The 20mm foot lift is by pedal, so both hands stay on a saddle pad or a bundle of webbing.

Shops buy it for saddle pads, tack, heavy webbing, tents and tarps, and for the kind of motorcycle seat and saddlebag work where a 1508 class machine is on the edge of its thread range. It is a compound needle feed walking foot, so layered canvas and leather feed without creeping.

Technical data: SEWPRO 243

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine TypeSemi-Long Flat-Bed, 1-Needle, Lockstitch
ApplicationExtra Heavy-Weight Materials
Max Sewing Speed800 RPM
Max Stitch Length11mm
Presser Foot Lift20mm (By Pedal)
Needle-to-Arm Clearance420mm (16.5")
Needle System794 (Sizes 160-250)
Thread Sizes138-346
Hook TypeLarge Shuttle Hook
Thread UndertrimmerNot Available

Included in a SEWPRO quote

  • Head, table and stand
  • Servo motor, needle positioner where the head supports it
  • Feet, folders, clamps or guides for your product
  • A first box of Schmetz needles in the right system, point and size
  • Threaded, timed and sewn on your material before delivery
  • Delivery and installation in PA and nearby, freight elsewhere
  • 1 year warranty, phone support for the life of the machine
Schmetz

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 794, sizes 160 to 250. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Features

What is on the machine

  • 20mm Presser Foot LiftHandles thick and layered materials with ease.
  • Wide Working Space16.5" clearance for large projects.
  • Large Shuttle HookIncreases thread capacity for long runs.
  • High Torque at Low SpeedPerfect for precision on heavy fabrics.
  • Extra Heavy-Weight CapabilityDesigned for industrial-grade applications.

Applications

What gets sewn on the 243

  • Saddle pads and tack manufacturing
  • Heavy-duty webbing products
  • Industrial and military gear
  • Heavy canvas items (tents, tarpaulins, awnings)
  • Leather belts and harnesses
  • Thick synthetic materials and composites
  • Boat covers and marine upholstery
  • Motorcycle seats and saddlebags
  • Outdoor gear (backpacks, straps, hunting equipment)
  • Safety equipment (cargo slings, protective covers)

Compare

243 against the alternatives

The models we would put next to it on the phone, and why.

ModelSEWPRO 243This machineSEWPRO 204-420Barrel Shuttle Lockstitch for Extra Heavy-Weight SewingSEWPRO 243-2525" Long Arm Extra Heavy-Duty Walking Foot LockstitchSEWPRO 1508NHUnison-Feed Lockstitch for Extra Heavy-Weight Materials
Stitch length11mm12mm14mm10mm
Foot lift20mm (By Pedal)24mm20mm5/8" (by Knee)
Thread sizes138-346138-415138-41546-138
Needle system794 (Sizes 160-250)794 (Sizes 160-230)794 (Sizes 160-230)135×17 (Nm160) Sizes Nm125-Nm180
Max speed800 RPM600 RPM800 RPM2,000 RPM
HookLarge Shuttle HookOn requestLarge Shuttle HookVertical-Axis Large Hook
Arm / post / field420mm (16.5")16"25"On request

Questions about the 243

Is 16.5 inches a long arm?

It is more than the 10.5 inches of a standard flatbed and less than the 25 and 30 inch long arms. For pads, tack and most canvas it is enough. For biminis and tarps look at the 243-25 or 204-30.

What thread does it like best?

207 and 277. It runs 138 and 346 too.

Request a quote

SEWPRO 243

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 243 fits or point you to the model that does, then quote it complete with a delivery date.

SEWPRO 243

Semi-Long Flat-Bed Lockstitch for Extra Heavy-Weight Materials

(717) 940-0129Monday to Friday, 7am to 5pm. Showroom visits by appointment.

Request concerns the SEWPRO 243. Tell us what you sew and we will confirm it is the right machine, quote it complete with table and servo motor, and give you a delivery date.

Answered within one business day. No mailing list.

Call TextGet a quote
