Set up and test-sewn on your material

SEWPRO
Flatbed walking footSKU 140867 class

ERGOSEW 867 series

Medium-Heavy Triple Feed Lockstitch Sewing Machine

A full function triple feed flatbed with an XXL hook, 12mm stitch and 18mm air lift, for leather and upholstery production.

5.0 on Google from 10 reviews of SEWPRO

  • Stitch length12mm
  • Thread sizes69-207
  • Foot liftMax 18mm
  • Max speed3000 SPM

Materials

  • Canvas
  • Extra-thick materials
  • Heavy-weight fabrics
  • Leather
  • Upholstery
  • Vinyl

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

  • Set up, timed and test-sewn on your material before delivery
  • 1 year warranty on parts and workmanship
  • Delivered and installed in PA and nearby, freight nationwide
  • Phone and text support from the people who sold it

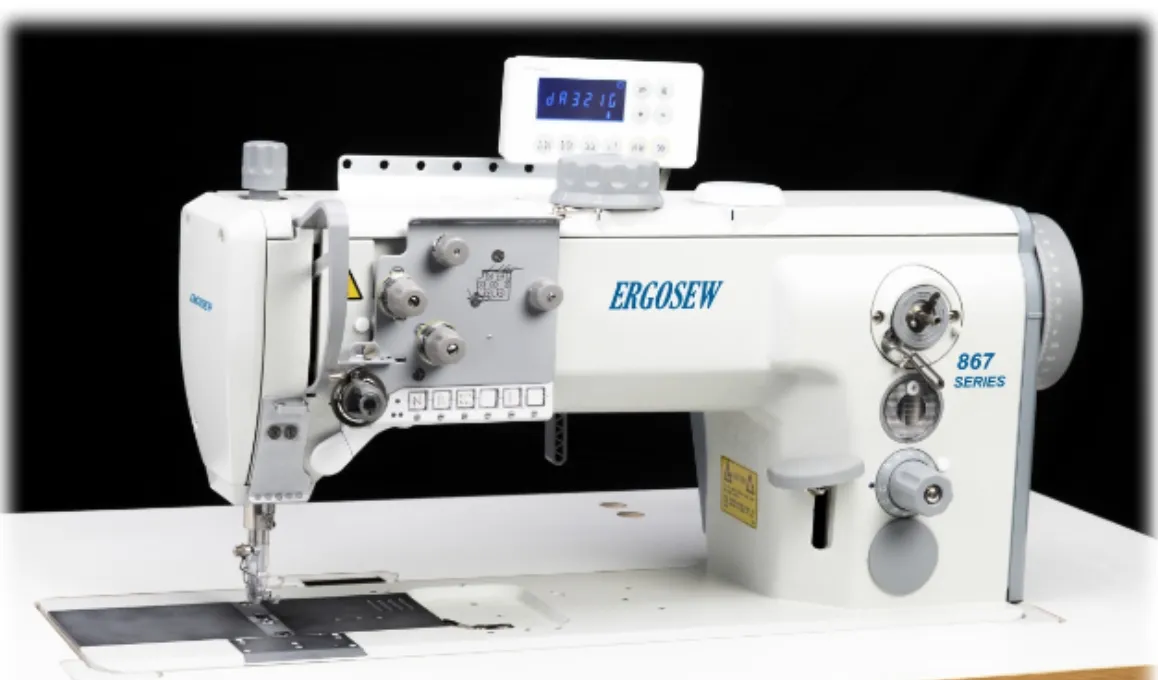

About the 867 series

The ERGOSEW 867 is the premium flatbed in our range. It follows the 867 class pattern used in the best European upholstery and leather plants: triple feed with a large alternating foot stroke, a 32mm vertical hook that holds roughly twice the bobbin thread of a standard hook, a 12mm stitch and an 18mm pneumatic foot lift. The direct drive servo gives automatic back-tack, thread trimming and needle positioning.

It sews thread from 69 to 207 through leather, vinyl, canvas and technical textiles, and the climbing device keeps the stitch length even when the foot steps onto a thicker seam. Automotive seat makers, leather furniture shops and bag factories buy it for the stitch quality on decorative topstitch as much as for the speed.

There is a 30 inch long arm version, the 867-30, that we demonstrate on video. It is sold on request.

Also available: ERGOSEW 867-30 long arm version, 30 inches under the arm.

Technical data: ERGOSEW 867 series

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Needle System134-35 (Sizes 110-180)
Maximum Stitch Length12mm
Maximum Sewing Speed3000 SPM
Hook TypeXXL 32mm Vertical Hook
Auto Foot Lift (Air)Max 18mm
Automatic FunctionsBack-tack, Thread Trimmer
Thread Sizes69-207
Climbing DeviceYes
MotorDC Direct Drive 220V Single Phase Servo

Included in a SEWPRO quote

  • Head, table and stand
  • Servo motor, needle positioner where the head supports it
  • Feet, folders, clamps or guides for your product
  • A first box of Schmetz needles in the right system, point and size
  • Threaded, timed and sewn on your material before delivery
  • Delivery and installation in PA and nearby, freight elsewhere
  • 1 year warranty, phone support for the life of the machine
Schmetz

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 134-35, sizes 110 to 180. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Features

What is on the machine

  • Triple Feed SystemEnsures perfect feeding on thick or layered fabrics.
  • XXL 32mm Vertical HookReduces bobbin changes for long runs.
  • Direct Drive Servo MotorEnergy-efficient with powerful torque and precise control.
  • Automatic Back-Tack & Thread TrimmerBoosts productivity and consistency.
  • Auto Foot Lift (18mm)Handles bulky workpieces effortlessly.
  • Climbing DeviceSmoothly transitions over seam thickness changes.

Applications

What gets sewn on the 867 series

The ERGOSEW 867 Series is a high-performance single-needle lockstitch flatbed machine engineered for all kinds of medium-heavy sewing applications . Featuring a triple feed system (needle feed, walking foot, and bottom feed) and an XXL 32mm vertical hook, it ensures maximum stitch consistency, superior material handling, and reduced operator fatigue.

Built for precision and durability, the ERGOSEW 867 Series comes equipped with a DC direct drive 220V single-phase servo motor that delivers energy efficiency, exceptional torque, smooth acceleration, and precise needle positioning . Whether you're sewing leather, canvas, technical textiles, or upholstery, this machine offers unmatched control and productivity.

  • Upholstery manufacturing
  • Leather goods production
  • Automotive and marine interiors
  • Canvas, tents, and tarpaulin sewing
  • Technical textile assembly

Videos

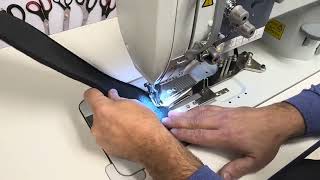

The 867 series running in our shop

Recorded in Ephrata on real material. No stock footage.

Compare

867 series against the alternatives

The models we would put next to it on the phone, and why.

  • SEWPRO 0617D-7

    Lighter automatic walking foot at a lower price.

  • SEWPRO 1508NH

    Manual heavy flatbed for shops that do not need automation.

  • SEWPRO 1760

    Double needle post bed for topstitch on shaped pieces.

ModelERGOSEW 867 seriesThis machineSEWPRO 0617D-7Walking Foot Lockstitch for Canvas and UpholsterySEWPRO 1508NHUnison-Feed Lockstitch for Extra Heavy-Weight MaterialsSEWPRO 1760Post-Bed Double Needle Unison Feed Lockstitch Machine
Stitch length12mm8mm10mm8mm
Foot liftMax 18mm16mm5/8" (by Knee)14mm (Pneumatic)
Thread sizes69-20746-13846-13846-138
Needle system134-35 (Sizes 110-180)Schmetz 135×17 (Sizes 90-140)135×17 (Nm160) Sizes Nm125-Nm180135×17 (Sizes 110-160)
Max speed3000 SPMOn request2,000 RPM1,800 SPM
HookXXL 32mm Vertical HookHorizontal Large Rotating Hook (M Size Bobbin)Vertical-Axis Large HookLarge Vertical-Axis Rotary Hooks
Arm / post / fieldOn requestOn requestOn request7"

Questions about the 867 series

Why does it need air?

The 18mm automatic foot lift and the climbing device are pneumatic. Any quiet shop compressor with a regulator at 70 to 90 psi runs it.

Is the 867-30 long arm available?

Yes. It is the same head with 30 inches between the needle and the arm. We have it on video; call for a quote.

Is this the same as a Dürkopp Adler 867?

It follows the same class design and takes the same needle system and feet. We build it to our specification with the hook, motor and controls we trust, and we service it ourselves.

Request a quote

ERGOSEW 867 series

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 867 series fits or point you to the model that does, then quote it complete with a delivery date.

ERGOSEW 867 series

Medium-Heavy Triple Feed Lockstitch Sewing Machine

(717) 940-0129Monday to Friday, 7am to 5pm. Showroom visits by appointment.

Request concerns the ERGOSEW 867 series. Tell us what you sew and we will confirm it is the right machine, quote it complete with table and servo motor, and give you a delivery date.

Answered within one business day. No mailing list.

Call TextGet a quote
