Long armSKU 1241510 class, long arm

SEWPRO 1510L-18-7

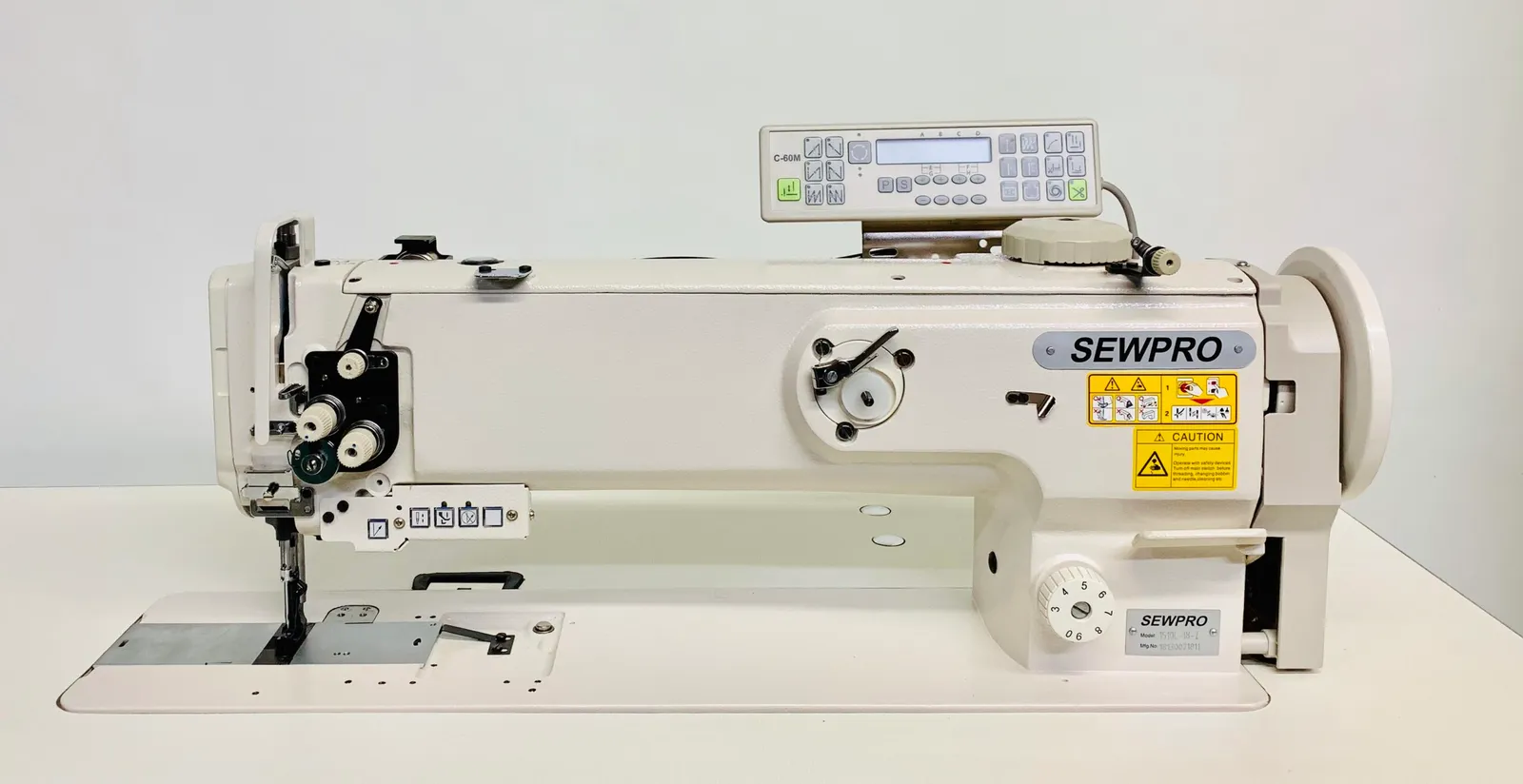

Long-Arm Walking Foot Lockstitch with Full Automation

An 18 inch long arm with full automation and a 110V Ho Hsing servo, the factory version of the 1508L-18.

5.0 on Google from 10 reviews of SEWPRO

Arm length18"
Stitch length9mm
Thread sizes46-138
Foot lift5/8"

Materials

Leather
Canvas
Vinyl
Upholstery fabric

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 1510L-18-7

The 1510L-18-7 is the 1508 class long arm with automatic back-tack, pneumatic foot lift and an under-bed thread trimmer, driven by a 110V 750W Ho Hsing servo with needle positioning. The head keeps the vertical-axis large hook with an M bobbin, the 9mm stitch and the climbing device, so it sews exactly what the 1508L-18 sews, with the operator doing less.

It runs 46 to 138 thread through 135x17 needles. The 110V motor is the reason many smaller shops choose it over the 220V direct drive models.

Technical data: SEWPRO 1510L-18-7

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Long-Arm Flat-Bed Walking Foot Lockstitch
Arm Length	18"
Max Sewing Speed	1800 RPM (Material Dependent)
Max Stitch Length	9mm
Presser Foot Lift	5/8" (Pneumatic)
Hook Type	Vertical-Axis Large Hook
Bobbin Size	M
Feed System	Unison-Feed Walking Foot
Needle System	135×17 (Sizes 110-180)
Thread Sizes	46-138
Extra Features	Auto Back-Tack, Auto Foot Lift, Auto Thread Trimmer, Forward/Reverse Stitch, Climbing Device
Motor	110V 750W Ho Hsing Servo with Needle Positioning

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 180. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

18" Long ArmExtra workspace for large and bulky projects.
Full AutomationAuto back-tack, auto foot lift, and automatic thread trimming for high-efficiency sewing.
Walking Foot with Unison FeedEven feeding on thick and layered materials.
Vertical-Axis Large HookSmooth thread handling for heavy threads.
Ergonomic Servo MotorQuiet, energy-efficient, and precise control.

Applications

What gets sewn on the 1510L-18-7

Upholstery manufacturing (furniture, marine, automotive)
Heavy leather and vinyl products
Canvas and industrial covers
Large textile assemblies for tents and awnings
High-volume production sewing environments

Compare

1510L-18-7 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 1508L-18
Manual version of the same head.
SEWPRO 1510L-25-7
25 inch arm, 220V, 7mm stitch.

Model	SEWPRO 1510L-18-7This machine	SEWPRO 1508L-18Long-Arm Walking Foot Lockstitch Machine	SEWPRO 1510L-25-725" Long-Arm Walking Foot Lockstitch for Upholstery and Leather
Stitch length	9mm	9mm	7mm
Foot lift	5/8" (Pneumatic)	5/8" (Air, Requires Compressed Air)	16mm (Automatic)
Thread sizes	46-138	46-138	69-138
Needle system	135×17 (Sizes 110-180)	135×17 (Sizes 110-180)	135×17 (Sizes 110-180)
Max speed	1800 RPM (Material Dependent)	1800 RPM (Material Dependent)	2,000 RPM
Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook
Arm / post / field	18"	18"	25"

Questions about the 1510L-18-7

Does it sew 9mm with the trimmer?

Yes, this head keeps the 9mm stitch.

Can I turn off the automation?

Yes, back-tack and trimming are switched on the control box.

Request a quote

SEWPRO 1510L-18-7

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1510L-18-7 fits or point you to the model that does, then quote it complete with a delivery date.
