Long armSKU 1221508 class, long arm

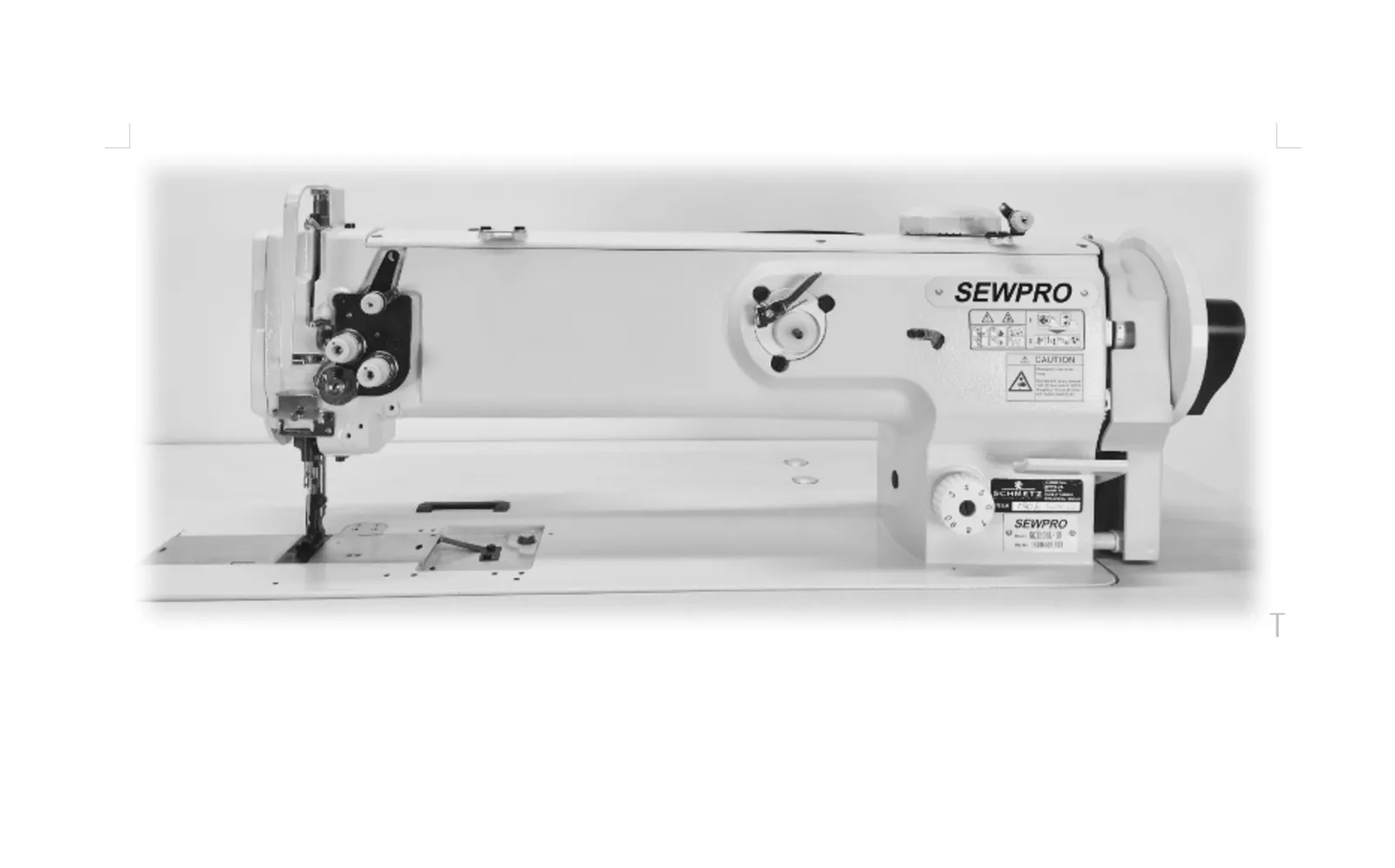

SEWPRO 1508L-18

Long-Arm Walking Foot Lockstitch Machine

The 1508 heavy walking foot on an 18 inch arm, the machine we recommend most for auto upholstery.

5.0 on Google from 10 reviews of SEWPRO

Arm length18"
Stitch length9mm
Thread sizes46-138
Foot lift5/8"

Materials

Leather
Canvas
Vinyl
Upholstery fabric

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 1508L-18

The 1508L-18 is the 1508 class head, vertical-axis large hook, unison feed, 9mm stitch, with 18 inches between the needle and the arm. A car seat cover, a door panel, a boat cushion or a tarp section lies flat to the right of the needle. The air foot lift (5/8 inch) lets the operator raise the foot from the pedal with both hands on the work, and the climbing device keeps the stitch even over a welt or a seam crossing.

It runs thread from 46 to 138 through 135x17 needles at up to 1,800 RPM, and it is the machine in our video titled best sewing machine for auto upholstery. That is not marketing: it is what most trim shops in Pennsylvania end up buying from us.

There is a high-arm version, the 1508L-18H, with 2 inches more clearance under the arm, and a 25 inch version on video.

Also available: SEWPRO 1508L-25 with 25 inch arm, direct drive, puller option; on video.

Who buys it

Automotive upholstery: seat covers, door panels, headliners
Marine cushions, biminis and covers
Furniture panels and slipcovers
Tarps, tents and awnings in 138 thread

Platform and parts

1508 class, long arm

Juki LU-1508 pattern head on an 18 inch arm: vertical-axis large hook, unison feed, 9mm stitch, air foot lift.

Parts: 1508 class feet and plates fit. Needle system 135x17, sizes 110 to 180.

How we deliver it

1Servo motor with needle positioner, sized to the head; a reducer on the extra heavy heads.
2Requires compressed air for the foot lift; regulator and fittings supplied.
3Extended industrial table for the long arm, drawer, thread stand and LED lamp, assembled and leveled.
4Welt foot and the feet your seams need, bobbins, needles.
5Threaded with your thread, timed, tension set and a seam sewn on your material before it leaves Ephrata.

Technical data: SEWPRO 1508L-18

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Long-Arm Flat-Bed Walking Foot Lockstitch
Arm Length	18"
Max Sewing Speed	1800 RPM (Material Dependent)
Max Stitch Length	9mm
Presser Foot Lift	5/8" (Air, Requires Compressed Air)
Hook Type	Vertical-Axis Large Hook
Feed System	Unison-Feed Walking Foot
Needle System	135×17 (Sizes 110-180)
Thread Sizes	46-138
Extra Features	Forward/Reverse Stitch, Climbing Device

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 180. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

18" Long ArmExtended workspace for large and bulky projects.
Walking Foot with Unison FeedSmooth, even stitching on thick materials.
Vertical-Axis Large HookReliable performance with heavy threads.
Air Foot Lift (5/8")Effortless lifting for large assemblies.
9mm Stitch LengthIdeal for heavy-duty seams and decorative stitching.

Applications

What gets sewn on the 1508L-18

Upholstery (furniture, marine, automotive)
Heavy leather goods and accessories
Vinyl products and protective covers
Canvas tarps, tents, and awnings
Industrial textile manufacturing
Reinforced seams on outdoor gear

Videos

The 1508L-18 running in our shop

Recorded in Ephrata on real material. No stock footage.

All videos

Compare

1508L-18 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 1508L-18H
Same machine with 2 inches more arm height.
SEWPRO 1510L-18-7
Same class with automatic back-tack, trimmer and foot lift.
SEWPRO 0617DL-18-7
Lighter automated long arm, no air needed.

Model	SEWPRO 1508L-18This machine	SEWPRO 1508L-18HHigh-Arm Long-Arm Walking Foot Lockstitch Machine	SEWPRO 1510L-18-7Long-Arm Walking Foot Lockstitch with Full Automation	SEWPRO 0617DL-18-7Long-Arm Walking Foot Lockstitch for Upholstery and Marine Canvas
Stitch length	9mm	9mm	9mm	8mm
Foot lift	5/8" (Air, Requires Compressed Air)	5/8" (Air, Requires Compressed Air)	5/8" (Pneumatic)	16mm (Auto)
Thread sizes	46-138	46-138	46-138	46-138
Needle system	135×17 (Sizes 110-180)	190R (Sizes 110-180)	135×17 (Sizes 110-180)	Schmetz 135×17 (Sizes 90-140)
Max speed	1800 RPM (Material Dependent)	1800 RPM (Material Dependent)	1800 RPM (Material Dependent)	Material Dependent
Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook	Horizontal Large Rotating Hook
Arm / post / field	18"	18"	18"	18"

Questions about the 1508L-18

Why not just a standard arm?

Because a seat cover rolled up under a 10 inch arm fights the operator on every seam. The 18 inch arm is the single biggest quality-of-life change an upholstery shop makes.

What is the 1508L-25?

The same head with 25 inches under the arm, shown on video with a top and bottom feed puller and with direct drive. Ask for a quote.

Air or no air?

This model has an air foot lift. If you do not have a compressor, the 1510L-18-7 and 0617DL-18-7 are alternatives, or we fit a knee lift.

Request a quote

SEWPRO 1508L-18

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1508L-18 fits or point you to the model that does, then quote it complete with a delivery date.
