Long armSKU 1251510 class, long arm

SEWPRO 1510L-25-7

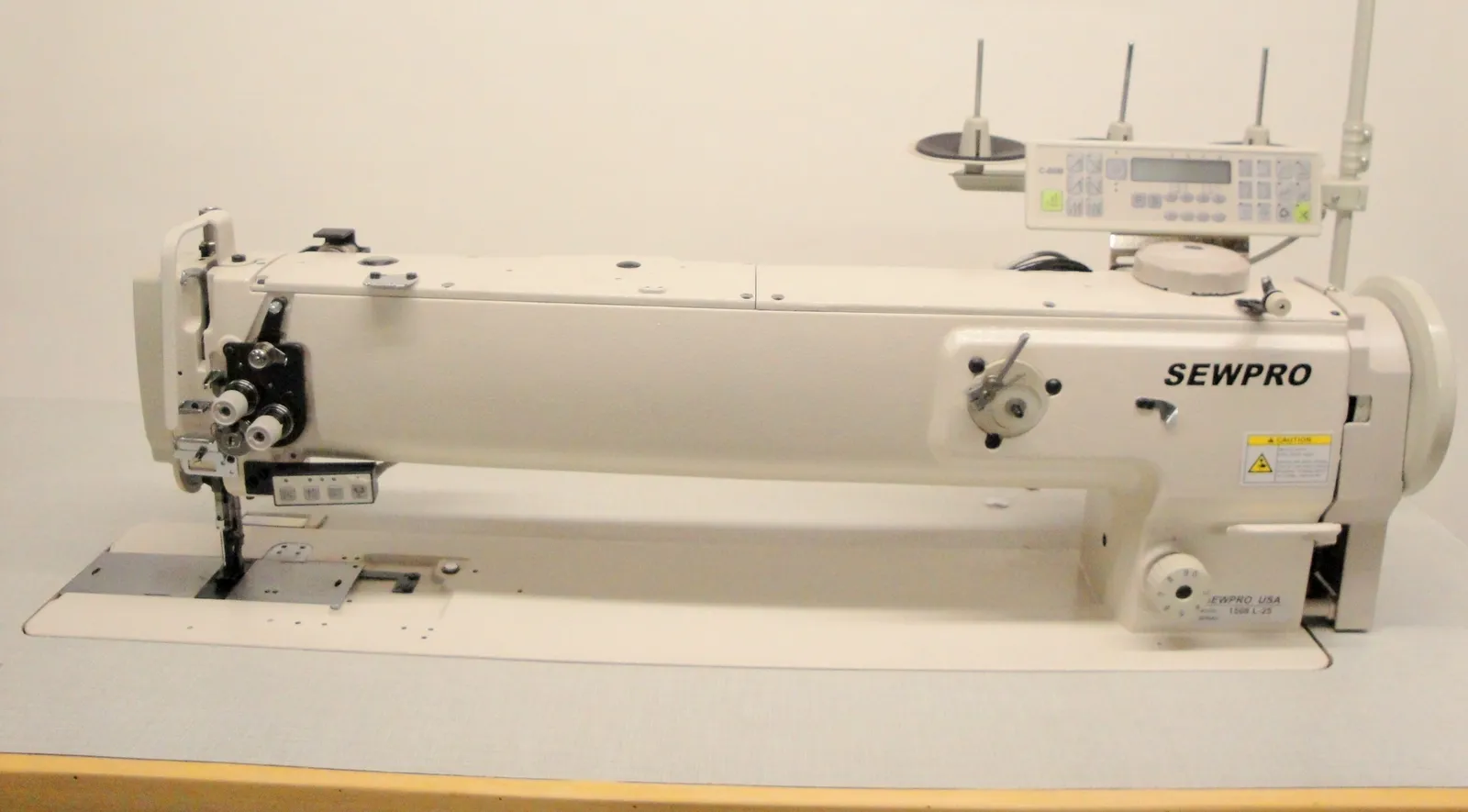

25" Long-Arm Walking Foot Lockstitch for Upholstery and Leather

A 25 inch unison feed long arm with automatic foot lift and trimmer, for seats, marine interiors and furniture.

5.0 on Google from 10 reviews of SEWPRO

Arm length25"
Stitch length7mm
Thread sizes69-138
Foot lift16mm

Materials

Leather
Canvas
Vinyl
Upholstery fabric

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 1510L-25-7

The 1510L-25-7 gives 25 inches between the needle and the arm, which is enough for a full seat back, a sofa cushion panel or a bimini section without rolling. The head is unison feed with a vertical-axis large hook, 7mm stitch, 16mm automatic foot lift and an under-bed thread trimmer, driven by a servo under the table.

It sews light to heavy upholstery materials with 69 to 138 thread at up to 2,000 RPM. Shops that already own a 1508L-18 buy it as the second machine for the big panels.

Technical data: SEWPRO 1510L-25-7

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Long-Arm Walking Foot Lockstitch
Arm Length	25"
Max Sewing Speed	2,000 RPM
Max Stitch Length	7mm
Presser Foot Lift	16mm (Automatic)
Hook Type	Vertical-Axis Large Hook
Feed System	Unison Feed
Needle System	135×17 (Sizes 110-180)
Thread Sizes	69-138
Extra Features	Thread Under-Trimmer

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 180. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

25" Extra Long ArmPerfect for large, bulky sewing projects.
Unison Feed Walking FootSmooth, even stitching on layered materials.
Vertical-Axis Large HookHandles heavy threads reliably.
Automatic Foot Lift (16mm)Reduces operator fatigue and improves workflow.
Thread Under-TrimmerSpeeds up production and delivers clean finishes.

Applications

What gets sewn on the 1510L-25-7

Automotive seat upholstery
Marine seating and interiors
Furniture upholstery
Leather and vinyl products
Canvas covers and awnings
Industrial textile assembly

Compare

1510L-25-7 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 1510DL-25-7
Same spec with direct drive on the head.
SEWPRO 1508L-18
18 inch manual long arm, 9mm stitch.
SEWPRO 243-25
25 inch extra heavy walking foot with 794 needles.

Model	SEWPRO 1510L-25-7This machine	SEWPRO 1510DL-25-7Long Arm Unison-Feed Lockstitch Machine	SEWPRO 1508L-18Long-Arm Walking Foot Lockstitch Machine	SEWPRO 243-2525" Long Arm Extra Heavy-Duty Walking Foot Lockstitch
Stitch length	7mm	7mm	9mm	14mm
Foot lift	16mm (Automatic)	16mm (Air Operated)	5/8" (Air, Requires Compressed Air)	20mm
Thread sizes	69-138	69-138	46-138	138-415
Needle system	135×17 (Sizes 110-180)	135×17 (Sizes 110-180)	135×17 (Sizes 110-180)	794 (Sizes 160-230)
Max speed	2,000 RPM	2,000 RPM	1800 RPM (Material Dependent)	800 RPM
Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook	Large Shuttle Hook
Arm / post / field	25"	On request	18"	25"

Questions about the 1510L-25-7

25 inches or 18?

If you sew whole seat backs, sofa panels or biminis, 25. For seat bottoms, door panels and cushions, 18 is enough and the machine is cheaper.

Request a quote

SEWPRO 1510L-25-7

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1510L-25-7 fits or point you to the model that does, then quote it complete with a delivery date.
