Programmable pattern sewersSKU 111Extra heavy 130 by 60mm pattern sewer

SEWPRO PSM-1306CH

Extra Heavy-Duty Programmable Sewing Machine (130x60mm)

An extra heavy 130 by 60mm programmable sewer with a barrel shuttle and 794 needles, for rope, webbing and 415 thread.

5.0 on Google from 10 reviews of SEWPRO

Sewing field130x60mm
Thread sizes138-415
Foot liftPneumatic
Max speed600 RPM

Materials

Webbing

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

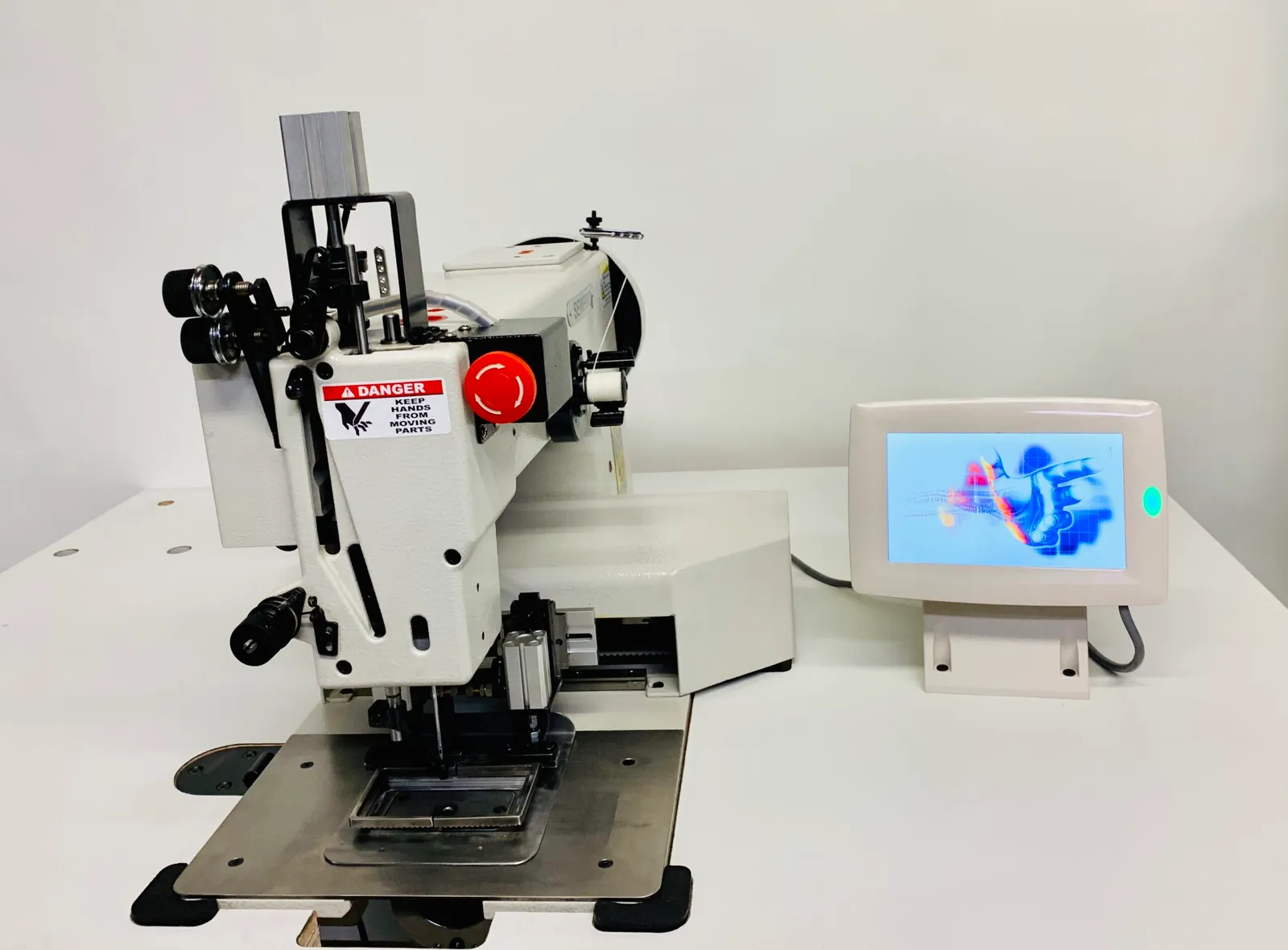

About the PSM-1306CH

The PSM-1306CH sews patterns in a 130 by 60mm field with the stitch-forming parts of a heavy strap machine: a barrel shuttle, a Schmetz 794 needle from 180 to 250 and thread from 138 to 415. It is for rope eyes, climbing and safety harness, sling ends and small rated reinforcements, where a rotary hook pattern sewer cannot hold the thread.

The pneumatic foot drive clamps the part, the touch-screen programmer stores 120 patterns, the clamp can be swapped for different products, and an optional hot knife seals synthetic thread ends. The top speed of 600 RPM is right for this thread. We show it on video.

Technical data: SEWPRO PSM-1306CH

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Extra Heavy-Duty Programmable Sewing Machine
Working Area	130x60mm
Max Sewing Speed	600 RPM (Material Dependent)
Presser Foot Drive	Pneumatic
Hook Type	Barrel Shuttle Hook
Needle System	Schmetz 794 (Sizes 180-250)
Thread Sizes	138-415
Thread Trimmer	Hot Knife Cutter (Optional)
Control	Touch-Screen Display/Programmer
Pattern Memory	Up to 120 Patterns
Extra Features	Changeable Clamping Device for Different Materials
Power Supply	220V Single Phase

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 794, sizes 180 to 250. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Compact 130x60mm Sewing AreaPerfect for small industrial products.
Extra Heavy-Duty BuildHandles rope, webbing, and dense coated fabrics.
Programmable FunctionalityStore and recall up to 120 stitch patterns.
Barrel Shuttle HookReliable operation with thick, heavy threads.
Optional Hot Knife CutterClean, sealed thread trimming for synthetics.

Applications

What gets sewn on the PSM-1306CH

Rope manufacturing and repair
Safety harnesses and climbing gear
Industrial webbing and straps
Marine and cargo restraint products
Tactical, outdoor, and military gear
Small reinforcement zones on heavy textiles

Videos

The PSM-1306CH running in our shop

Recorded in Ephrata on real material. No stock footage.

All videos

Compare

PSM-1306CH against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 210E-1306
Same field, medium-weight, faster, cheaper.
SEWPRO PSM-5020CH
500 by 200mm extra heavy field.
SEWPRO PSM-733-3020
300 by 200mm with 1000H needles.

Model	SEWPRO PSM-1306CHThis machine	SEWPRO 210E-1306Programmable Pattern Sewing Machine (130x60mm) with CP520 Control	SEWPRO PSM-5020CH500x200mm Extra Heavy-Duty Programmable Sewing Machine	SEWPRO PSM-733-3020Extra Heavy-Duty Programmable Sewing Machine
Stitch length	On request	0.5-12.5mm	On request	12mm
Foot lift	Pneumatic	25mm (Air)	Pneumatic	Pneumatic
Thread sizes	138-415	On request	138-415	138-415 (Up to 8-Cord Depending on Material)
Needle system	Schmetz 794 (Sizes 180-250)	135×17 (Sizes 90-140)	Schmetz 794 (Sizes 180-250)	Schmetz 1000H (Sizes 230-330)
Max speed	600 RPM (Material Dependent)	2,500 RPM (at 3mm stitch length or less)	600 RPM (Material Dependent)	500 RPM (Depends on Material and Thread Size)
Hook	Barrel Shuttle Hook	On request	Barrel Shuttle Hook	Super-Large Shuttle Hook
Arm / post / field	130x60mm	130x60mm	500x200mm	300×200mm

Questions about the PSM-1306CH

Why a barrel shuttle in a pattern sewer?

Because 277 to 415 thread needs it. Rotary hook pattern sewers top out around 207.

Request a quote

SEWPRO PSM-1306CH

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the PSM-1306CH fits or point you to the model that does, then quote it complete with a delivery date.
