Programmable pattern sewersSKU 106210E class pattern sewer

SEWPRO 210E-1306

Programmable Pattern Sewing Machine (130x60mm) with CP520 Control

A 130 by 60mm programmable pattern sewer with touch-screen control, the tie-down strap and label machine.

5.0 on Google from 10 reviews of SEWPRO

Sewing field130x60mm
Stitch length0.5-12.5mm
Foot lift25mm
Max speed2,500 RPM

Materials

Leather
Webbing

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 210E-1306

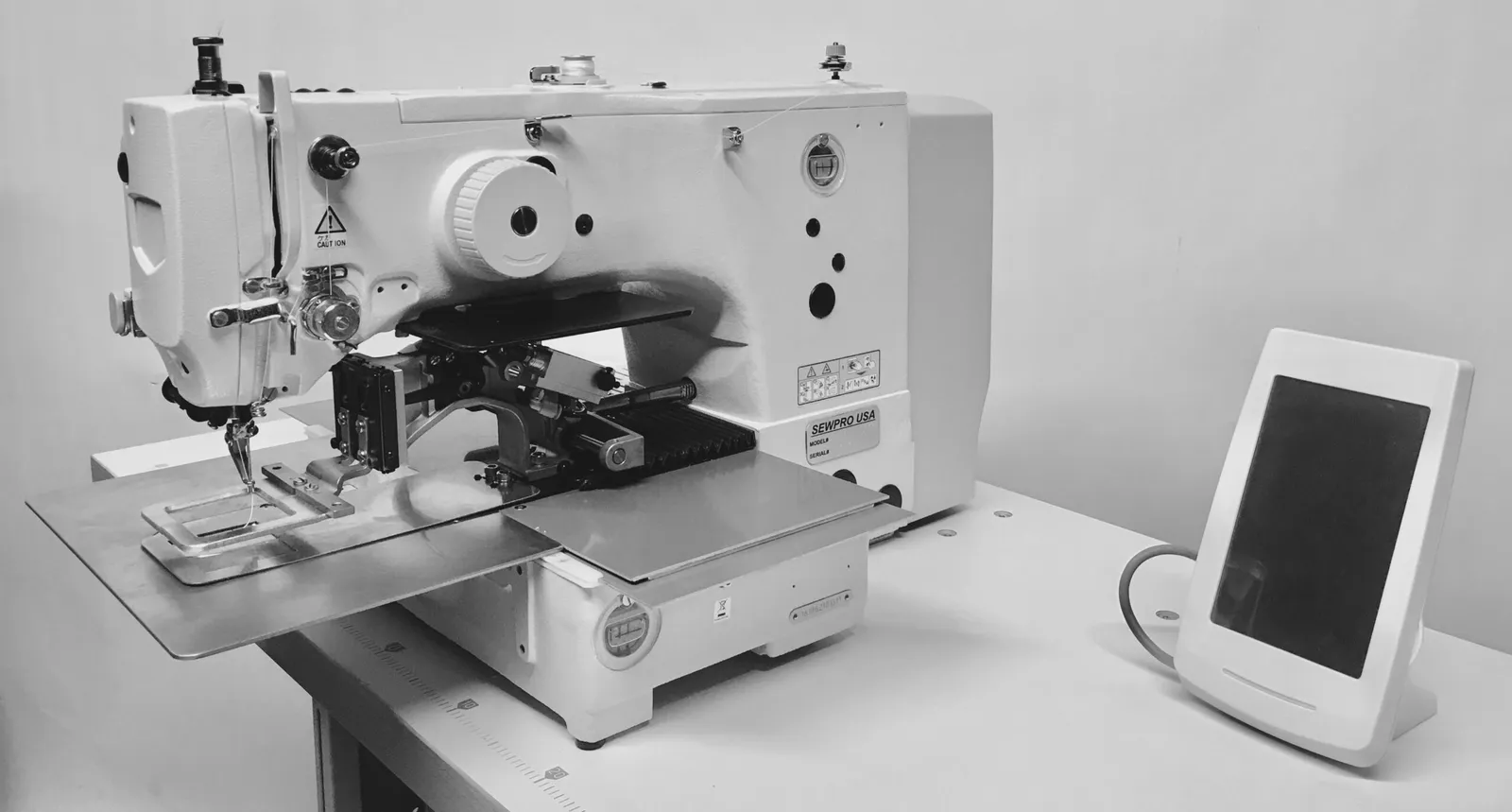

The 210E-1306 is a pattern sewer: the operator loads the part under the pneumatic clamp and the machine sews the stored program in a 130 by 60mm field. Box-X and W patterns on tie-down strap ends, labels, bartacks, decorative stitching on leather, small reinforcement patterns. The CP520 touch-screen control programs on the machine and stores patterns on a USB drive.

It sews at up to 2,500 stitches per minute with a stitch from 0.5 to 12.5mm, lifts the clamp 25mm, and takes 135x17 needles from 90 to 140. We show it on video sewing tie-down straps, which is what most of the ones we sell do all day.

It is a medium-weight head. For 277 and 415 thread on heavy webbing the PSM-1306CH uses the same field with a barrel shuttle.

Technical data: SEWPRO 210E-1306

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Programmable Pattern Sewing Machine
Control System	CP520 Touch Screen On-Board Programming
Sewing Area	130x60mm
Max Sewing Speed	2,500 RPM (at 3mm stitch length or less)
Stitch Length	0.5-12.5mm
Needle Bar Stroke	41.2mm
Needle System	135×17 (Sizes 90-140)
Feeding Frame Lift	25mm (Air)
Jump Foot Stroke	0-3.5mm Standard (Max 7.0mm)
Memory	USB Drive Pattern Storage
Motor	500W Direct Drive Servo
Power Supply	AC 220-240V Single Phase

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 90 to 140. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Compact 130x60mm Sewing AreaIdeal for small reinforcement and label applications.
CP520 Touch-Screen ControlOn-board programming for easy operation.
USB Pattern StorageSave and transfer stitch programs effortlessly.
Air-Powered Feeding FrameHandles bulkier materials with ease.
Precision Jump FootAdjustable for different material thicknesses.

Applications

What gets sewn on the 210E-1306

Reinforcement stitching on apparel and workwear
Attaching labels, patches, and badges
Sewing straps, tabs, and small fabric assemblies
Decorative pattern sewing for leather goods
Precision work in tactical and outdoor gear manufacturing

Videos

The 210E-1306 running in our shop

Recorded in Ephrata on real material. No stock footage.

All videos

Compare

210E-1306 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO PSM-1306CH
Same field, extra heavy with barrel shuttle for 415 thread.
SEWPRO 210E-2210
220 by 100mm field, faster.
SEWPRO 1900B
Bartacker with a 30 by 40mm field.

Model	SEWPRO 210E-1306This machine	SEWPRO PSM-1306CHExtra Heavy-Duty Programmable Sewing Machine (130x60mm)	SEWPRO 210E-2210Programmable Pattern Sewing Machine with 220×100mm Area	SEWPRO 1900BHeavy-Weight Programmable Pattern Sewing Machine
Stitch length	0.5-12.5mm	On request	0.1-12.5mm	0.1mm-10mm (0.1 Step)
Foot lift	25mm (Air)	Pneumatic	25mm	14mm
Thread sizes	On request	138-415	On request	On request
Needle system	135×17 (Sizes 90-140)	Schmetz 794 (Sizes 180-250)	135×17 (Sizes 90-140)	DP×17 (#21)
Max speed	2,500 RPM (at 3mm stitch length or less)	600 RPM (Material Dependent)	2800 RPM (3mm Stitch or Less)	3,000 Stitches/Minute
Hook	On request	Barrel Shuttle Hook	On request	On request
Arm / post / field	130x60mm	130x60mm	220×100mm	30mm (L) × 40mm (W)

Questions about the 210E-1306

How are patterns made?

On the touch screen, by entering points and stitch length, or on a computer and loaded by USB. We program your first patterns before delivery.

What thread can it run?

Up to 138 comfortably, 207 with a size 140 needle on the right material. For heavier thread the PSM-1306CH.

Request a quote

SEWPRO 210E-1306

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 210E-1306 fits or point you to the model that does, then quote it complete with a delivery date.
