Programmable pattern sewersSKU 113Extra heavy 500 by 200mm pattern sewer

SEWPRO PSM-5020CH

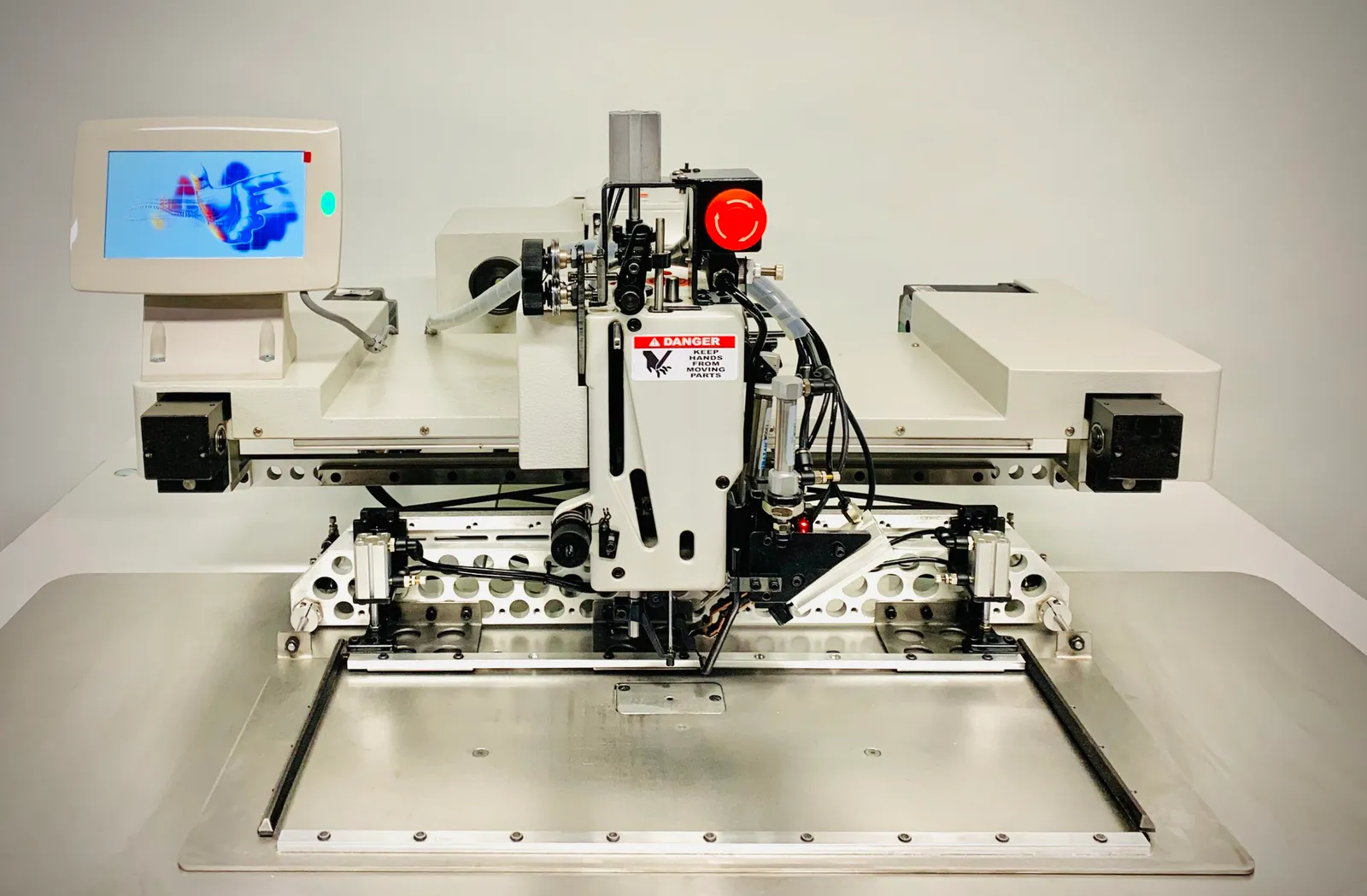

500x200mm Extra Heavy-Duty Programmable Sewing Machine

An extra heavy 500 by 200mm programmable sewer with a barrel shuttle, for long reinforcement patterns on slings and straps.

5.0 on Google from 10 reviews of SEWPRO

Sewing field500x200mm
Thread sizes138-415
Foot liftPneumatic
Max speed600 RPM

Materials

Leather
Webbing

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the PSM-5020CH

The PSM-5020CH gives the barrel shuttle, 794 needle and 138 to 415 thread range of the PSM-1306CH a field half a meter long. That covers the full stitch pattern on a sling eye, a multi-row reinforcement along a cargo strap, a harness junction with several loops, or a large leather or coated panel. A cassette-style clamp lets one part be loaded while the previous one sews.

The pneumatic foot drive, the 120-pattern touch-screen programmer and the optional hot knife are the same as on the smaller machine; the top speed is 600 RPM.

Technical data: SEWPRO PSM-5020CH

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Extra Heavy-Duty Programmable Sewing Machine
Working Area	500x200mm
Max Sewing Speed	600 RPM (Material Dependent)
Presser Foot Drive	Pneumatic
Hook Type	Barrel Shuttle Hook
Needle System	Schmetz 794 (Sizes 180-250)
Thread Sizes	138-415
Thread Trimmer	Hot Knife Cutter (Optional)
Control	Touch-Screen Display/Programmer
Pattern Memory	Up to 120 Patterns
Extra Features	Multi-Cycle Sewing with Cassette-Style Clamp
Power Supply	220V Single Phase

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 794, sizes 180 to 250. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Large 500x200mm Sewing AreaHandles oversized industrial products.
Extra Heavy-Duty BuildDesigned for thick webbing, leather, and coated fabrics.
Programmable StitchingStore and recall up to 120 custom patterns.
Barrel Shuttle HookReliable performance with heavy threads.
Optional Hot Knife CutterClean thread trimming without fraying.

Applications

What gets sewn on the PSM-5020CH

Industrial webbing and tie-down straps
Safety harnesses and lifting slings
Cargo restraint systems
Large leather or synthetic panels
Outdoor and marine protective covers
Military and tactical gear manufacturing

Compare

PSM-5020CH against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO PSM-1306CH
130 by 60mm field, same head.
SEWPRO PSM-733-3020
300 by 200mm with 1000H needles for 8-cord.
SEWPRO 224E-6040
600 by 400mm medium-weight large field.

Model	SEWPRO PSM-5020CHThis machine	SEWPRO PSM-1306CHExtra Heavy-Duty Programmable Sewing Machine (130x60mm)	SEWPRO PSM-733-3020Extra Heavy-Duty Programmable Sewing Machine	SEWPRO 224E-6040Large-Area Programmable Pattern Sewing Machine
Stitch length	On request	On request	12mm	0.5-12.5mm
Foot lift	Pneumatic	Pneumatic	Pneumatic	25mm (Air)
Thread sizes	138-415	138-415	138-415 (Up to 8-Cord Depending on Material)	On request
Needle system	Schmetz 794 (Sizes 180-250)	Schmetz 794 (Sizes 180-250)	Schmetz 1000H (Sizes 230-330)	135×17 (Sizes 90-140)
Max speed	600 RPM (Material Dependent)	600 RPM (Material Dependent)	500 RPM (Depends on Material and Thread Size)	2500 RPM (3mm Stitch or Less)
Hook	Barrel Shuttle Hook	Barrel Shuttle Hook	Super-Large Shuttle Hook	On request
Arm / post / field	500x200mm	130x60mm	300×200mm	600×400mm

Questions about the PSM-5020CH

What is multi-cycle sewing?

Two cassette clamps: the operator loads one while the machine sews the other, so the head never waits.

Request a quote

SEWPRO PSM-5020CH

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the PSM-5020CH fits or point you to the model that does, then quote it complete with a delivery date.
