Programmable pattern sewersSKU 110733 class pattern sewer

SEWPRO PSM-733-3020

Extra Heavy-Duty Programmable Sewing Machine

The 733 class in a programmable sewer: 300 by 200mm field, super-large shuttle, thread to 415 and 8-cord, for lifting slings.

5.0 on Google from 10 reviews of SEWPRO

Sewing field300×200mm
Stitch length12mm
Thread sizes138-415
Foot liftPneumatic

Materials

Awnings
Extra-thick materials
Heavy-duty bags and luggage
Heavy-weight fabrics

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

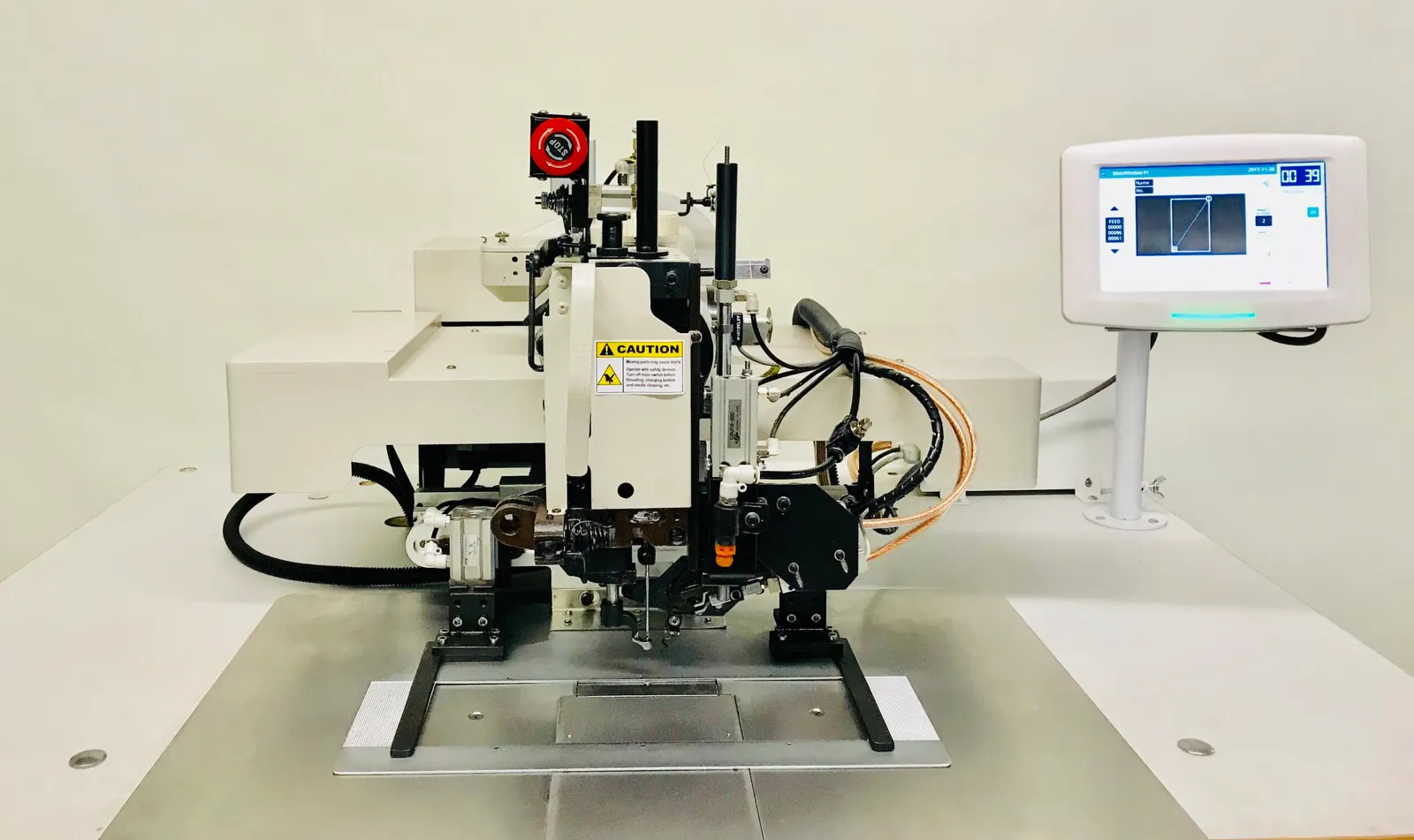

About the PSM-733-3020

The PSM-733-3020 is the heaviest pattern sewer we build. It forms the stitch the way the 733 flatbed does, with a super-large shuttle and Schmetz 1000H needles from 230 to 330, so it sews rated lifting slings, multi-layer webbing and cargo straps with thread up to 415 and 8-cord. The field is 300 by 200mm, the stitch goes to 12mm, and 120 patterns are stored on the touch-screen programmer.

The 750W motor runs through a 1:5 ratio for torque at 500 RPM, the pneumatic foot drive holds layered webbing flat, and an optional hot knife seals thread ends. Sling makers buy it because the pattern is identical on every sling and the inspector can see it.

Technical data: SEWPRO PSM-733-3020

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Extra Heavy-Duty Programmable Sewing Machine
Working Area	300×200mm
Max Sewing Speed	500 RPM (Depends on Material and Thread Size)
Max Stitch Length	12mm
Thread Sizes	138-415 (Up to 8-Cord Depending on Material)
Needle System	Schmetz 1000H (Sizes 230-330)
Hook Type	Super-Large Shuttle Hook
Power	220V Single Phase, 750W, 1:5 Motor Ratio
Presser Foot Drive	Pneumatic
Pattern Memory	Stores Up to 120 Patterns
Thread Trimmer	Optional Hot Knife Thread Cutter

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 1000H, sizes 230 to 330. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

300×200mm Sewing AreaPerfect for large reinforcement patterns.
Super-Large Shuttle HookExtended sewing without frequent bobbin changes.
Handles Extreme Thread SizesUp to 415 or 8-cord thread.
Programmable OperationStore and recall up to 120 patterns.
Optional Hot Knife CutterClean thread ends and prevent fraying.
Pneumatic Foot LiftConsistent pressure for heavy material feeding.

Applications

What gets sewn on the PSM-733-3020

Multi-layer heavy webbing products
Tie-down and cargo straps
Lifting and rigging slings
Industrial safety harnesses
Military and tactical gear
Marine and outdoor load straps
Large reinforced leather and canvas panels

Videos

The PSM-733-3020 running in our shop

Recorded in Ephrata on real material. No stock footage.

All videos

Compare

PSM-733-3020 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 2600-3020
Rotary hook version for 92 to 346 thread, faster.
SEWPRO PSM-5020CH
500 by 200mm barrel shuttle field.
SEWPRO 733-PRO
The same stitch-forming head as a manual flatbed.

Model	SEWPRO PSM-733-3020This machine	SEWPRO 2600-3020Heavy-Duty Programmable Sewing Machine for Webbing	SEWPRO PSM-5020CH500x200mm Extra Heavy-Duty Programmable Sewing Machine	SEWPRO 733-PROExtra Heavy-Duty Lockstitch Sewing Machine
Stitch length	12mm	12mm	On request	10mm
Foot lift	Pneumatic	Pneumatic	Pneumatic	1 ¼"
Thread sizes	138-415 (Up to 8-Cord Depending on Material)	92-346	138-415	138-554
Needle system	Schmetz 1000H (Sizes 230-330)	Schmetz 7×23 (Sizes 180-250)	Schmetz 794 (Sizes 180-250)	Schmetz 1000H (Sizes 250-330)
Max speed	500 RPM (Depends on Material and Thread Size)	1000 RPM (Depends on Material and Thread)	600 RPM (Material Dependent)	550 RPM
Hook	Super-Large Shuttle Hook	Extra-Large Rotating Hook	Barrel Shuttle Hook	Extra-Large Oscillating Shuttle Hook
Arm / post / field	300×200mm	300×200mm	500x200mm	On request

Questions about the PSM-733-3020

Can it sew 8-cord?

Yes, with the 1000H needle in size 300 to 330 on the right material.

How is it different from the 2600-3020?

Same field. The 2600 has a rotary hook and tops out at 346; the PSM-733 has the shuttle and 1000H needles for 415 and 8-cord. If you sew rated slings, the PSM-733.

Request a quote

SEWPRO PSM-733-3020

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the PSM-733-3020 fits or point you to the model that does, then quote it complete with a delivery date.
