Zig-zagSKU 146266 class

SEWPRO 266

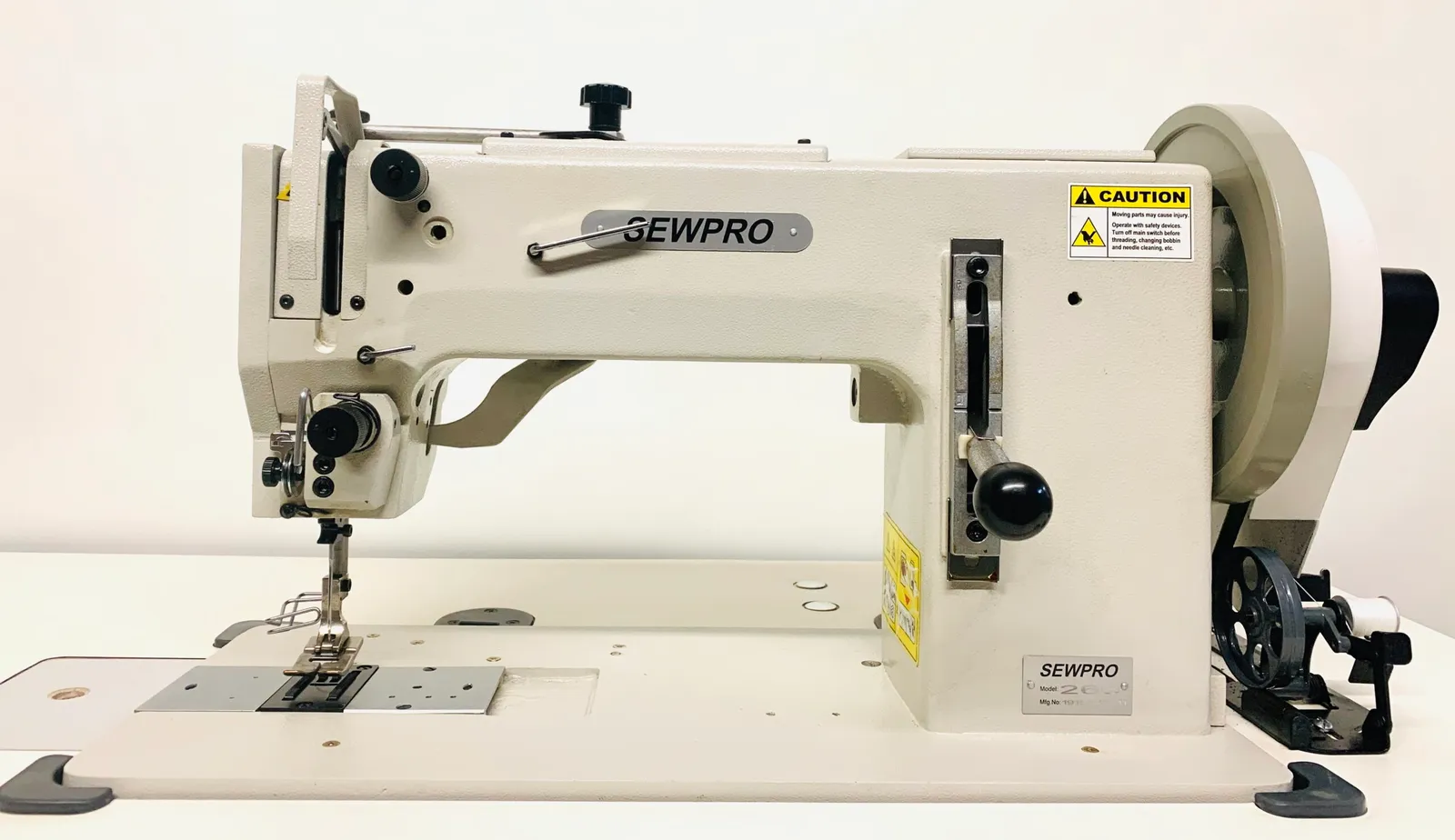

Heavy-duty walking foot zig-zag sewing machine

The sailmaker's extra heavy zig-zag: barrel shuttle, 794 needle, thread to 346, for sailcloth, webbing and heavy canvas.

5.0 on Google from 10 reviews of SEWPRO

Thread sizes138 to 346

Materials

Canvas
Heavy-duty bags and luggage
Sails
Upholstery
Webbing and straps

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 266

The 266 is the heavy zig-zag that sail lofts and rigging shops ask for by number. A barrel shuttle locks thread from 138 to 346, the 794 needle runs from 160 to 230, and reverse is built in. It is built for sailcloth, laminates, webbing, heavy canvas and vinyl, and for the corner patches, reef bands and webbing loops where a lighter zig-zag skips.

Compared with the 204-104A and 204ZTS it is the dedicated sail machine; all three share the barrel shuttle and 794 needle. The 266 is sold on request with the zig-zag width and feed set for your cloth.

Technical data: SEWPRO 266

Specifications

Zig-zag width, stitch length and lift for this head are confirmed on order.

Machine Type	Extra heavy-duty zig-zag and lockstitch
Hook Type	Barrel shuttle
Needle System	794, sizes 160 to 230
Thread Sizes	138 to 346
Extra Features	Reverse stitch

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 794, sizes 160 to 230. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Robust ConstructionBuilt to withstand the rigors of sewing heavy materials.
Powerful Zig-Zag and LockstitchPerfect for joining and reinforcing seams in demanding applications.
Barrel Shuttle-HookEnsures smooth, reliable stitch formation even with thick threads.
Reverse StitchEasily secure seams and prevent unraveling.
Impressive CapacityHandles thread sizes from 138 to 346, and needles from 160 to 230 for maximum versatility.

Applications

What gets sewn on the 266

Sailmaking and sail repair
Canvas work (awnings, tents, covers)
Heavy-duty bags and luggage
Webbing and straps
Upholstery (especially marine or outdoor)

Compare

266 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 204ZTS
12mm bite, top feed, same thread range.
SEWPRO 204-104A
Top and bottom feed heavy zig-zag.
SEWPRO 2153L30
30 inch long arm zig-zag for panel seams.

Model	SEWPRO 266This machine	SEWPRO 204ZTSHeavy-duty walking foot zig-zag with large hook	SEWPRO 204-104AWalking foot zig-zag for sails, upholstery and leather	SEWPRO 2153L3030" long arm walking foot zig-zag machine
Stitch length	On request	10mm	10mm	On request
Foot lift	On request	On request	12mm	On request
Thread sizes	138 to 346	138 to 346	138 to 346	On request
Needle system	794, sizes 160 to 230	794, sizes 160 to 230	794, sizes 160 to 230	135x17
Max speed	On request	800 stitches per minute	800 stitches per minute	On request
Hook	Barrel shuttle	Barrel shuttle	Barrel shuttle	On request
Arm / post / field	On request	On request	On request	30 inches

Questions about the 266

266 or 204ZTS?

Both are barrel shuttle heavy zig-zags with 794 needles. The 204ZTS has a confirmed 12mm bite and a top feed; the 266 is the sailmaker's classic. If you already know you want a 266, we have it; if you are choosing, send a sample of the cloth.

Request a quote

SEWPRO 266

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 266 fits or point you to the model that does, then quote it complete with a delivery date.
