SEWPRO 733-PRO

Extra Heavy-Duty Lockstitch Sewing Machine

Our heaviest flatbed: an extra-large oscillating shuttle, 1000H needles and thread to 554, for slings, harness and sails.

5.0 on Google from 10 reviews of SEWPRO

Stitch length10mm
Thread sizes138-554
Foot lift1 ¼"
Max speed550 RPM

Materials

Leather
Canvas
Webbing

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

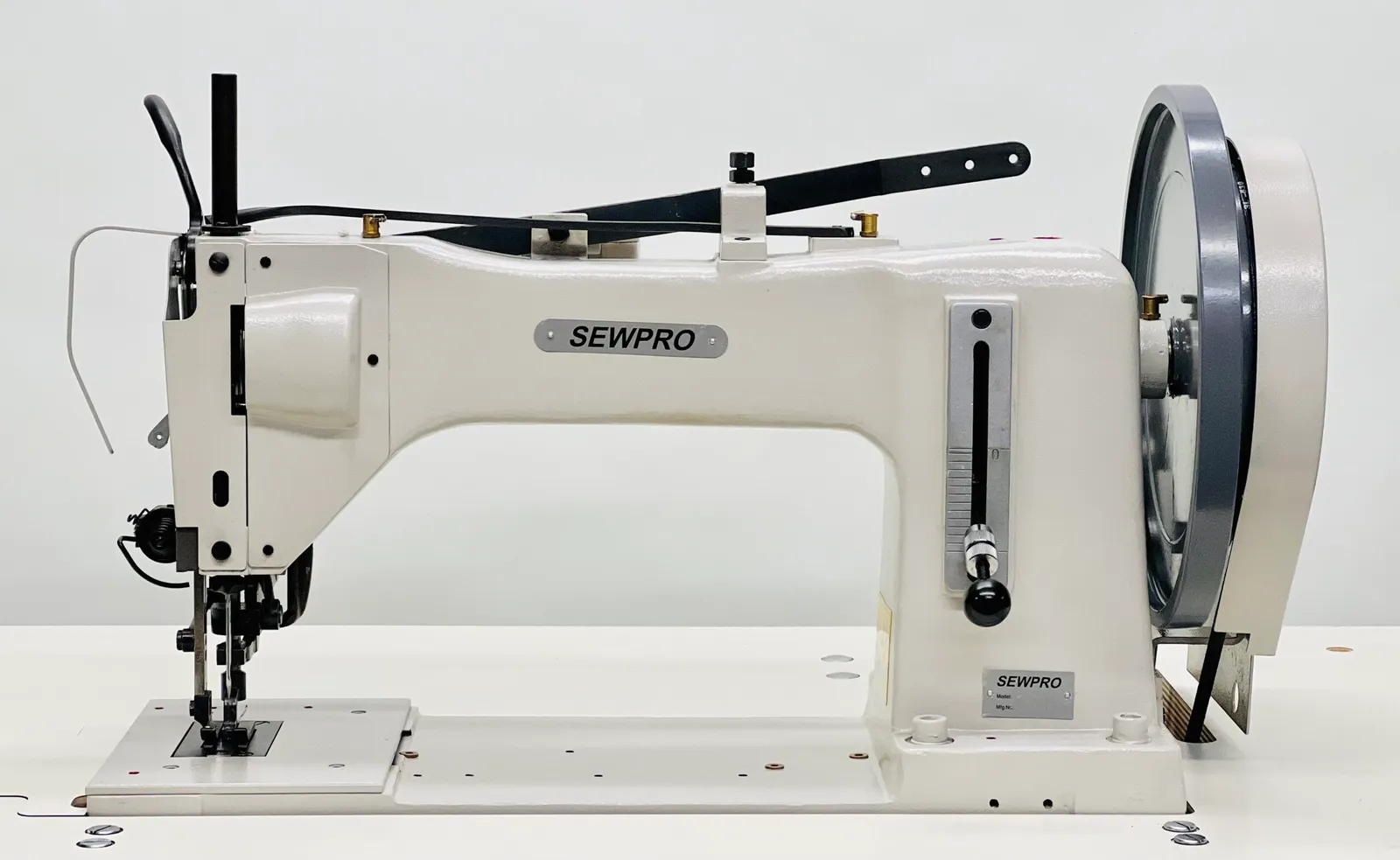

About the 733-PRO

The 733-PRO exists for the seams that nothing else will sew. It takes Schmetz 1000H needles up to size 330, runs bonded thread from 138 to 554 and 8-cord, and forms the stitch in an extra-large oscillating shuttle that holds enough bobbin for a full sling. The stitch goes to 10mm, the foot lifts 1 1/4 inches, and the top speed of 550 RPM is where it should be for a needle this size.

It is a walking foot head, so it feeds layered webbing and canvas evenly, and it is at home on cargo slings, parachute harness, safety harness, sail corners, tents and book bindings. We show it on video sewing a stack of webbing that a conventional machine would not start.

If your work is 138 thread and vinyl, do not buy it. If you make rated lifting gear, you probably need it.

Who buys it

Lifting sling, tie-down and rigging manufacturers
Fall protection and parachute harness
Sail lofts: corner patches, reef points, heavy sailcloth
Heavy tent, tarp and shade structure seams

Platform and parts

733 class

Extra heavy-duty walking foot lockstitch with an extra-large oscillating shuttle and the 1000H needle system.

Parts: 733 class feet and plates. Needle system Schmetz 1000H, sizes 250 to 330.

How we deliver it

1Servo motor with needle positioner, sized to the head: we match the pulley and, on the heavy heads, add a speed reducer so the needle goes through a thick corner one stitch at a time. A 3:1 reducer is standard; the operator sews a stitch at a time through a stack of webbing.
2Heavy-duty table with a reinforced top for the head weight.
3Needle plate and feet for your strap width; hot knife for synthetic webbing on request.
4Threaded with your thread, timed, tension set and a seam sewn on a sample of your material before it leaves Ephrata.

Technical data: SEWPRO 733-PRO

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Extra Heavy-Duty Lockstitch
Max Sewing Speed	550 RPM
Max Stitch Length	10mm
Presser Foot Lift	1 ¼"
Needle System	Schmetz 1000H (Sizes 250-330)
Thread Sizes	138-554
Hook Type	Extra-Large Oscillating Shuttle Hook

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 1000H, sizes 250 to 330. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Extra-Large Shuttle HookHolds more thread for long runs.
Handles Ultra-Thick MaterialsIdeal for webbing, canvas, and leather.
Heavy-Duty Needle SystemCompatible with large industrial needles.
Long Stitch Capability (10mm)Perfect for thick seams.
Durable BuildDesigned for years of continuous industrial use.

Videos

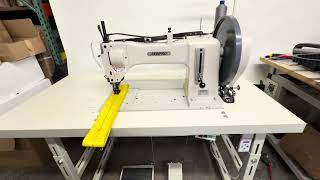

The 733-PRO running in our shop

Recorded in Ephrata on real material. No stock footage.

All videos

Compare

733-PRO against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 733-30
Same head with a 30 inch arm.
SEWPRO 204-420
Barrel shuttle head for thread to 415, faster and lighter.
SEWPRO PSM-733-3020
The same stitch forming head in a programmable pattern machine.

Model	SEWPRO 733-PROThis machine	SEWPRO 733-3030" long arm extra heavy-duty lockstitch machine	SEWPRO 204-420Barrel Shuttle Lockstitch for Extra Heavy-Weight Sewing	SEWPRO PSM-733-3020Extra Heavy-Duty Programmable Sewing Machine
Stitch length	10mm	10mm	12mm	12mm
Foot lift	1 ¼"	1 1/4"	24mm	Pneumatic
Thread sizes	138-554	138-554	138-415	138-415 (Up to 8-Cord Depending on Material)
Needle system	Schmetz 1000H (Sizes 250-330)	Schmetz 1000H (Sizes 250-330)	794 (Sizes 160-230)	Schmetz 1000H (Sizes 230-330)
Max speed	550 RPM	550 RPM	600 RPM	500 RPM (Depends on Material and Thread Size)
Hook	Extra-Large Oscillating Shuttle Hook	Extra-Large Oscillating Shuttle Hook	On request	Super-Large Shuttle Hook
Arm / post / field	On request	30"	16"	300×200mm

Questions about the 733-PRO

Will it sew 8-cord thread?

Yes. That is what the extra-large shuttle and 1000H needles are for.

Is there a long arm version?

Yes, the 733-30 with 30 inches under the arm, for tarps, sails and long slings.

Can it sew light material?

It can, but the smallest needle it takes is size 250. For 138 thread and lighter choose a 1508NH or 204-420.

Request a quote

SEWPRO 733-PRO

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 733-PRO fits or point you to the model that does, then quote it complete with a delivery date.
