SEWPRO
Long armSKU 121733 class, long arm

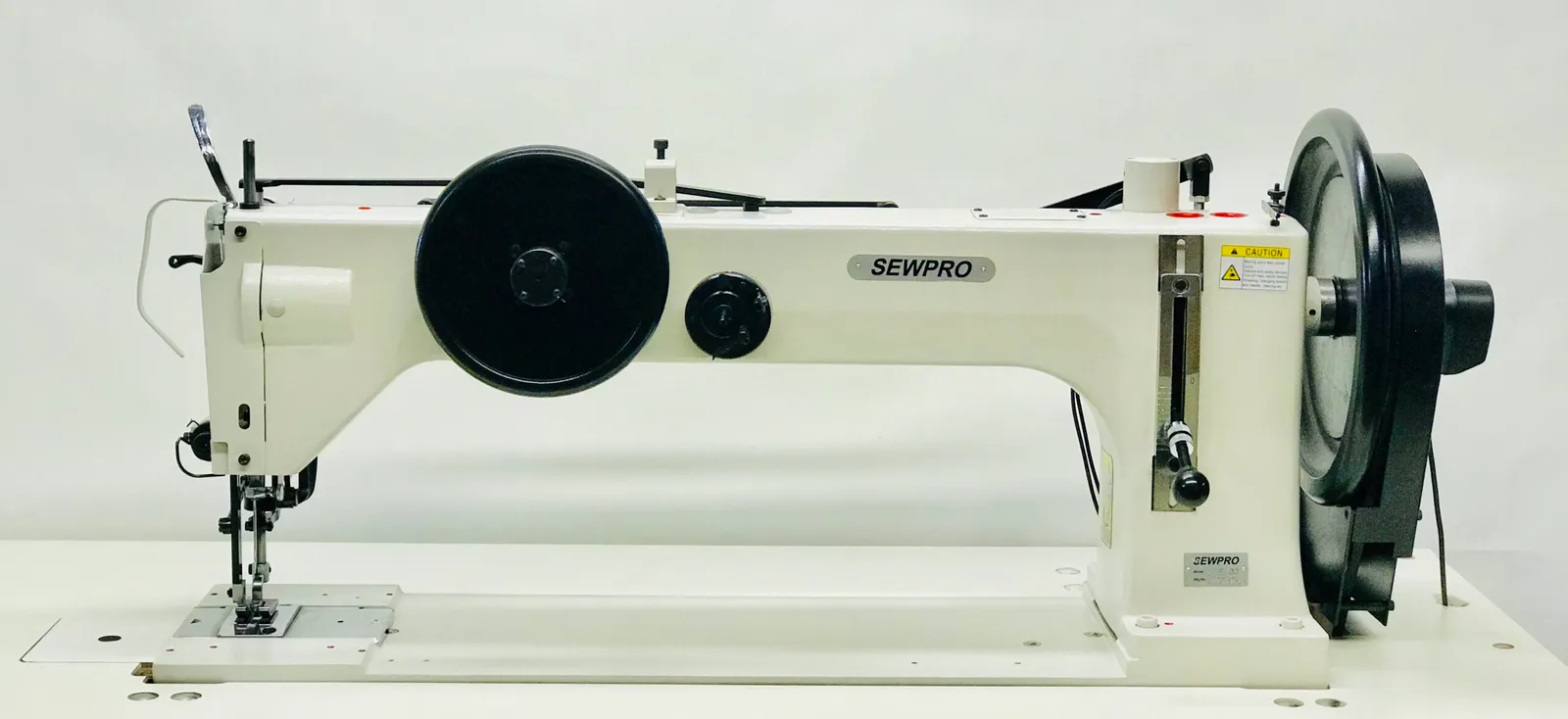

SEWPRO 733-30

30" long arm extra heavy-duty lockstitch machine

The 733 class head on a 30 inch arm: thread to 554, 1000H needles, for slings, tarps, sails and tents.

5.0 on Google from 10 reviews of SEWPRO

  • Arm length30"
  • Stitch length10mm
  • Thread sizes138-554
  • Foot lift1 1/4"

Materials

  • Webbing and straps
  • Canvas
  • Leather
  • Technical textiles
  • Sails
  • Tarpaulins

Price

Built to your order

Configured for your work and quoted complete. You pay for what your job needs and nothing it doesn't. Why no list price?

  • Set up, timed and test-sewn on your material before delivery
  • 1 year warranty on parts and workmanship
  • Delivered and installed in PA and nearby, freight nationwide
  • Phone and text support from the people who sold it

About the 733-30

The 733-30 is our heaviest flatbed, the 733, with 30 inches between the needle and the arm. The extra-large oscillating shuttle holds a bobbin of 346 or 415 thread long enough for a full sling or tarp seam, the needle bar takes Schmetz 1000H needles up to size 330, and the slow 550 RPM top speed drives a needle through a stack of webbing, canvas or leather that would stall a conventional machine.

The 30 inches is what separates it from the 733-PRO: a rolled truck tarp, a sail panel, a cargo net or a lifting sling with hardware on both ends goes under the arm without fighting. It is the machine for shops that sew the heaviest materials in the largest pieces. We show the 733 head on video.

Technical data: SEWPRO 733-30

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine TypeExtra Heavy-Duty Long-Arm Lockstitch
Arm Length30"
Max Sewing Speed550 RPM
Max Stitch Length10mm
Presser Foot Lift1 1/4"
Needle SystemSchmetz 1000H (Sizes 250-330)
Thread Sizes138-554
Hook TypeExtra-Large Oscillating Shuttle Hook

Included in a SEWPRO quote

  • Head, table and stand
  • Motor options to suit your work: servo, needle positioner, speed reducer
  • Feet set, folders, clamps or guides for your product
  • A 10-pack of Schmetz needles in the right system, point and size
  • Tested on your material before delivery
  • Delivery and installation in PA and nearby, freight elsewhere
  • 1 year warranty, phone support for the life of the machine
Schmetz

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 1000H, sizes 250 to 330. We stock it in round and leather points in 10-packs, and the first 10-pack goes out with the machine.

Features

What is on the machine

  • 30 inch armRoom for tarps, sails, slings and covers without rolling.
  • Extra-large shuttle hookHolds more heavy thread for long runs.
  • Thread to 554Sews the heaviest bonded nylon and polyester.
  • 10mm stitchLong, strong seams on thick stacks.
  • 1 1/4 inch foot liftClears layered webbing and hardware.

Applications

What gets sewn on the 733-30

  • Cargo slings and lifting straps
  • Truck tarps and heavy covers
  • Sails and sail covers
  • Tents, awnings and shade structures
  • Safety harness and fall protection
  • Heavy leather and webbing assemblies

Videos

The 733-30 running in our shop

Recorded in Ephrata on real material. No stock footage.

Compare

733-30 against the alternatives

The models we would put next to it on the phone, and why.

ModelSEWPRO 733-30This machineSEWPRO 733-PROExtra Heavy-Duty Lockstitch Sewing MachineSEWPRO 204-3030" Long-Arm Barrel Shuttle Sewing MachineSEWPRO PSM-733-3020Extra Heavy-Duty Programmable Sewing Machine
Stitch length10mm10mm12mm12mm
Foot lift1 1/4"1 ¼"24mmPneumatic
Thread sizes138-554138-554138-415138-415 (Up to 8-Cord Depending on Material)
Needle systemSchmetz 1000H (Sizes 250-330)Schmetz 1000H (Sizes 250-330)794 (Sizes 160-230)Schmetz 1000H (Sizes 230-330)
Max speed550 RPM550 RPM600 RPM500 RPM (Depends on Material and Thread Size)
HookExtra-Large Oscillating Shuttle HookExtra-Large Oscillating Shuttle HookLarge Barrel ShuttleSuper-Large Shuttle Hook
Arm / post / field30"On request30"300×200mm

Questions about the 733-30

Can it run 8-cord?

Yes. That and 554 bonded are what it is for.

What is the lightest thread it should run?

138 with a size 250 needle. Below that use a 204 or 1508 class machine.

Why is there no price for the 733-30?

Every SEWPRO machine is built to order. The same head leaves the shop with a different motor, table, feet, folder, binder, clamp or puller depending on what you sew, and we set it up and test-sew it on your material before it is delivered. A list price would do one of two things: include parts you will never use, so you overpay, or leave out the ones your job needs, so the number means nothing. Tell us the material, the thread and the product, and we quote the machine configured for that work. Everything it needs, nothing it doesn't, and the price you see is the price you pay.

Request a quote

SEWPRO 733-30

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 733-30 fits or point you to the model that does, then quote it complete with a delivery date.

SEWPRO 733-30

30" long arm extra heavy-duty lockstitch machine

(717) 940-0129Monday to Friday, 7am to 5pm. Showroom visits by appointment.

Request concerns the SEWPRO 733-30. Tell us what you sew and we will confirm it is the right machine, quote it complete with table and servo motor, and give you a delivery date.
