Long armSKU 1231508 class, high long arm

SEWPRO 1508L-18H

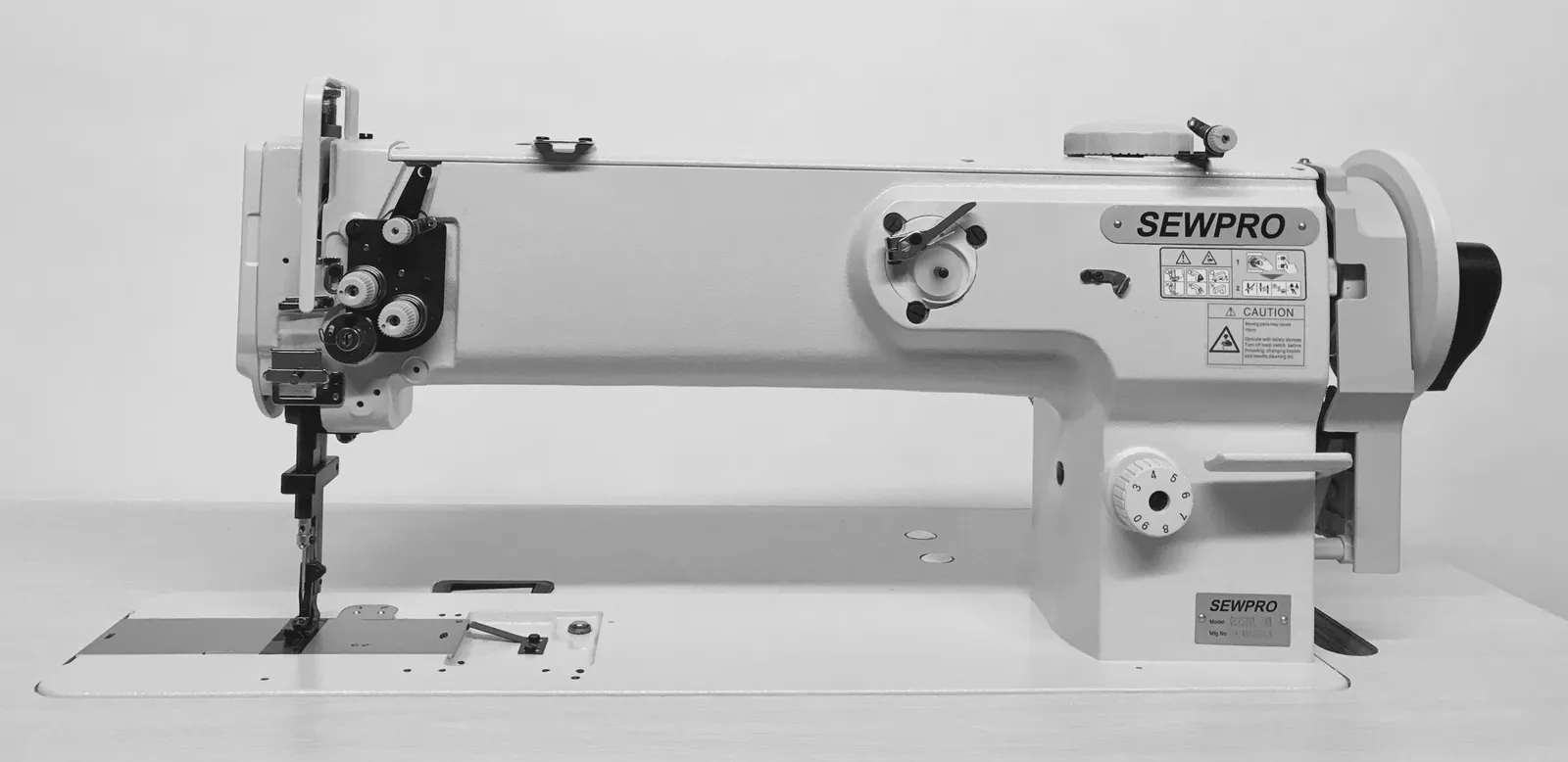

High-Arm Long-Arm Walking Foot Lockstitch Machine

The 1508L-18 with a 2 inch taller arm, for bulky assemblies that do not clear a standard long arm.

5.0 on Google from 10 reviews of SEWPRO

Arm length18"
Stitch length9mm
Thread sizes46-138
Foot lift5/8"

Materials

Leather
Canvas
Vinyl
Upholstery fabric

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 1508L-18H

The 1508L-18H is the high-arm version of our most popular long arm. The head, hook, feed and stitch are the same as the 1508L-18; the arm is two inches taller, which is the difference between a rolled boat cover or a foam-backed seat panel sliding under the arm and jamming against it. The needle is the longer 190R system for the extra reach.

It is bought by marine canvas shops sewing enclosures with heavy vinyl windows, by upholsterers sewing foam-backed panels, and by anyone who has hit the arm with a bulky piece one time too many.

Technical data: SEWPRO 1508L-18H

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	High-Arm Long-Arm Flat-Bed Walking Foot Lockstitch
Arm Length	18"
High Arm Clearance	+2" Taller Than Standard
Max Sewing Speed	1800 RPM (Material Dependent)
Max Stitch Length	9mm
Presser Foot Lift	5/8" (Air, Requires Compressed Air)
Hook Type	Vertical-Axis Large Hook
Feed System	Unison-Feed Walking Foot
Needle System	190R (Sizes 110-180)
Thread Sizes	46-138
Extra Features	Forward/Reverse Stitch, Climbing Device

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 190R, sizes 110 to 180. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Extra-High Arm (+2")Greater clearance for bulky, oversized products.
18" Long ArmExtended workspace for large and complex projects.
Walking Foot with Unison FeedSmooth, even stitches on heavy materials.
Vertical-Axis Large HookReliable performance with heavy threads.
Air Foot LiftEffortless lifting for thick assemblies.

Applications

What gets sewn on the 1508L-18H

Upholstery (furniture, marine, automotive) with oversized panels
Bulky leather goods and accessories
Vinyl tarps, awnings, and tents
Large canvas covers and sails
Heavy industrial textile manufacturing
Decorative top-stitching on thick assemblies

Compare

1508L-18H against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 1508L-18
Standard arm height, same head.
SEWPRO 1510L-25-7
25 inch automated long arm.

Model	SEWPRO 1508L-18HThis machine	SEWPRO 1508L-18Long-Arm Walking Foot Lockstitch Machine	SEWPRO 1510L-25-725" Long-Arm Walking Foot Lockstitch for Upholstery and Leather
Stitch length	9mm	9mm	7mm
Foot lift	5/8" (Air, Requires Compressed Air)	5/8" (Air, Requires Compressed Air)	16mm (Automatic)
Thread sizes	46-138	46-138	69-138
Needle system	190R (Sizes 110-180)	135×17 (Sizes 110-180)	135×17 (Sizes 110-180)
Max speed	1800 RPM (Material Dependent)	1800 RPM (Material Dependent)	2,000 RPM
Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook
Arm / post / field	18"	18"	25"

Questions about the 1508L-18H

Is the stitch different?

No. Same hook, same 9mm stitch, same thread range. Only the arm height and the needle length change.

Who needs the extra height?

Shops that sew foam-backed panels, enclosures with glazing, and anything rolled. If your work is flat canvas and seat covers, the standard 1508L-18 is enough.

Request a quote

SEWPRO 1508L-18H

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1508L-18H fits or point you to the model that does, then quote it complete with a delivery date.
