Long armSKU 1178BL class, double needle long arm

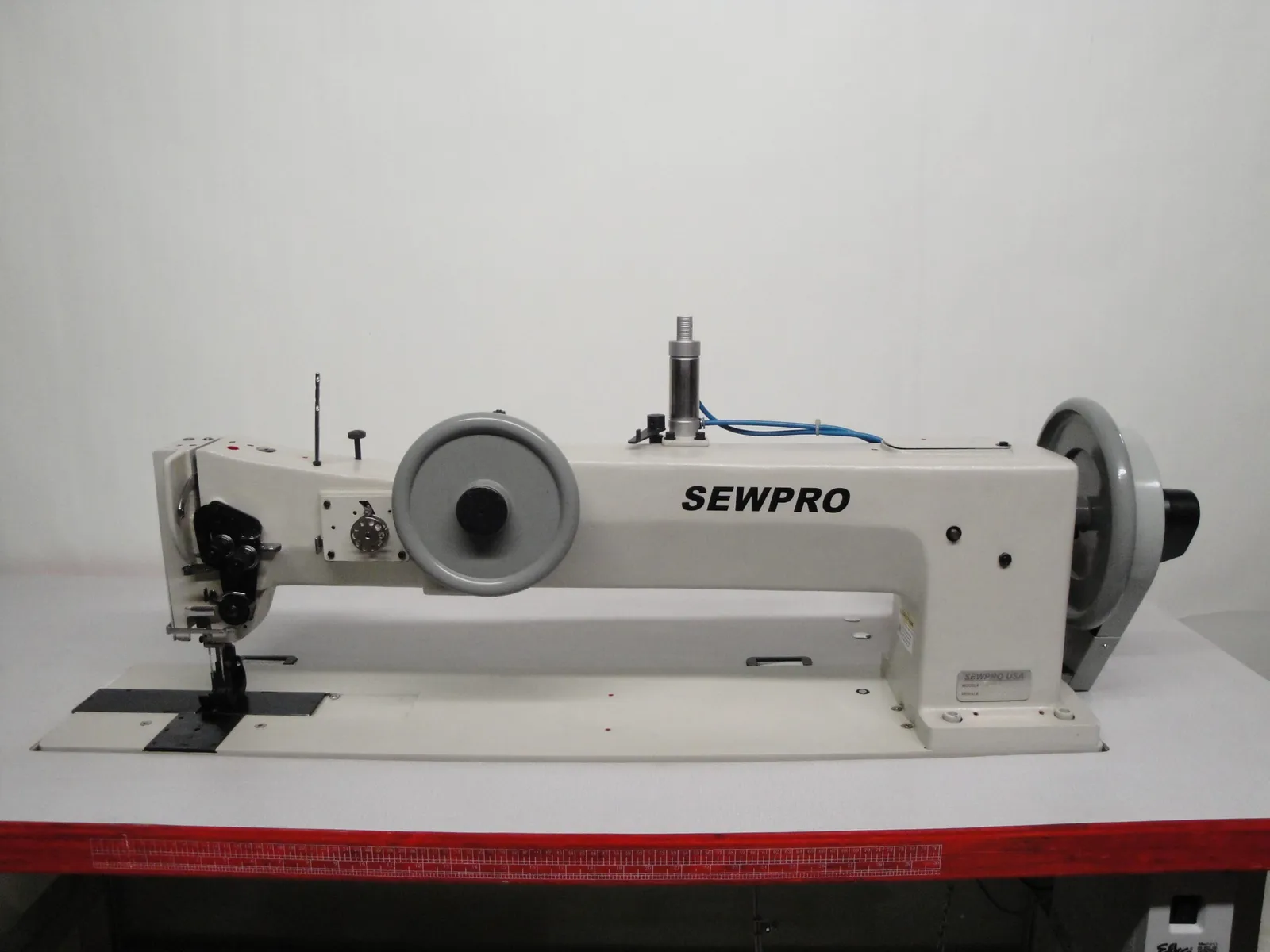

SEWPRO 8BL-30-2

30" Long-Arm Extra Heavy-Duty Double Needle Lockstitch Machine

The 30 inch extra heavy double needle long arm, for truck tarps, large tents and the longest lap seams.

5.0 on Google from 10 reviews of SEWPRO

Arm length30"
Stitch length10mm
Thread sizes138-270
Foot lift20mm

Materials

Leather
Canvas
Vinyl
Rubber-coated fabric

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 8BL-30-2

The 8BL-30-2 is the 8BL-20-2 with 30 inches under the arm. Two needles, compound feed with alternating presser feet, vertical-axis hooks with extra large bobbins, a 10mm stitch, 20mm foot lift and a 794 needle system running thread from 138 to 270. A front handwheel, centralized lubrication, reverse, a safety clutch and a bobbin winder are built in.

It is for shops that sew double seams across the largest panels: truck tarps, construction covers, large tents, marine field covers, rubberized and laminated fabrics.

Technical data: SEWPRO 8BL-30-2

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Extra Heavy-Duty Long-Arm Double Needle Lockstitch
Arm Length	30"
Max Sewing Speed	1200 RPM
Max Stitch Length	10mm
Presser Foot Lift	20mm
Feed System	Compound Feed (Drop + Needle Feed) with Alternating Feet
Hook Type	Vertical-Axis with Extra Large Bobbins
Needle System	794 (Sizes 160-250)
Thread Sizes	138-270
Distance from Needle to Arm	30"
Extra Features	Centralized Arm Lubrication, Reverse Feed, Safety Clutch, Built-in Bobbin Winder, Front Handwheel

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 794, sizes 160 to 250. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

30" Long ArmExtended reach for bulky and oversized products.
Double Needle ConstructionIdeal for lap seams and parallel stitching.
Compound Feed with Alternating FeetSuperior fabric handling on heavy layers.
Extra Large BobbinsLonger sewing runs with fewer changes.
Built for Heavy ThreadsHandles thread sizes up to 270 with ease.

Applications

What gets sewn on the 8BL-30-2

Tents, tarps, and awnings
Truck covers and construction barriers
Marine canvas and field covers
Industrial mops and cleaning textiles
Heavy leather and coated fabrics
Luggage and travel gear manufacturing

Compare

8BL-30-2 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 8BL-20-2
Same head on a 20 inch arm.
SEWPRO 204-30
Single needle 30 inch barrel shuttle with thread to 415.

Model	SEWPRO 8BL-30-2This machine	SEWPRO 8BL-20-220" Long-Arm Extra Heavy-Duty Double Needle Lockstitch Machine	SEWPRO 204-3030" Long-Arm Barrel Shuttle Sewing Machine
Stitch length	10mm	10mm	12mm
Foot lift	20mm	20mm	24mm
Thread sizes	138-270	138-277	138-415
Needle system	794 (Sizes 160-250)	794 (Sizes 160-250)	794 (Sizes 160-230)
Max speed	1200 RPM	1200 RPM	600 RPM
Hook	Vertical-Axis with Extra Large Bobbins	Vertical-Axis with Extra Large Bobbins	Large Barrel Shuttle
Arm / post / field	30"	20"	30"

Questions about the 8BL-30-2

Is it hard to handle a 30 inch arm?

The table is longer and the head is heavy, but the work is easier: a tarp panel slides under the arm instead of being rolled and fought.

Request a quote

SEWPRO 8BL-30-2

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 8BL-30-2 fits or point you to the model that does, then quote it complete with a delivery date.
