Long armSKU 1200617 class, long arm

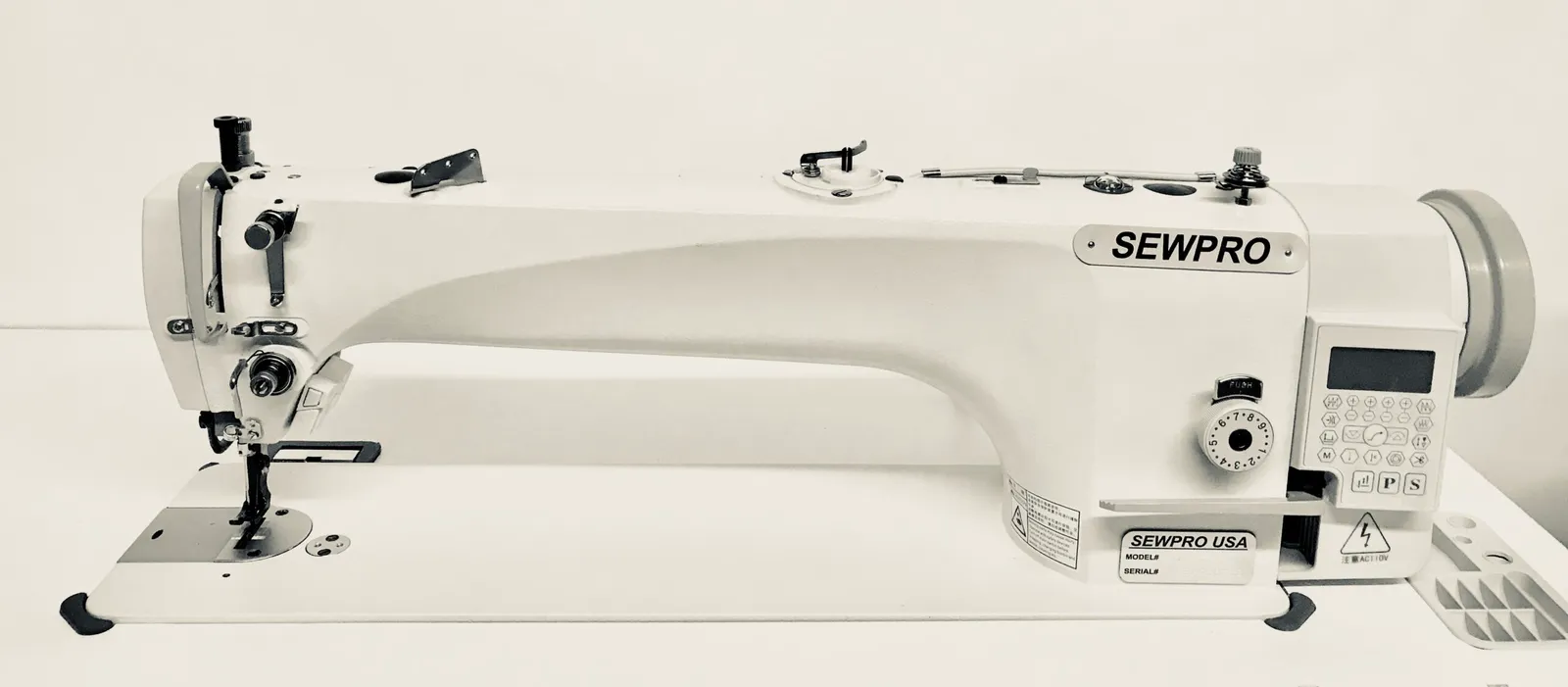

SEWPRO 0617DL-18-7

Long-Arm Walking Foot Lockstitch for Upholstery and Marine Canvas

The automatic walking foot on an 18 inch arm: back-tack, foot lift and trimmer for boat canvas and seat covers.

5.0 on Google from 10 reviews of SEWPRO

Arm length18"
Stitch length8mm
Thread sizes46-138
Foot lift16mm

Materials

Canvas
Vinyl
Upholstery fabric

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 0617DL-18-7

The 0617DL-18-7 is the long arm version of the 0617D-7. An 18 inch arm means a bimini, an enclosure panel with a window, a seat back or an awning section goes under the needle flat instead of being rolled, and the automatic back-tack, 16mm foot lift and thread trimmer mean the operator does not stop between seams.

The head has a horizontal large rotary hook with an M bobbin, an 8mm stitch and a 750W direct drive servo with needle positioning. Thread range is 46 to 138 through 135x17 needles. It is a medium-heavy machine for canvas, vinyl and upholstery fabric; for leather over 6 oz or 207 thread, the heavier long arms below are the right choice.

Technical data: SEWPRO 0617DL-18-7

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Long-Arm Walking Foot Lockstitch
Arm Length	18"
Max Sewing Speed	Material Dependent
Max Stitch Length	8mm
Presser Foot Lift	16mm (Auto)
Hook Type	Horizontal Large Rotating Hook
Bobbin Size	M
Needle System	Schmetz 135×17 (Sizes 90-140)
Thread Sizes	46-138
Motor	220V Single Phase, 750W Direct Drive Servo with Needle Positioning
Extra Features	Auto Back-Tack, Auto Foot Lift, Auto Thread Trimmer

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 90 to 140. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

18" Long ArmMore workspace for sewing large and bulky items.
Walking Foot MechanismEnsures even feeding for multiple layers.
Full AutomationAuto back-tack, auto foot lift, and thread trimming.
Horizontal Large HookSmooth thread handling with extended run time.
Powerful Servo MotorQuiet, efficient, and precise operation.

Applications

What gets sewn on the 0617DL-18-7

Boat canvas, enclosures, and marine upholstery
Automotive seat covers and interiors
RV and camper upholstery
Furniture upholstery and slipcovers
Large textile covers and awnings
Heavy vinyl and coated fabrics

Compare

0617DL-18-7 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 1508L-18
Heavier manual long arm with vertical hook and 9mm stitch.
SEWPRO 1510L-18-7
Heavier automated long arm with air foot lift.
SEWPRO 0617D-7
Same automatic head on a standard arm.

Model	SEWPRO 0617DL-18-7This machine	SEWPRO 1508L-18Long-Arm Walking Foot Lockstitch Machine	SEWPRO 1510L-18-7Long-Arm Walking Foot Lockstitch with Full Automation	SEWPRO 0617D-7Walking Foot Lockstitch for Canvas and Upholstery
Stitch length	8mm	9mm	9mm	8mm
Foot lift	16mm (Auto)	5/8" (Air, Requires Compressed Air)	5/8" (Pneumatic)	16mm
Thread sizes	46-138	46-138	46-138	46-138
Needle system	Schmetz 135×17 (Sizes 90-140)	135×17 (Sizes 110-180)	135×17 (Sizes 110-180)	Schmetz 135×17 (Sizes 90-140)
Max speed	Material Dependent	1800 RPM (Material Dependent)	1800 RPM (Material Dependent)	On request
Hook	Horizontal Large Rotating Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook	Horizontal Large Rotating Hook (M Size Bobbin)
Arm / post / field	18"	18"	18"	On request

Questions about the 0617DL-18-7

Does it need air?

No. Foot lift and trimmer are electric on the 0617 series.

How does it compare with the 1508L-18?

The 1508L-18 is a heavier head with a vertical-axis large hook and 9mm stitch, manual, with an air foot lift. The 0617DL-18-7 is lighter and automated. For canvas and vinyl production the 0617DL; for leather and heavier thread the 1508L.

Request a quote

SEWPRO 0617DL-18-7

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 0617DL-18-7 fits or point you to the model that does, then quote it complete with a delivery date.
