Long armSKU 1381510 class, long arm

SEWPRO 1510DL-25-7

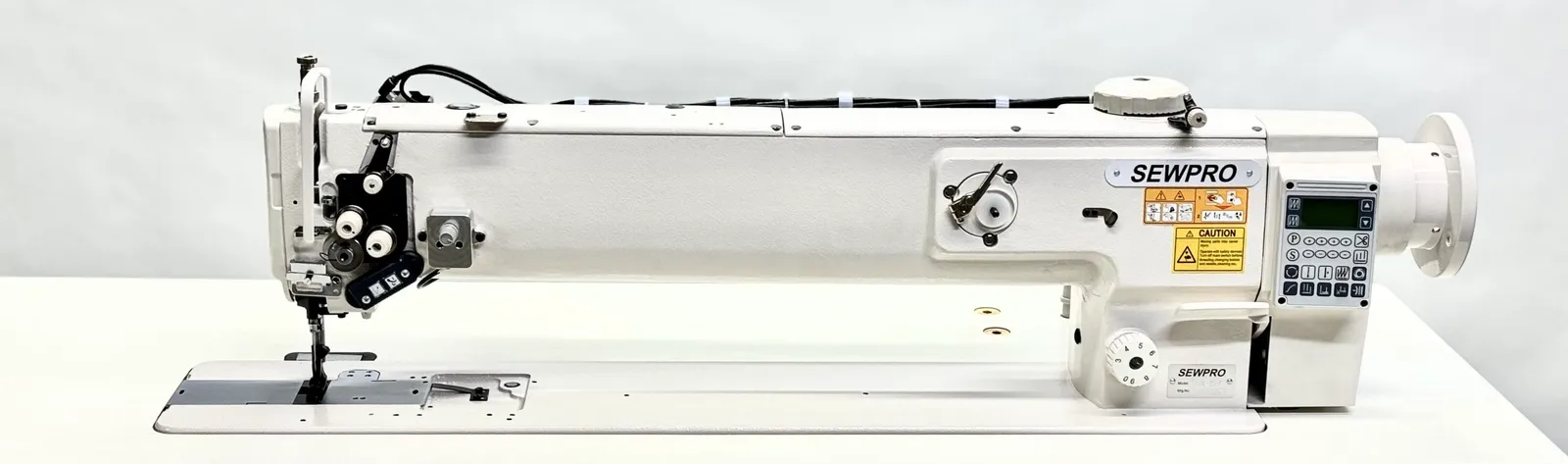

Long Arm Unison-Feed Lockstitch Machine

A 25 inch unison feed long arm with direct drive servo, air foot lift and trimmer, for car seats and large upholstery.

5.0 on Google from 10 reviews of SEWPRO

Stitch length7mm
Thread sizes69-138
Foot lift16mm
Max speed2,000 RPM

Materials

Canvas
Extra-thick materials
Heavy-weight fabrics
Leather
Upholstery
Vinyl

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 1510DL-25-7

The 1510DL-25-7 is a 25 inch long arm with the three automatic functions and a direct drive 220V servo on the head. The unison feed and vertical-axis large hook handle leather, vinyl, canvas and upholstery fabric from light to heavy with 69 to 138 thread; the 16mm air foot lift and the under-bed trimmer keep a seat cover line moving.

The stitch length on this head is 7mm. It is a production machine: the shop that buys it sews the same kind of panel all day and wants the operator to touch nothing but the fabric and the pedal.

Technical data: SEWPRO 1510DL-25-7

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Long Arm, 1-Needle, Unison-Feed, Lockstitch
Hook Type	Vertical-Axis Large Hook
Max Sewing Speed	2,000 RPM
Max Stitch Length	7mm
Presser Foot Lift (Auto)	16mm (Air Operated)
Needle System	135×17 (Sizes 110-180)
Thread Sizes	69-138
Extra Features	Thread Under-Trimmer

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 180. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Long Arm DesignExtra working space for large projects.
Unison-Feed MechanismEven fabric feeding for perfect stitching.
Large Vertical HookFewer bobbin changes during production.
Auto Foot Lift (16mm)Easily handles thick materials.
Thread Under-TrimmerImproves speed and efficiency.

Applications

What gets sewn on the 1510DL-25-7

Upholstery production (furniture, marine, and automotive)
Leather goods manufacturing
Canvas and tent production
Heavy-duty textile assembly

Compare

1510DL-25-7 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 1510L-25-7
Same spec with an under-table servo.
SEWPRO 1510L-18-7
18 inch arm, 9mm stitch, 110V.

Model	SEWPRO 1510DL-25-7This machine	SEWPRO 1510L-25-725" Long-Arm Walking Foot Lockstitch for Upholstery and Leather	SEWPRO 1510L-18-7Long-Arm Walking Foot Lockstitch with Full Automation
Stitch length	7mm	7mm	9mm
Foot lift	16mm (Air Operated)	16mm (Automatic)	5/8" (Pneumatic)
Thread sizes	69-138	69-138	46-138
Needle system	135×17 (Sizes 110-180)	135×17 (Sizes 110-180)	135×17 (Sizes 110-180)
Max speed	2,000 RPM	2,000 RPM	1800 RPM (Material Dependent)
Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook	Vertical-Axis Large Hook
Arm / post / field	On request	25"	18"

Questions about the 1510DL-25-7

1510DL-25-7 or 1510L-25-7?

Both are 25 inch automated long arms. The DL has the direct drive motor on the head (220V); the L has a separate Ho Hsing servo under the table. Performance is the same; the choice is usually the shop's power supply.

Why only 7mm stitch?

The automated 1510 heads are set for 7mm so the trimmer and back-tack work reliably. If you need 9mm, the manual 1508L-18 and the 1510L-18-7 give it.

Request a quote

SEWPRO 1510DL-25-7

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 1510DL-25-7 fits or point you to the model that does, then quote it complete with a delivery date.
