Post bedSKU 126243 class, double needle post bed

SEWPRO 243H-P2

Extra Heavy-Duty Post-Bed Double Needle Sewing Machine

An extra heavy double needle post bed with a barrel shuttle and 794 needles, for 207 to 415 topstitch on automotive leather and luggage.

5.0 on Google from 10 reviews of SEWPRO

Post height140mm
Stitch length12mm
Thread sizes138-415
Foot lift20mm

Materials

Leather
Upholstery fabric

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 243H-P2

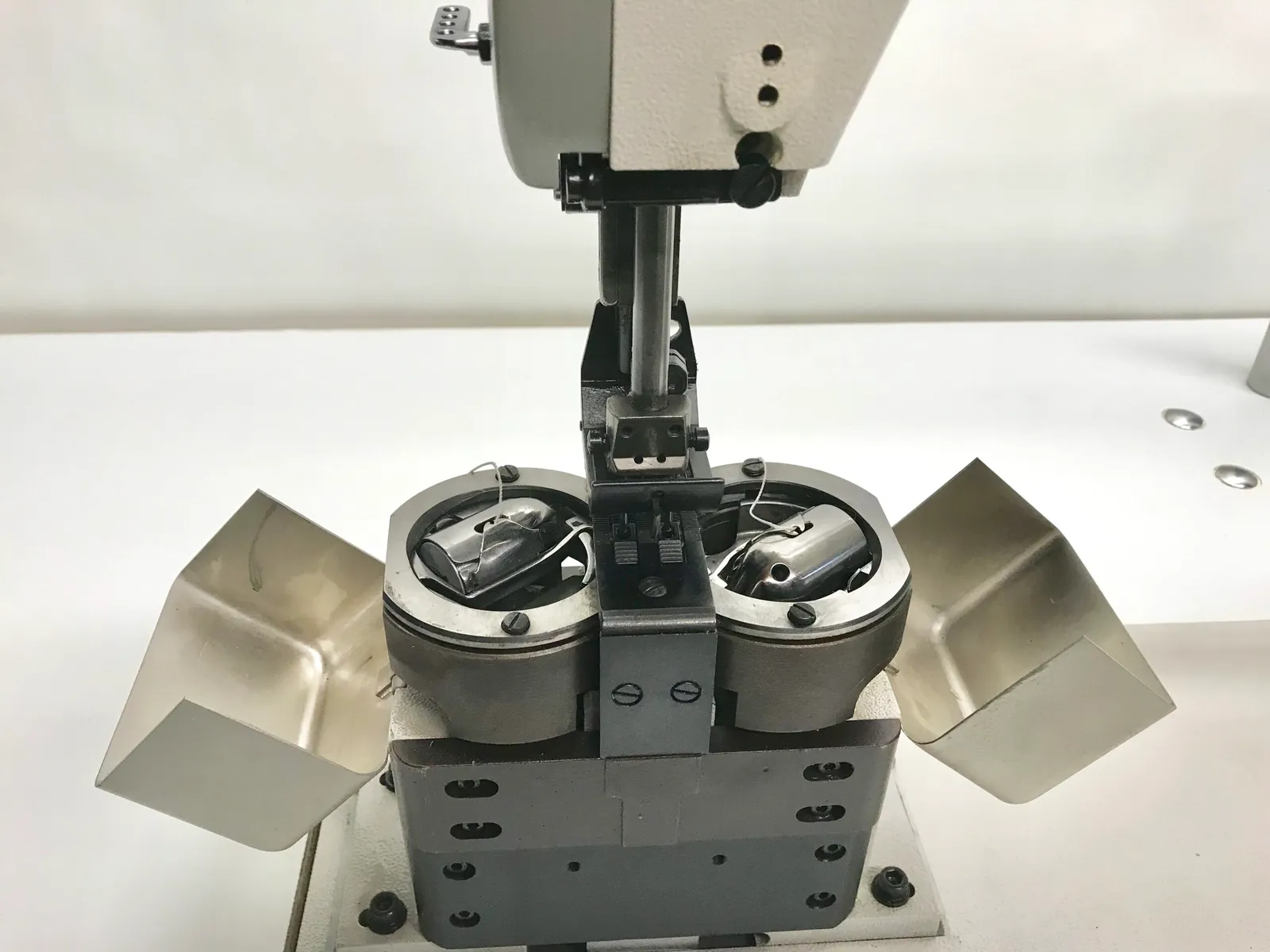

The 243H-P2 is the post bed for heavy decorative topstitch. Two 794 needles, triple feed, a large barrel shuttle under each needle, a 12mm stitch and a 20mm foot lift: it sews two rows of 277 or 346 thread across a leather seat bolster or a luggage panel with the long, deep stitch that heavy thread needs, and the barrel shuttle locks it without shredding.

The post is 5.5 inches, the needle gauge is 10 or 12mm, and the top speed is 600 RPM. It runs best with braided or bonded thread from 138 to 415. It is a specialist machine: a shop that sews one row of 138 thread does not need it, but a shop that sews a double row of 277 on every seat has no substitute.

Who buys it

Automotive leather seats with heavy double topstitch
High-end furniture and headboards
Luxury luggage and cases
Marine and RV interiors in heavy leather

Platform and parts

243 class, double needle post bed

Extra heavy post bed with triple feed, two barrel shuttles, 794 needle system, 12mm stitch, 20mm lift.

Parts: Double needle post bed feet in 10 and 12mm gauges, barrel shuttle bobbins. Needle system 794, sizes 180 to 250.

How we deliver it

1Servo motor with needle positioner and a reducer, so the operator can sew heavy thread one stitch at a time.
2Industrial table with the post cut-out, drawer, thread stand and an articulated LED lamp aimed at the needle plate.
3Needle gauge 10 or 12mm set to your seam; braided thread recommended and supplied on request.
4Threaded with your thread, timed, tension set and a seam sewn on your material before it leaves Ephrata.

Technical data: SEWPRO 243H-P2

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Extra Heavy-Duty Post-Bed, Double Needle, Triple Feed
Max Sewing Speed	600 SPM
Max Stitch Length	12mm
Presser Foot Lift	20mm
Needle System	794 (Sizes 180-250)
Thread Sizes	138-415
Needle Gauge Options	10mm, 12mm
Hook Type	Large Barrel Shuttle
Post Height	140mm (5.5")
Recommended Thread	Braided Thread for Best Results

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 794, sizes 180 to 250. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Triple Feed SystemEnsures smooth, consistent stitches on heavy layers.
Large Barrel ShuttleHandles thick threads without tension issues.
Extra-Long Stitch (12mm)Perfect for decorative top-stitching.
Post-Bed DesignIdeal for sewing 3D and tubular products.
Robust Industrial BuildReliable for continuous heavy-duty use.

Applications

What gets sewn on the 243H-P2

Automotive leather upholstery and seating
High-end furniture upholstery
Luggage and travel goods manufacturing
Decorative top-stitching on leather panels
Marine and RV interiors
Heavy leather fashion accessories

Compare

243H-P2 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 1760
Double needle post bed for 92 and 138 thread, faster and lighter.
SEWPRO 8360BL
17 inch single needle high post for deep products.

Model	SEWPRO 243H-P2This machine	SEWPRO 1760Post-Bed Double Needle Unison Feed Lockstitch Machine	SEWPRO 8360BL17" high post bed triple feed lockstitch machine
Stitch length	12mm	8mm	Up to 8mm
Foot lift	20mm	14mm (Pneumatic)	On request
Thread sizes	138-415	46-138	69 to 138
Needle system	794 (Sizes 180-250)	135×17 (Sizes 110-160)	135x17 (134-35 on request), sizes 110 to 160
Max speed	600 SPM	1,800 SPM	On request
Hook	Large Barrel Shuttle	Large Vertical-Axis Rotary Hooks	Large Vertical-Axis Rotary Hook
Arm / post / field	140mm (5.5")	7"	17"

Questions about the 243H-P2

Why barrel shuttles on a post bed?

Because 277 and 346 thread need a shuttle with a long thread path and a big bobbin. Rotary hooks shred thread that heavy. The 243H-P2 is one of the few post beds built this way.

What thread do you recommend?

Braided polyester in 277 or 346 for the best looking topstitch; bonded nylon works too. Needle sizes 200 to 230.

Request a quote

SEWPRO 243H-P2

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 243H-P2 fits or point you to the model that does, then quote it complete with a delivery date.
