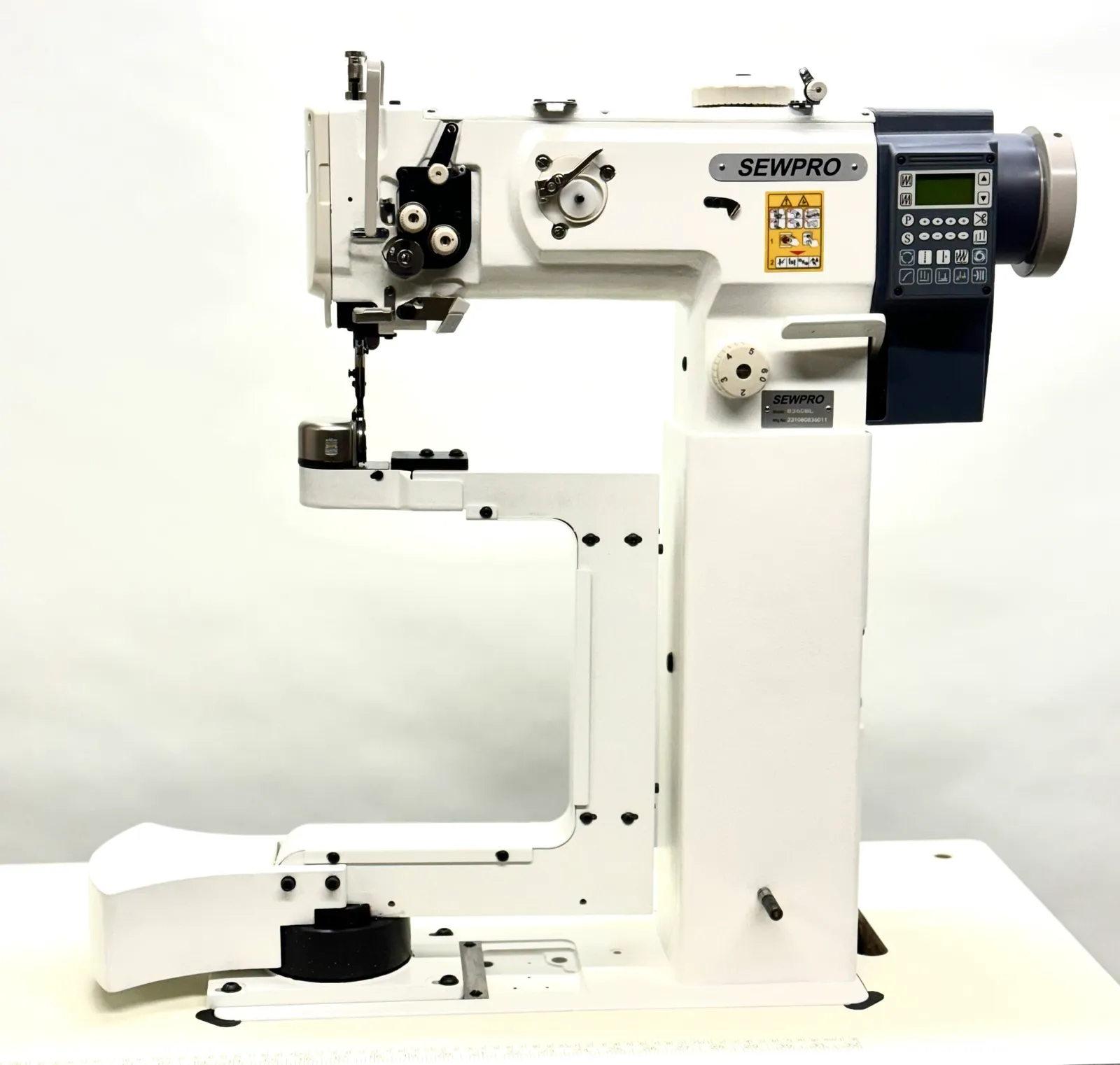

Post bedSKU 141High post triple feed

SEWPRO 8360BL

17" high post bed triple feed lockstitch machine

A 17 inch high post with triple unison feed and a large rotary hook, the boot shaft and deep-product machine.

5.0 on Google from 10 reviews of SEWPRO

Post height17"
Stitch lengthUp to 8mm
Thread sizes69 to 138

Materials

Canvas
Leather
Medium heavy-weight fabrics
Upholstery
Vinyl

Price

$6,900

Head only, as listed. Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 8360BL

The 8360BL combines the two things boot makers ask for: a post tall enough for a riding boot shaft, 17 inches, and a feed heavy enough for layered leather, triple unison walking foot with a large vertical-axis rotary hook. Reverse is built in, so a back-tack does not mean turning the boot around on the post.

It sews medium to medium-heavy leather, canvas and vinyl with 69 to 138 thread, and the large hook means a bobbin lasts a whole boot. We show it on video, including the 360 version in which the presser roller turns to follow the seam so the operator sews a continuous curve without rotating the product.

This is the one machine in the range we currently list with a price for the head; the complete set-up with table and motor is quoted.

Also available: SEWPRO 8360B 360 degree rotating feed high post, on video.

Who buys it

Riding, western and work boot shafts
Deep bags, duffels and saddlebags
Tool, gun and instrument cases
Decorative stitching on boot tops

Platform and parts

High post triple feed

Single needle, 17 inch post, triple unison feed, large vertical-axis rotary hook, reverse, in the pattern of the heavy high post machines used by boot makers.

Parts: High post walking foot feet and plates. Needle system 135x17 or 134-35 depending on configuration.

How we deliver it

1Servo motor with needle positioner, fitted and set; a slow top speed is the norm on boot work.
2Industrial table with the post cut-out, drawer, thread stand and an articulated LED lamp aimed at the needle plate.
3An articulated lamp on the post. Foot pressure set for your leather.
4Threaded with your thread, timed, tension set and a seam sewn on your material before it leaves Ephrata.

Technical data: SEWPRO 8360BL

Specifications

Stitch and needle figures are typical for this class; confirm the configuration you need when you order.

Machine Type	High Post-Bed, Triple Unison Feed Lockstitch
Post Height	17"
Hook Type	Large Vertical-Axis Rotary Hook
Feed	Triple unison feed (walking foot)
Reverse	Yes
Materials	Medium to medium-heavy leather, canvas, vinyl
Needle System	135x17 (134-35 on request), sizes 110 to 160
Thread Sizes	69 to 138
Max Stitch Length	Up to 8mm

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135x17 (134-35 on request), sizes 110 to 160. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

17 inch postReaches seams on deep products.
Triple unison feedEven feeding on layered leather and vinyl.
Large rotary hookFewer bobbin changes with 92 and 138 thread.
Reverse feedBack-tack without turning the work.

Applications

What gets sewn on the 8360BL

Boot shafts and tall footwear
Handbags and backpacks
Luggage and cases
Leather goods assembly

Videos

The 8360BL running in our shop

Recorded in Ephrata on real material. No stock footage.

All videos

Compare

8360BL against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 18365-17
17 inch post with needle feed, lighter and less expensive.
SEWPRO 1710D
7 inch triple feed post bed with direct drive.

Model	SEWPRO 8360BLThis machine	SEWPRO 18365-17Extra High Post-Bed Walking Foot Lockstitch Machine	SEWPRO 1710DPost-Bed Lockstitch Sewing Machine with Direct Drive
Stitch length	Up to 8mm	6mm	8mm
Foot lift	On request	16mm	14mm (Pneumatic)
Thread sizes	69 to 138	46-138	46-138
Needle system	135x17 (134-35 on request), sizes 110 to 160	Schmetz 135×17 (Sizes 110-140)	135×17 (Sizes 110-160)
Max speed	On request	1,200 RPM	1,800 SPM
Hook	Large Vertical-Axis Rotary Hook	Rotating Hook with G Size Bobbin	On request
Arm / post / field	17"	17"	7"

Questions about the 8360BL

What is the 360 version?

The 8360B 360: the presser roller and feed rotate to follow the direction of the seam, so a continuous curve around a boot top is sewn without turning the product. We have it on video; ask for a quote.

Can it take a table attachment?

Yes, a drop-in table surrounds the post for the occasional flat seam.

Why is there a price on this one?

It is the head price from the old catalog, $6,900. A complete machine with table, servo and set-up is quoted; call and we will give you the number.

Request a quote

SEWPRO 8360BL

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 8360BL fits or point you to the model that does, then quote it complete with a delivery date.

SEWPRO 8360BL

17" high post bed triple feed lockstitch machine

(717) 940-0129Monday to Friday, 7am to 5pm. Showroom visits by appointment.
