Post bedSKU 130High post walking foot

SEWPRO 18365-10

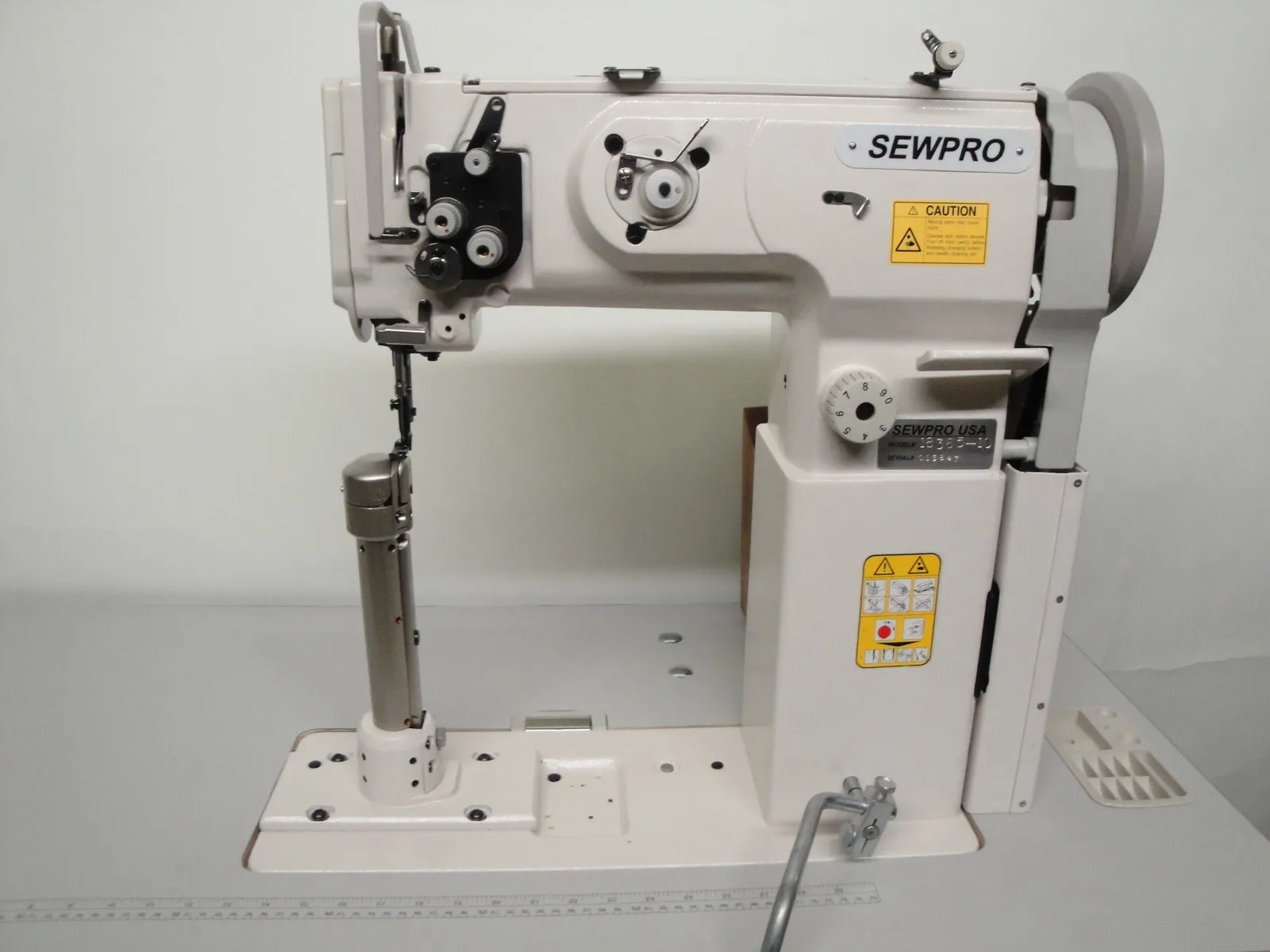

High Post-Bed Walking Foot Lockstitch Machine

A 10 inch high post walking foot with needle feed, for boots, tall bags and luggage edges.

5.0 on Google from 10 reviews of SEWPRO

  • Post height10"
  • Stitch length6mm
  • Thread sizes46-138
  • Foot lift16mm

Materials

  • Leather
  • Webbing

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

  • Set up, timed and test-sewn on your material before delivery
  • 1 year warranty on parts and workmanship
  • Delivered and installed in PA and nearby, freight nationwide
  • Phone and text support from the people who sold it

About the 18365-10

The 18365-10 raises the needle plate 10 inches above the table. A boot shaft, a tall tote, a deep tool bag or a luggage body hangs around the post with the seam on top, so the operator sews near the opening while the rest of the product stays out of the way. The feed is needle feed with alternating presser feet, so layered leather does not creep.

The hook is a rotating hook with a G size bobbin, the stitch goes to 6mm, the foot lifts 16mm, and the safety clutch protects the hook from a crash. It runs 46 to 138 thread through 135x17 needles at up to 1,200 RPM.

For products deeper than 10 inches, riding boots and large duffels, the 18365-17 has a 17 inch post.

Technical data: SEWPRO 18365-10

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine TypeHigh Post-Bed, Single Needle, Needle Feed, Walking Foot Lockstitch
Post Height10"
Max Sewing Speed1,200 RPM
Max Stitch Length6mm
Presser Foot Lift16mm
Needle SystemSchmetz 135×17 (Sizes 110-140)
Thread Sizes46-138
Hook TypeRotating Hook with G Size Bobbin
Extra FeaturesSafety Clutch, Reverse Stitching

Included in a SEWPRO quote

  • Head, table and stand
  • Servo motor, needle positioner where the head supports it
  • Feet, folders, clamps or guides for your product
  • A first box of Schmetz needles in the right system, point and size
  • Threaded, timed and sewn on your material before delivery
  • Delivery and installation in PA and nearby, freight elsewhere
  • 1 year warranty, phone support for the life of the machine
Schmetz

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 140. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Features

What is on the machine

  • 10" High PostIdeal for boots, bags, and tubular workpieces.
  • Walking Foot with Needle FeedEven stitching on leather and layered fabrics.
  • Safety ClutchProtects the hook from damage.
  • G Size BobbinExtended sewing time between bobbin changes.
  • Reverse StitchingStrengthens seam ends and prevents unraveling.

Applications

What gets sewn on the 18365-10

  • Boot tops and shoe components
  • Leather handbags and totes
  • Luggage and travel gear
  • Equestrian tack (bridles, saddles)
  • Leather panel edge stitching
  • Leather accessories (belts, straps, cases)
  • Protective leather covers and sheaths

Compare

18365-10 against the alternatives

The models we would put next to it on the phone, and why.

ModelSEWPRO 18365-10This machineSEWPRO 18365-17Extra High Post-Bed Walking Foot Lockstitch MachineSEWPRO 8360BL17" high post bed triple feed lockstitch machineSEWPRO 1710DPost-Bed Lockstitch Sewing Machine with Direct Drive
Stitch length6mm6mmUp to 8mm8mm
Foot lift16mm16mmOn request14mm (Pneumatic)
Thread sizes46-13846-13869 to 13846-138
Needle systemSchmetz 135×17 (Sizes 110-140)Schmetz 135×17 (Sizes 110-140)135x17 (134-35 on request), sizes 110 to 160135×17 (Sizes 110-160)
Max speed1,200 RPM1,200 RPMOn request1,800 SPM
HookRotating Hook with G Size BobbinRotating Hook with G Size BobbinLarge Vertical-Axis Rotary HookOn request
Arm / post / field10"17"17"7"

Questions about the 18365-10

10 inch or 17 inch post?

10 inches covers shoes, most bags and tall totes. 17 inches is for riding boots, duffels, saddlebags and anything you sew near the mouth of a deep product.

Can it sew heavy thread?

Up to 138. For 207 on a post bed use the 243H-P2.

Request a quote

SEWPRO 18365-10

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 18365-10 fits or point you to the model that does, then quote it complete with a delivery date.
