SEWPRO 18365-17

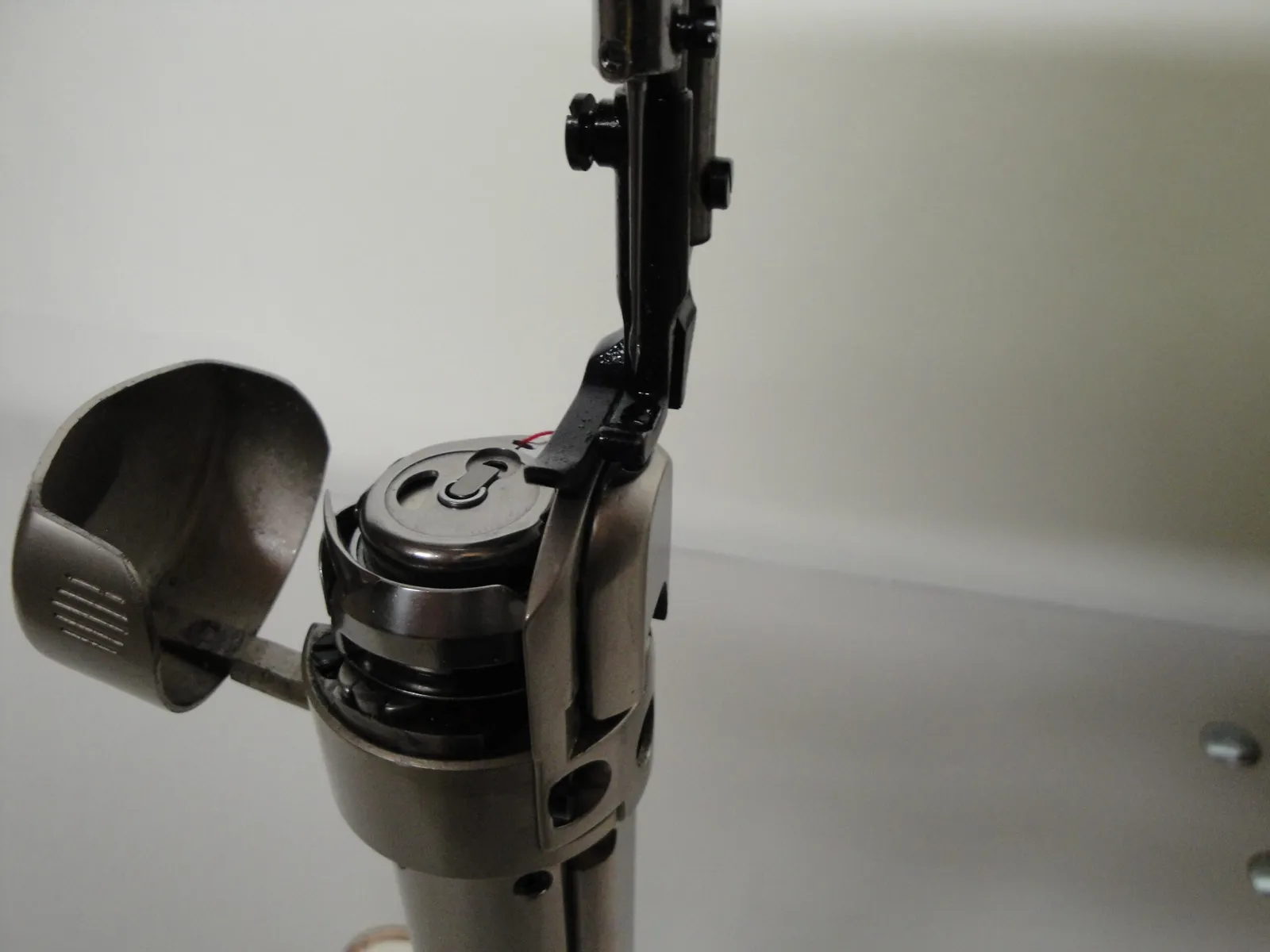

Extra High Post-Bed Walking Foot Lockstitch Machine

A 17 inch extra high post walking foot, for riding boots, duffels, saddlebags and deep products.

5.0 on Google from 10 reviews of SEWPRO

Post height17"
Stitch length6mm
Thread sizes46-138
Foot lift16mm

Materials

Leather

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

About the 18365-17

The 18365-17 is the tallest post in our range: 17 inches from table to needle plate. It is bought for one reason, products deep enough that nothing shorter reaches the seam: riding boot shafts, large duffel bags, saddlebags, tool cases, instrument cases. The product hangs around the post, the operator turns it, and the seam near the opening is sewn without rolling.

The head is needle feed with alternating presser feet, a rotating hook with a G bobbin, 6mm stitch, 16mm lift, reverse and a safety clutch, with thread from 46 to 138 through 135x17 needles. It runs at up to 1,200 RPM, and on this kind of work it mostly runs slowly.

Technical data: SEWPRO 18365-17

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Extra High Post-Bed, Single Needle, Needle Feed, Walking Foot Lockstitch
Post Height	17"
Max Sewing Speed	1,200 RPM
Max Stitch Length	6mm
Presser Foot Lift	16mm
Needle System	Schmetz 135×17 (Sizes 110-140)
Thread Sizes	46-138
Hook Type	Rotating Hook with G Size Bobbin
Extra Features	Safety Clutch, Reverse Stitching

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 110 to 140. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

17" Extra High PostPerfect for boots, tall bags, and tubular products.
Walking Foot & Needle FeedEnsures even stitching on layered materials.
Safety ClutchPrevents hook damage for long-term durability.
G Size BobbinLonger sewing cycles with fewer bobbin changes.
Reverse StitchingStrengthens seam ends and prevents unraveling.

Applications

What gets sewn on the 18365-17

Boot tops and shoe components
Handbags and leather totes
Luggage and travel gear
Equestrian leatherwork (bridles, saddles)
Edge stitching on leather panels
Cases, covers, and protective gear
Small leather goods and accessories

Compare

18365-17 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 18365-10
Same head with a 10 inch post.
SEWPRO 8360BL
17 inch post with triple unison feed and large hook.

Model	SEWPRO 18365-17This machine	SEWPRO 18365-10High Post-Bed Walking Foot Lockstitch Machine	SEWPRO 8360BL17" high post bed triple feed lockstitch machine
Stitch length	6mm	6mm	Up to 8mm
Foot lift	16mm	16mm	On request
Thread sizes	46-138	46-138	69 to 138
Needle system	Schmetz 135×17 (Sizes 110-140)	Schmetz 135×17 (Sizes 110-140)	135x17 (134-35 on request), sizes 110 to 160
Max speed	1,200 RPM	1,200 RPM	On request
Hook	Rotating Hook with G Size Bobbin	Rotating Hook with G Size Bobbin	Large Vertical-Axis Rotary Hook
Arm / post / field	17"	10"	17"

Questions about the 18365-17

18365-17 or 8360BL?

Both have 17 inch posts. The 8360BL has triple unison feed and a large hook and is the heavier machine; the 18365-17 is needle feed with alternating feet and costs less. For boot shafts in heavy leather, the 8360BL. For bags and cases, the 18365-17 is usually enough.

Is it hard to operate?

Different, not harder. Operators used to a flatbed need a few days to get used to turning the work instead of pushing it. After that most prefer it for curves.

Request a quote

SEWPRO 18365-17

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 18365-17 fits or point you to the model that does, then quote it complete with a delivery date.
