Programmable pattern sewersSKU 107210E class pattern sewer

SEWPRO 210E-2210

Programmable Pattern Sewing Machine with 220×100mm Area

A 220 by 100mm programmable pattern sewer with CP-400 control, for labels, small panels and reinforcement patterns.

5.0 on Google from 10 reviews of SEWPRO

Sewing field220×100mm
Stitch length0.1-12.5mm
Foot lift25mm
Max speed2800 RPM

Materials

Leather
Webbing

Price

Quote on request

Quoted complete with table, servo motor and the attachments your job needs.

Request a quote (717) 940-0129

Set up, timed and test-sewn on your material before delivery
1 year warranty on parts and workmanship
Delivered and installed in PA and nearby, freight nationwide
Phone and text support from the people who sold it

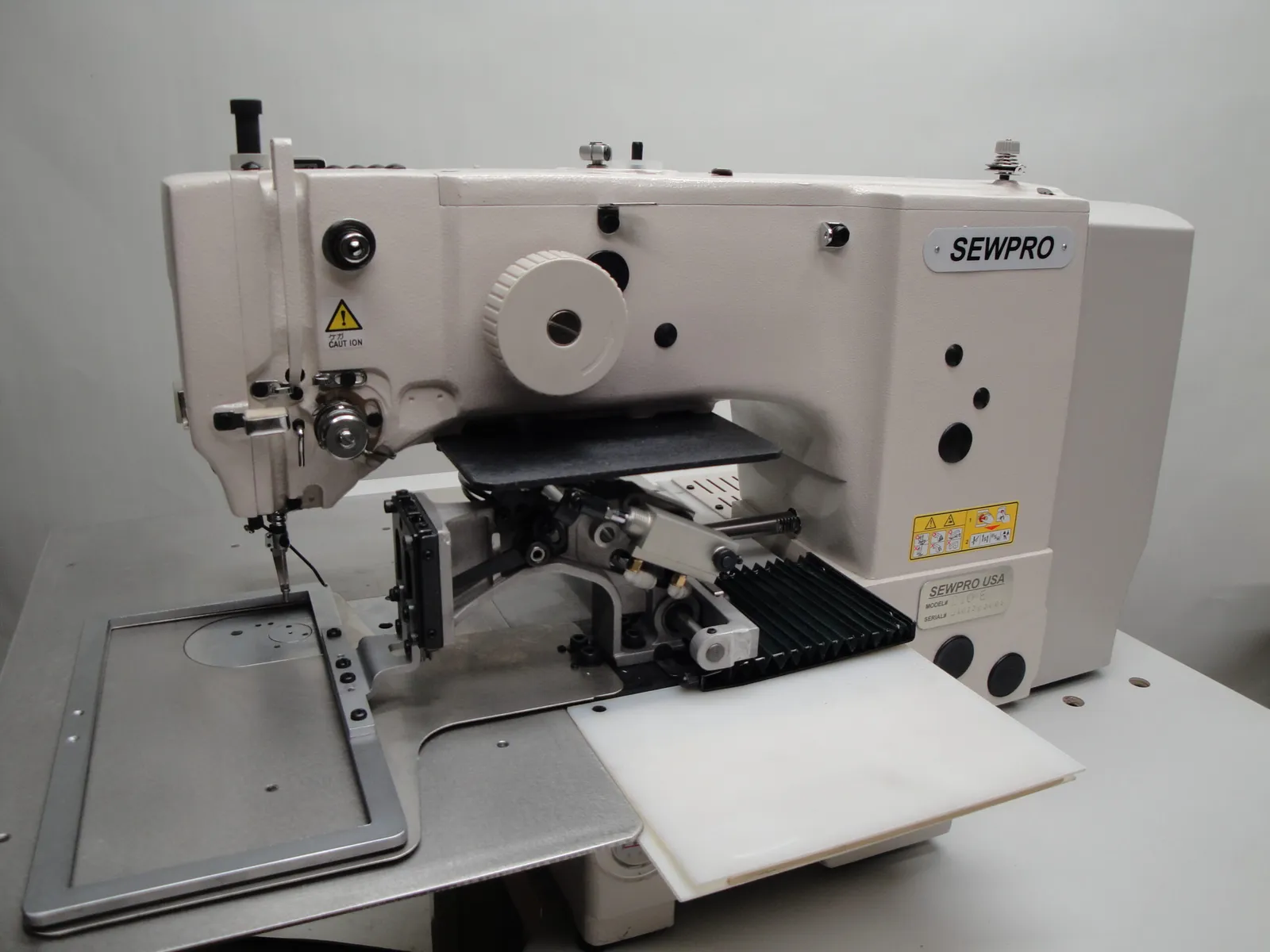

About the 210E-2210

The 210E-2210 is the larger-field member of the 210E family: 220 by 100mm, enough for a long label, a reinforcement pattern across a strap, a small decorative panel or a row of bartacks in one cycle. The CP-400 control programs on the machine and stores to USB, the stitch runs from 0.1 to 12.5mm, and it sews at up to 2,800 stitches per minute.

The clamp lifts 25mm and the jump foot stroke adjusts for thicker material. We show the label version, the 210L-2210, on video. It runs 135x17 needles from 90 to 140 and a 500W direct drive servo on 220V.

Also available: SEWPRO 210L-2210 automatic label sewing machine, on video.

Technical data: SEWPRO 210E-2210

Specifications

Specifications can change between production runs. Confirm the numbers that matter for your work when you order.

Machine Type	Programmable Pattern Sewing Machine
Control System	CP-400 with Onboard Programming
Sewing Area	220×100mm
Max Sewing Speed	2800 RPM (3mm Stitch or Less)
Stitch Length	0.1-12.5mm
Needle Bar Stroke	41.2mm
Needle System	135×17 (Sizes 90-140)
Feeding Frame Lift	25mm
Jump Foot Stroke	Standard: 0-3.5mm / Max: 0-7.0mm
Pattern Data Storage	USB Drive
Motor	500W Direct Drive Servo Motor
Power Supply	AC 220-240V Single Phase

Included in a SEWPRO quote

Head, table and stand
Servo motor, needle positioner where the head supports it
Feet, folders, clamps or guides for your product
A first box of Schmetz needles in the right system, point and size
Threaded, timed and sewn on your material before delivery
Delivery and installation in PA and nearby, freight elsewhere
1 year warranty, phone support for the life of the machine

Authorized Schmetz dealer

Needles at dealer prices

This machine takes Schmetz 135×17, sizes 90 to 140. We stock it in round and leather points, by the box of 100 or the 10-pack, and the first box goes out with the machine.

Needles and prices (717) 940-0129

Industries

Features

What is on the machine

Compact 220×100mm Sewing AreaIdeal for small to medium-size parts.
CP-400 Control SystemOnboard programming for fast setup and changes.
High-Speed OperationUp to 2800 RPM for shorter stitches.
USB Pattern StorageEasy data transfer and backup.
Adjustable Jump Foot StrokeSmooth material handling.
Direct Drive Servo MotorQuiet, efficient, and precise.

Applications

What gets sewn on the 210E-2210

Small reinforcement stitching on webbing
Apparel label and patch sewing
Leather and fabric accessory manufacturing
Sports gear and protective equipment
Automotive and marine interior components
Decorative stitching for small panels

Compare

210E-2210 against the alternatives

The models we would put next to it on the phone, and why.

SEWPRO 210E-1306
130 by 60mm field.
SEWPRO 2600-3020
300 by 200mm heavy-duty webbing machine.

Model	SEWPRO 210E-2210This machine	SEWPRO 210E-1306Programmable Pattern Sewing Machine (130x60mm) with CP520 Control	SEWPRO 2600-3020Heavy-Duty Programmable Sewing Machine for Webbing
Stitch length	0.1-12.5mm	0.5-12.5mm	12mm
Foot lift	25mm	25mm (Air)	Pneumatic
Thread sizes	On request	On request	92-346
Needle system	135×17 (Sizes 90-140)	135×17 (Sizes 90-140)	Schmetz 7×23 (Sizes 180-250)
Max speed	2800 RPM (3mm Stitch or Less)	2,500 RPM (at 3mm stitch length or less)	1000 RPM (Depends on Material and Thread)
Hook	On request	On request	Extra-Large Rotating Hook
Arm / post / field	220×100mm	130x60mm	300×200mm

Questions about the 210E-2210

What is the 210L-2210?

The label version with a label clamp, shown on video. Same head, different clamp.

Request a quote

SEWPRO 210E-2210

Tell us the material, how thick the stack gets, the thread you run and what you make. We will confirm the 210E-2210 fits or point you to the model that does, then quote it complete with a delivery date.
